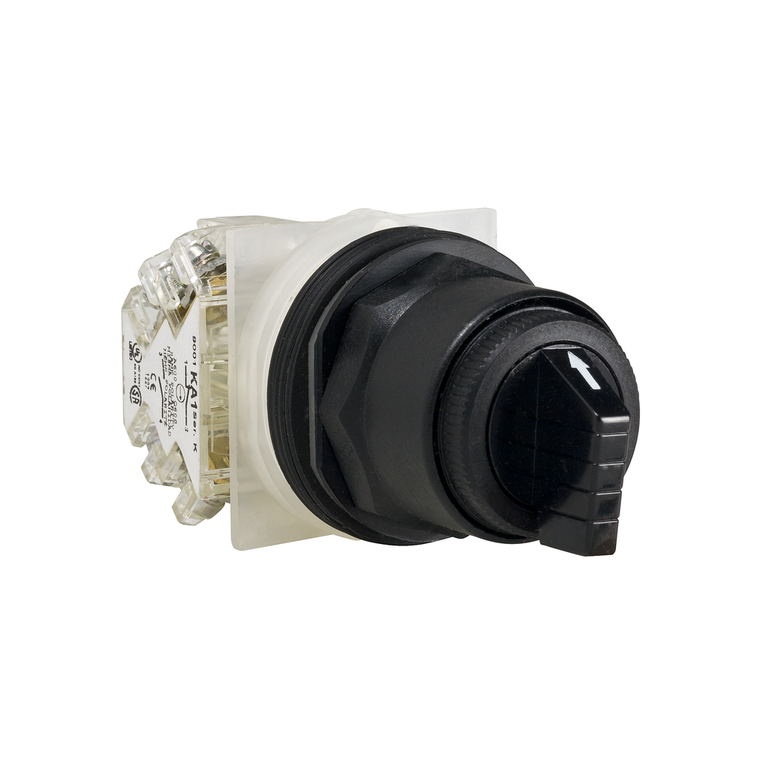

Schneider Electric 9001SKS44BH2 Selector Switch 600Vac 10A 30Mm Sk
SKU:
9001SKS44BH2
UPC:
785901287544
MPN:
Condition:
New
Toxic Heavy Metal Free:
Yes
Protective Treatment:
TC
Device Presentation:
complete product
Mounting Diameter:
30 mm
Operator Position Information:
3 positions
Range Of Product:
Harmony 9001SK
California Proposition 65:
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
Circularity Profile:
N/A
Ambient Air Temperature For Operation:
-25-70 °C
Cam Profile:
4
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Sustainable Offer Status:
Green Premium product
China Rohs Regulation:
X
Contacts Type And Composition:
2 C/O
Rohs Exemption Information:
Yes
Cap/Operator Or Lens Colour:
black
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Nema Degree Of Protection:
NEMA 1/2/3/3R/4/4X/6/12/13
Product Or Component Type:
selector switch
Type Of Operator:
stay put
Operator Profile:
standard handle
Warranty:
18 months
Ambient Air Temperature For Storage:
-40-70 °C
Reach Free Of Svhc:
Yes
Ip Degree Of Protection:
IP66 IEC 60529
Mercury Free:
Yes
Size:
30 mm
Product Certifications:
CE || UL listed file E42259 CCN NKCR || CSA LR24590 class 3211 03
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
This selector switch provides a versatile interface for controlling your machines It provides an effective manner to set your machine in various operating modes It is impact resistant, dust...
This selector switch is part of the range of control and signaling units, Harmony 9001SK diameter 30mm plastic. It has a double insulated bezel. It is supplied with a black standard knob. Thanks to...
This Harmony 9001SK, black selector switch with E cam has 2 positions and operates with a stay-put mechanism. It has a double insulated plastic bezel and uses screw-clamp terminals and has 1 x NO + 1...
