Schneider Electric 9001SKT1A31 Pilot Light 120Vac 30Mm Sk +Options
Schneider Electric
$197.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric 9001SKT1A31 Pilot Light 120Vac 30Mm Sk +Options

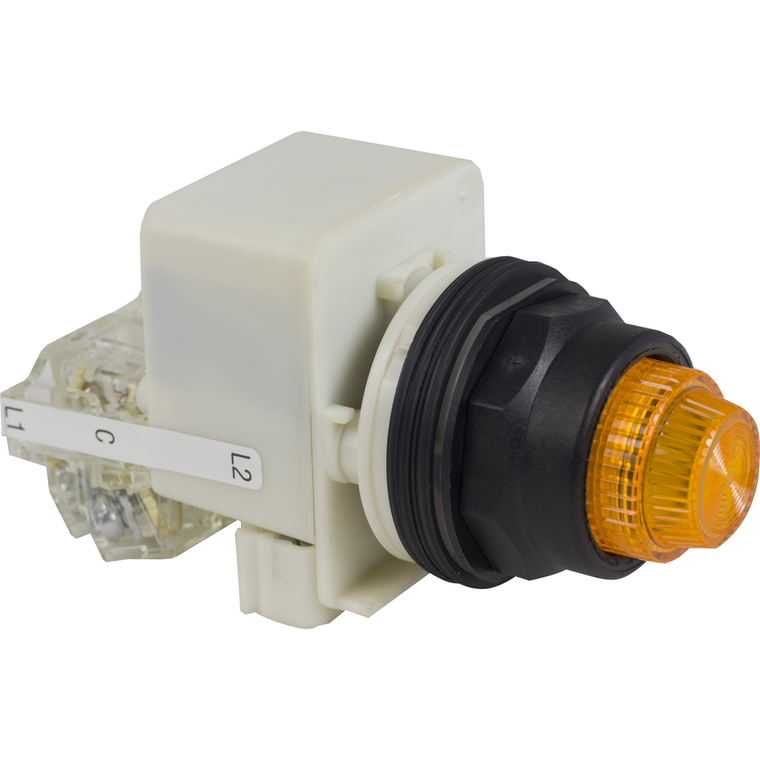

This illuminated yellow push-to-test pilot light with integral LED provides an ergonomic and visual interface for your machines It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits High performance International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 4X, 12 and 13)
- Reach Free Of Svhc:
- Yes
- Protective Treatment:
- TC
- [Us] Rated Supply Voltage:
- 110...120 V
- Sustainable Offer Status:
- Green Premium product
- Cap/Operator Or Lens Colour:
- amber
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Warranty:
- 18 months
- Environmental Disclosure:
- ENVPEP121111EN
- Supply Frequency:
- 50...60 Hz
- Contacts Type And Composition:
- 1 C/O
- Rohs Exemption Information:
- Yes
- Range Of Product:
- Harmony 9001SK
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Ip Degree Of Protection:
- IP66
- Operating Mode:
- push-to-test
- Light Source:
- incandescent bulb
- Lens Type:
- fresnel
- Shape Of Signaling Unit Head:
- round
- Bulb Base:
- BA 9s
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Lens Material:
- polycarbonate
- China Rohs Regulation:
- X
- Size:
- 30 mm
- Mounting Diameter:
- 30 mm
- Light Block Supply:
- via transformer 110 V AC 50/60 Hz || via transformer 120 V AC 50/60 Hz
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Mercury Free:
- Yes
- Bezel Material:
- plastic
- Product Or Component Type:
- push-to-test pilot light
- Lens Type:
- fresnel plastic
- Circularity Profile:
- ENVEOLI121107EN
- Toxic Heavy Metal Free:
- Yes
- Light Block Supply:
- via integral transformer
- Brochure:
- View
- Datasheet:
- View
