Schneider Electric 9001SKT1G31 Pilot Light 120Vac 30Mm Sk +Options
Schneider Electric
$197.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

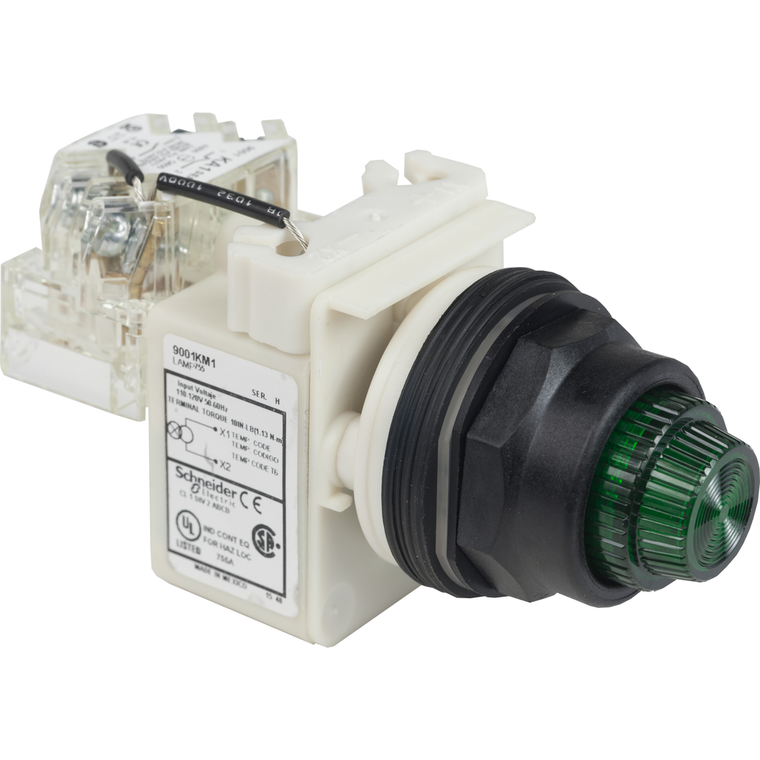

Schneider Electric 9001SKT1G31 Pilot Light 120Vac 30Mm Sk +Options
This illuminated green push-to-test pilot light with integral LED provides an ergonomic and visual interface for your machines It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color It is impact resistant, dust resistant, water resistant and vibration resistant, making it ideal for operation in harsh environments It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic High performance International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 4X, 12 and 13)
- Operating Mode:
- push-to-test
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Warranty:
- 18 months
- China Rohs Regulation:
- X
- Protective Treatment:
- TC
- [Us] Rated Supply Voltage:
- 110...120 V
- Lens Type:
- fresnel plastic
- Reach Free Of Svhc:
- Yes
- Light Block Supply:
- via integral transformer
- Toxic Heavy Metal Free:
- Yes
- Bulb Base:
- BA 9s
- Light Block Supply:
- via transformer 110 V AC 50/60 Hz || via transformer 120 V AC 50/60 Hz
- Contacts Type And Composition:
- 1 C/O
- Rohs Exemption Information:
- Yes
- Mounting Diameter:
- 30 mm
- Environmental Disclosure:
- ENVPEP121111EN
- Bezel Material:
- plastic
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Size:
- 30 mm
- Lens Material:
- polycarbonate
- Ip Degree Of Protection:
- IP66
- Circularity Profile:
- ENVEOLI121107EN
- Supply Frequency:
- 50...60 Hz
- Lens Type:
- fresnel
- Range Of Product:
- Harmony 9001SK
- Mercury Free:
- Yes
- Sustainable Offer Status:
- Green Premium product
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Shape Of Signaling Unit Head:
- round
- Product Or Component Type:
- push-to-test pilot light
- Cap/Operator Or Lens Colour:
- green
- Light Source:
- incandescent bulb
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
