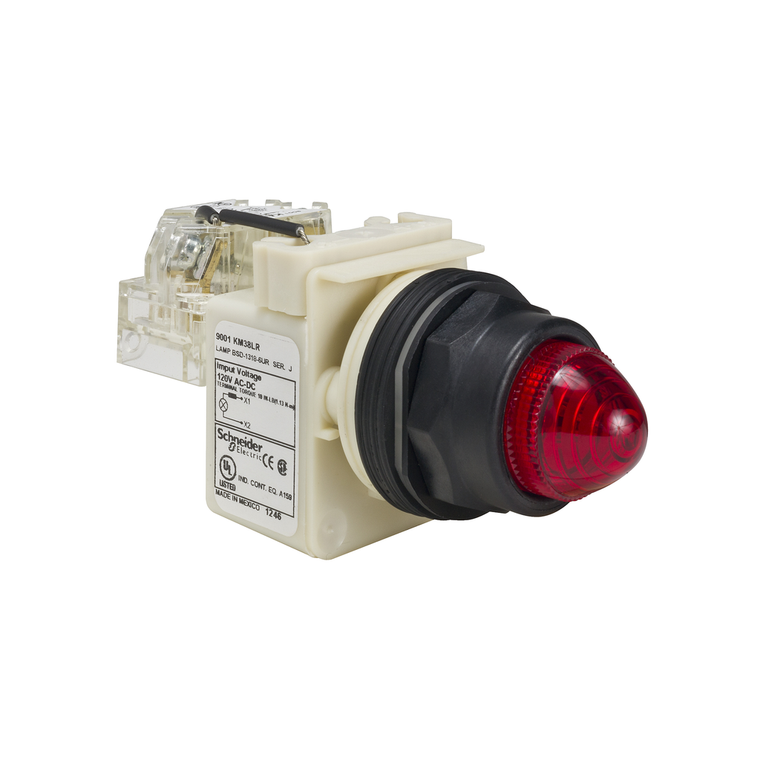

Schneider Electric 9001SKT38LRR9 Pilot Light 120V 30Mm Sk +Options
This illuminated red push-to-test pilot light with integral LED provides an ergonomic and visual interface for your machines It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color It works at a rated voltage of 120V. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections High performance International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 4X, 12 and 13)
- Lens Material:
- polycarbonate
- Mercury Free:
- Yes
- Range Of Product:
- Harmony 9001SK
- Cap/Operator Or Lens Colour:
- red
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Warranty:
- 18 months
- Protective Treatment:
- TC
- Shape Of Signaling Unit Head:
- round
- Rohs Exemption Information:
- Yes
- Light Source Colour:
- red
- Contacts Type And Composition:
- 1 C/O
- Environmental Disclosure:
- ENVPEP121113EN
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Operating Mode:
- push-to-test
- Sustainable Offer Status:
- Green Premium product
- Toxic Heavy Metal Free:
- Yes
- China Rohs Regulation:
- X
- Lens Type:
- domed
- Bulb Base:
- BA 9s
- Ip Degree Of Protection:
- IP66
- Bezel Material:
- plastic
- Lens Type:
- domed plastic
- Light Block Supply:
- direct 120 V
- [Us] Rated Supply Voltage:
- 120 V
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Size:
- 30 mm
- Product Or Component Type:
- push-to-test pilot light
- Light Source:
- Red LED
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Mounting Diameter:
- 30 mm
- Light Source:
- LED
- Circularity Profile:
- ENVEOLI121109EN
- Reach Free Of Svhc:
- Yes
