Schneider Electric 9001SKT7 30Mm Pilot Light Push To Test 220-240V
SKU:
9001SKT7
UPC:
785901837268
MPN:
Condition:
New
Ambient Air Temperature For Storage:
-40-70 °C
Cad Overall Depth:
42 mm
Light Block Supply:
via integral transformer
Range Of Product:
Harmony 9001SK
Ambient Air Temperature For Operation:
-25-70 °C
Shape Of Screw Head:
cross slotted
Warranty:
18 months
Toxic Heavy Metal Free:
Yes
Bezel Material:
plastic
China Rohs Regulation:
X
Net Weight:
0.181 kg
Tightening Torque:
0.8-0.8 N.m EN/IEC 60947-1
Protective Treatment:
TC
Bulb Base:
BA 9s
Device Short Name:
9001SK
Product Certifications:
UL 508 || NEMA
[Ui] Rated Insulation Voltage:
250 V 2)EN/IEC 60947-1
Supply Frequency:
50...60 Hz
Rohs Exemption Information:
Yes
Cad Overall Width:
54 mm
[Ith] Conventional Free Air Thermal Current:
0.416666666666667
[Us] Rated Supply Voltage:
220...240 V
Light Source:
incandescent
Shape Of Signaling Unit Head:
round
Ip Degree Of Protection:
IP66 IEC 60529
Electrical Shock Protection Class:
class II IEC 61140
[Us] Rated Supply Voltage:
220...240 V AC 50/60 Hz
Environmental Disclosure:
ENVPEP121111EN
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Contacts Type And Composition:
1 C/O
Cad Overall Height:
70 mm
Vibration Resistance:
7 gn 2-500 Hz)IEC 60068-2-6
Mounting Diameter:
30 mm
Shock Resistance:
50 gn IEC 60068-2-27
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Reach Regulation:
Free of Substances of Very High Concern above the threshold
[Uimp] Rated Impulse Withstand Voltage:
2.5 kV EN/IEC 60947-1
Operating Mode:
push-to-test
Connections - Terminals:
screw clamp terminals, 1 x 0.22...2 x 1.5 mm² EN/IEC 60947-1
Light Source:
incandescent bulb
Circularity Profile:
ENVEOLI121107EN
Mercury Free:
Yes
California Proposition 65:
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
Standards:
JIS C8201-5-1 || EN/IEC 60947-5-4 || EN/IEC 60947-1 || CSA C22.2 No 14 || JIS C 852 || UL 508 || EN/IEC 60947-5-1 || JIS C8201-1
Short-Circuit Protection:
10 A cartridge fuse EN/IEC 60947-5-1
Light Block Supply:
via integral transformer 220...240 V AC 50/60 Hz 6 V)
Nema Degree Of Protection:
NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 4X

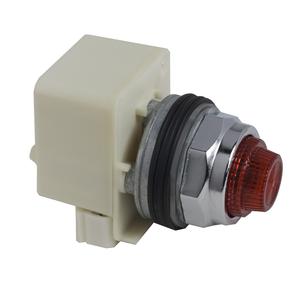

This Harmony 9001K, red pilot light with integral LED and plastic dome is supplied with 240V AC. It has a chromium-plated metal bezel. This single component pilot light provides clear visual feedback...
