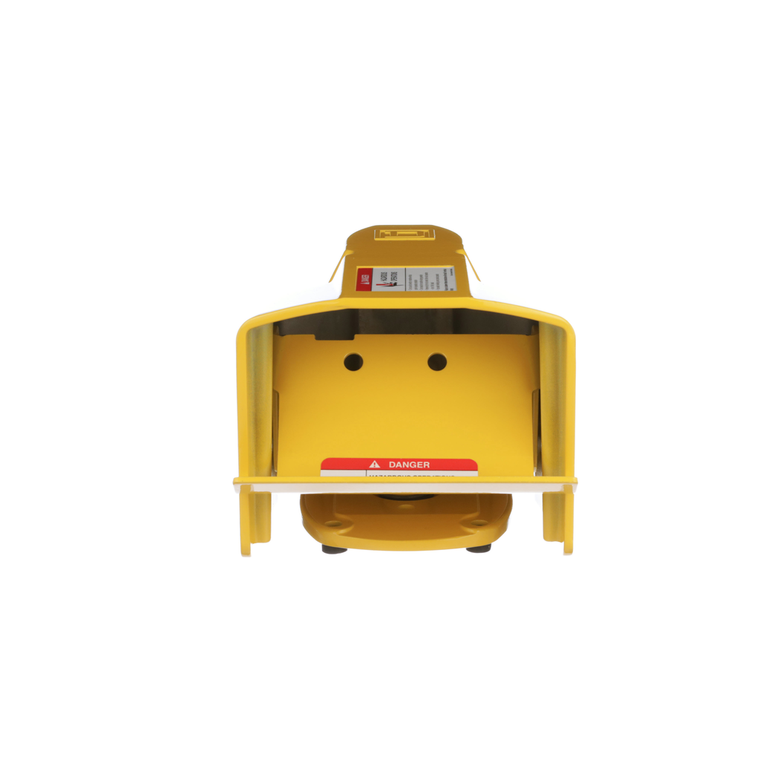

Schneider Electric 9002AW117 Foot Switch 600Vac 5Amp +Options
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
9002AW NEMA industrial foot switches are heavy duty devices to be used to control many industrial processes, while leaving the operator's hands free to perform other functions. The type or model of foot switch suitable for each application will vary depending on many factors. This foot switch has an oversized pedal shield, side shields and a safety door. The single pole double throw snap switch used for the foot switch contact is rated at 5A resistive at 600 VAC. For other contact ratings, refer to the catalog. Snap switch contains two double break contact elements (1 N.O. and 1 N.C.) that must be used on circuits of same polarity. Foot switch has an enclosure rating of NEMA 2, 4 and 13. The cable entry for this foot switch has a 0.75 inch NPT conduit tread. Foot switch is UL listed and CSA certified. Foot switch is UL listed and CSA certified.
- Device Composition:
- oversized pedal shield || safety door || side shield
- Nema Degree Of Protection:
- NEMA 2/4/13
- Product Certifications:
- UL Listed || CSA
- Warranty:
- 18 months
- [Ue] Rated Operational Voltage:
- 600 V AC/DC
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Range Of Product:
- 9002AW
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- China Rohs Regulation:
- X
- Environmental Disclosure:
- ENVPEP121009EN
- Circularity Profile:
- N/A
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Sustainable Offer Status:
- Green Premium product
- Depth:
- 217 mm
- Contact Operation:
- 1 step
- Width:
- 163 mm
- Height:
- 159 mm
- Cable Entry:
- 0.75 inch NPT conduit entrance
- Switch Function:
- SPDT
- Type Of Operator:
- spring return
- Rohs Exemption Information:
- Yes
- Product Or Component Type:
- foot switch
- Mercury Free:
- Yes
