Schneider Electric 9002AW134 Foot Switch 600Vac 5Amp +Options
Schneider Electric
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies

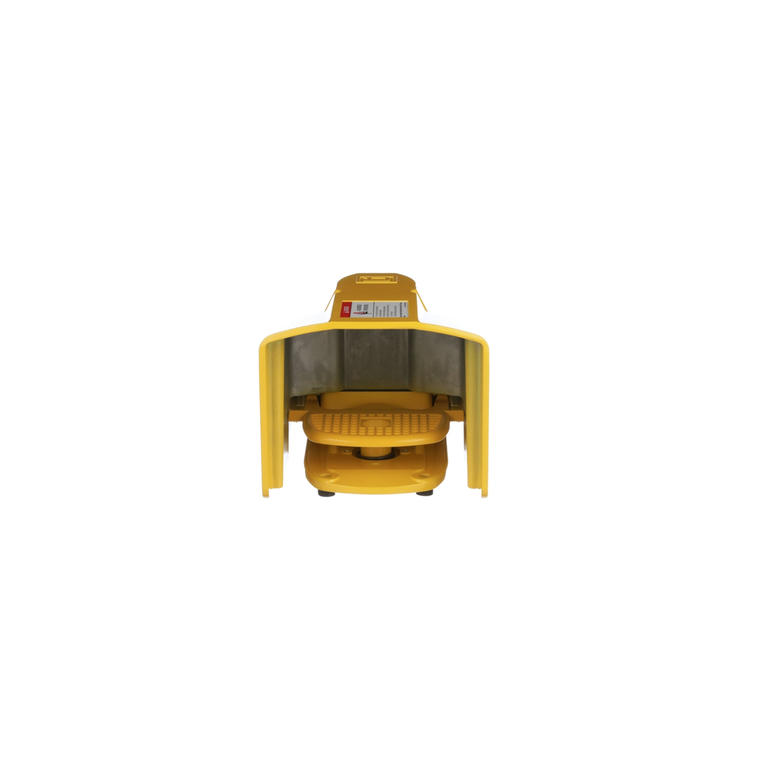

9002AW NEMA industrial foot switches are heavy duty devices to be used to control many industrial processes, while leaving the operator's hands free to perform other functions. The type or model of foot switch suitable for each application will vary depending on many factors. This foot switch has oversized pedal and side shields. The single pole double throw snap switch used for each stage of this foot switch contact is rated at 5A resistive at 600 VAC. For other contact ratings, refer to the catalog. The snap switch for each stage contains two double break contact elements (1 N.O. and 1 N.C.) that must be used on circuits of same polarity. Foot switch has an enclosure rating of NEMA 2, 4 and 13. The cable entry for this foot switch has a 0.75 inch NPT conduit tread. Foot switch is UL listed and CSA certified. Foot switch is UL listed and CSA certified.
- Depth:
- 217 mm
- Device Composition:
- oversized pedal shield || side shield
- Cable Entry:
- 0.75 inch NPT conduit entrance
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- [Ue] Rated Operational Voltage:
- 600 V AC/DC
- Range Of Product:
- 9002AW
- Nema Degree Of Protection:
- NEMA 2/4/13
- Switch Function:
- SPDT per step
- Warranty:
- 18 months
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Width:
- 163 mm
- Environmental Disclosure:
- ENVPEP121009EN
- Circularity Profile:
- N/A
- Product Certifications:
- CSA || UL Listed
- Product Or Component Type:
- foot switch
- Mercury Free:
- Yes
- Height:
- 159 mm
- China Rohs Regulation:
- X
- Type Of Operator:
- spring return
- Contact Operation:
- 2 steps
- Rohs Exemption Information:
- Yes
- Sustainable Offer Status:
- Green Premium product
- Catalog:
- View
- Datasheet:
- View
- QN-QUOTE-REQUEST:
- true
