Schneider Electric 9002AW14 Foot Switch 600Vac .6Amp +Options

Schneider Electric 9002AW14 Foot Switch 600Vac .6Amp +Options

Schneider Electric
SKU:
9002AW14
|
UPC:
785901817413
Availability:
Contact us to confirm availability and lead times.
$527.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description

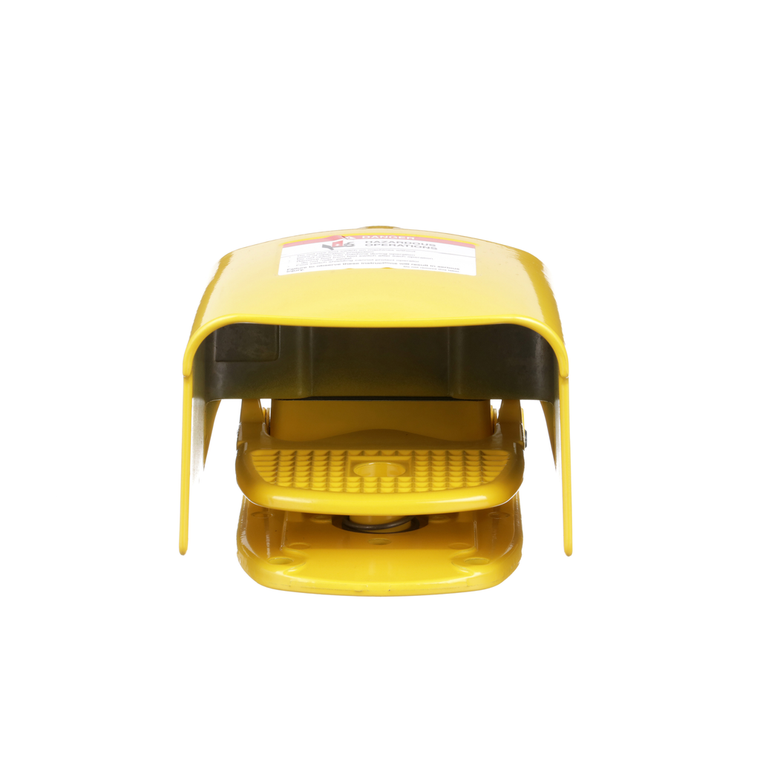

9002AW NEMA industrial foot switches are heavy duty devices to be used to control many industrial processes, while leaving the operator's hands free to perform other functions. The type or model of foot switch suitable for each application will vary depending on many factors. This foot switch has pedal and side shields. The two pole double throw snap switch used for this foot switch contact is rated at 0.6A resistive at 600 VAC. For other contact ratings, refer to the catalog. The double pole double throw snap switch contains two electrically separated sets of contact elements allowing use on circuits of opposite polarity. Foot switch has an enclosure rating of NEMA 2, 4 and 13. The cable entry for this foot switch has a 0.75 inch NPT conduit tread. Foot switch is UL listed and CSA certified.
Additional Information
Switch Function:
DPDT
Height:
123 mm
Sustainable Offer Status:
Green Premium product
Rohs Exemption Information:
Yes
Nema Degree Of Protection:
NEMA 2/4/13
China Rohs Regulation:
X
Range Of Product:
9002AW
Type Of Operator:
spring return
Circularity Profile:
N/A
Mercury Free:
Yes
Warranty:
18 months
Depth:
229 mm
Cable Entry:
0.75 inch NPT conduit entrance
[Ue] Rated Operational Voltage:
600 V AC/DC
Device Composition:
side shield || pedal shield
Width:
137 mm
California Proposition 65:
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Environmental Disclosure:
ENVPEP121009EN
Product Or Component Type:
foot switch
Contact Operation:
1 step
Product Certifications:
UL Listed || CSA
