Schneider Electric 9002AW123 Foot Switch 600Vac 10Amp +Options
Schneider Electric
Schneider Electric 9002AW21 Foot Switch 600Vac 10Amp +Options
Schneider Electric
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies

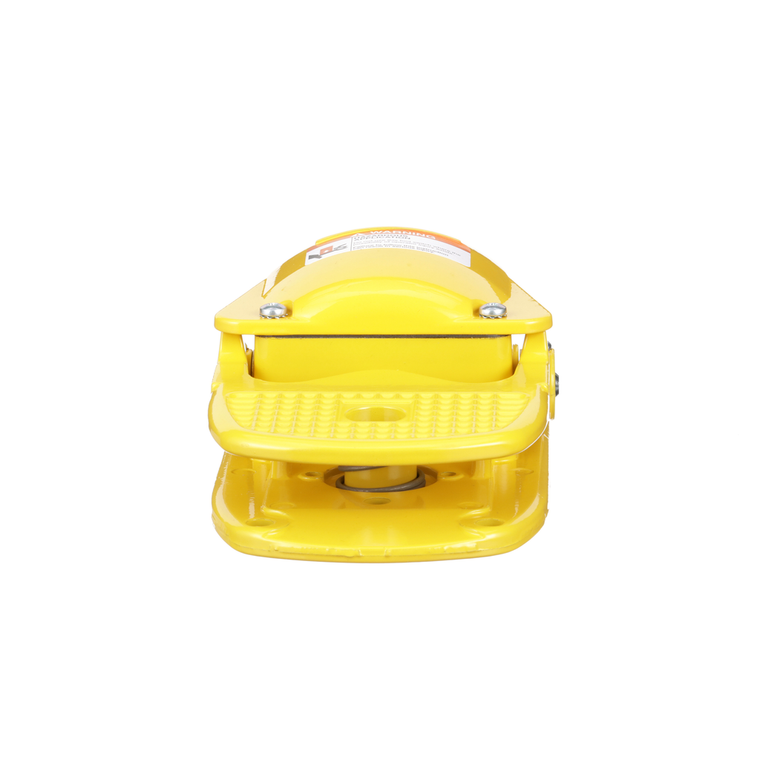

9002AW NEMA industrial foot switches are heavy duty devices to be used to control many industrial processes, while leaving the operator's hands free to perform other functions. The type or model of foot switch suitable for each application will vary depending on many factors. This foot switch has no shielding. The two double pole double throw snap switches used for the contacts of this foot switch are rated at 10A resistive at 600 VAC. For other contact ratings, refer to the catalog. Each of the double pole double throw snap switch contains two electrically separated sets of contact elements allowing use on circuits of opposite polarity. Foot switch has an enclosure rating of NEMA 2, 4 and 13. The cable entry for this foot switch has a 0.75 inch NPT conduit tread. Foot switch is UL listed and CSA certified.
- Height:
- 99 mm
- China Rohs Regulation:
- X
- Nema Degree Of Protection:
- NEMA 2/4/13
- Type Of Operator:
- spring return
- Environmental Disclosure:
- ENVPEP121009EN
- Rohs Exemption Information:
- Yes
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Switch Function:
- SPDT per step
- Depth:
- 216 mm
- Mercury Free:
- Yes
- Device Composition:
- unshielded
- Width:
- 114 mm
- Cable Entry:
- 0.75 inch NPT conduit entrance
- Range Of Product:
- 9002AW
- Contact Operation:
- 4 steps
- Circularity Profile:
- N/A
- Sustainable Offer Status:
- Green Premium product
- Product Certifications:
- UL Listed || CSA
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- [Ue] Rated Operational Voltage:
- 600 V AC/DC
- Warranty:
- 18 months
- Product Or Component Type:
- foot switch
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Catalog:
- View
- Datasheet:
- View
- QN-QUOTE-REQUEST:
- true
