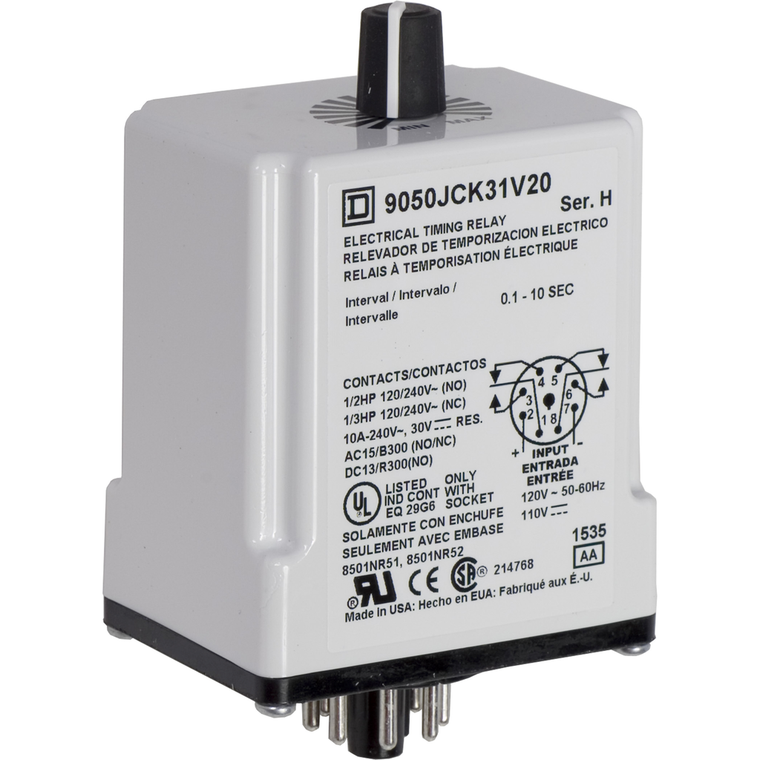

Schneider Electric 9050JCK31V20 Timer Relay 240Vac 10A Type Jck

Schneider Electric 9050JCK31V20 Timer Relay 240Vac 10A Type Jck

Schneider Electric
SKU:
9050JCK31V20
|
UPC:
785901032809
Availability:
Contact us to confirm availability and lead times.
$78.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
9050JCK plug in timers are designed to provide low cost timing in a plug in housing. This timer has an interval timing mode. When the input voltage is applied to the timer, the timer relay contacts change state immediately and the timing cycle begins. When the time delay is complete, or when the input voltage is removed, contacts return to shelf state. The timing range of 0.1 to 10 seconds is easily adjustable with a knob on the top of the timer. This plug in timer plugs into an 8501NR51 or 8501NR52 relay socket. These relay sockets can be mounted on 35 mm DIN 3 mounting track or directly to a panel. All wiring is made to the relay socket. The DPDT contacts are rated 10 amperes resistive at 120 VAC, 240 VAC and 30 VDC, 3 amperes inductive at 120 VAC, 240 VAC and 30 VDC, 1/3 HP on the NC contacts at 120 VAC and 240 VAC, 1/2 HP on the NO contacts at 120 VAC and 240 VAC. This plug in timer is powered up with 120 VAC / 110 VDC. 9050JCK plug in timers are UL listed when the proper 8501NR relay socket is used, UL component recognized and CSA certified. 9050JCK plug in timers are UL listed when the proper 8501NR relay socket is used, UL component recognized and CSA certified.
Additional Information
Width:
43 mm
Hold-In Power Consumption In Va:
2-2 VA
Time Delay Range:
0.1...10 s
Product Compatibility:
8501NR52 || 8501NR51
Warranty:
18 months
Maximum Switching Voltage:
240 V AC
Product Certifications:
CE || UL Recognized || UL Listed
Switch Function:
DPDT
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Shape Of Pin:
tubular
Toxic Heavy Metal Free:
Yes
Rohs Exemption Information:
Yes
Range Of Product:
9050JCK
Circularity Profile:
ENVEOLI1406037EN
Contacts Type And Composition:
2 NO + 2 NC
Contacts Material:
silver nickel
Sustainable Offer Status:
Green Premium product
Height:
61 mm
China Rohs Regulation:
X
Depth:
104 mm
[Uc] Control Circuit Voltage:
120 V AC || 110 V DC
Reach Free Of Svhc:
Yes
Mounting Support:
socket
Ambient Air Temperature For Operation:
-18-150 °F
Time Delay Type:
interval
Environmental Disclosure:
ENVPEP1406037EN
Mercury Free:
Yes
Pin Number:
8
Line Rated Current:
0.416666666666667
Product Or Component Type:
timer
Reach Regulation:
Free of Substances of Very High Concern above the threshold
