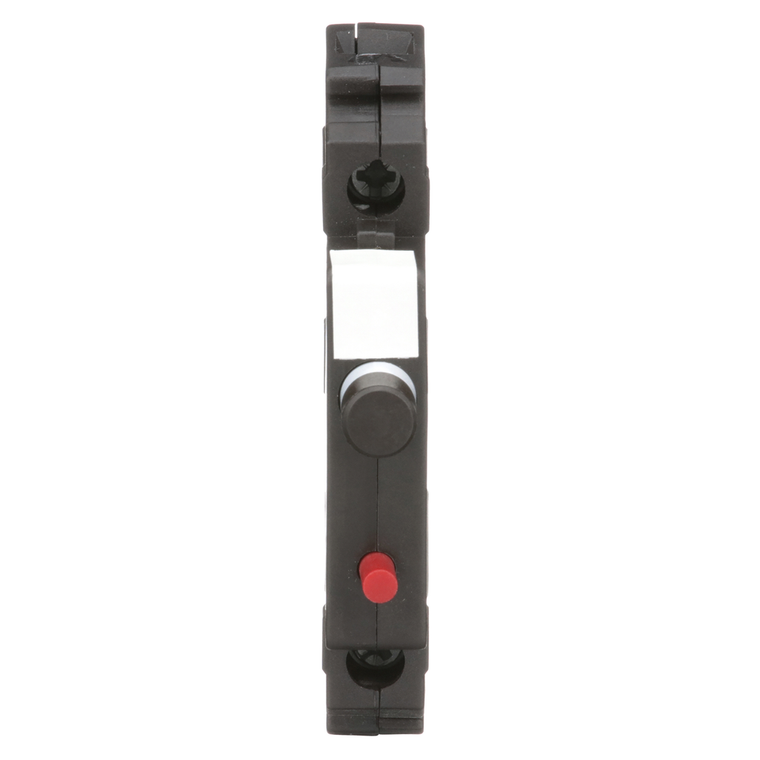

Schneider Electric 9080GCB100 Circuit Protector 250V 10A Type Nema

(No reviews yet) Write a Review

Write a Review

Schneider Electric 9080GCB100 Circuit Protector 250V 10A Type Nema

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

9080GCB100

UPC:

785901481010

MPN:

Condition:

New

Availability:

Schneider orders under $1250 will incur a $60 processing fee at checkout

Poles Description:

1P

Product Certifications:

CE || UL recognized E233026 CCN QVNU2 || CSA file 025490 class 3211 07

Reach Free Of Svhc:

Yes

Protection Type:

overcurrent

Ambient Air Temperature For Operation:

-22-140 °F

Range Of Product:

9080GCB

Electrical Connection:

box lugs

Mercury Free:

Yes

[Ue] Rated Operational Voltage:

65 V DC || 125 V AC

Line Rated Current:

0.416666666666667

Eu Rohs Directive:

Compliant with Exemptions

Temperature For Tripping:

70 °F

Warranty:

18 months

Width:

3.15 in

Standards:

CSA C22.2 No 235 || UL 1077 || DIN 57470

Rohs Exemption Information:

Yes

Height:

3.45 in

Device Application:

Industrial Application

Mounting Support:

9080GH track || 35 mm DIN rail

Contact Operation:

trip-free

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Wire Stripping Length:

0.5 in

Awg Gauge:

AWG 16...AWG 10 copper

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Product Or Component Type:

Circuit Protector

Tightening Torque:

control circuit 7-7 lbf.in cage type connector

Depth:

0.5 in

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Wiring Device Additional Information:

factory wiring only

Trip Unit Technology:

thermal-magnetic
