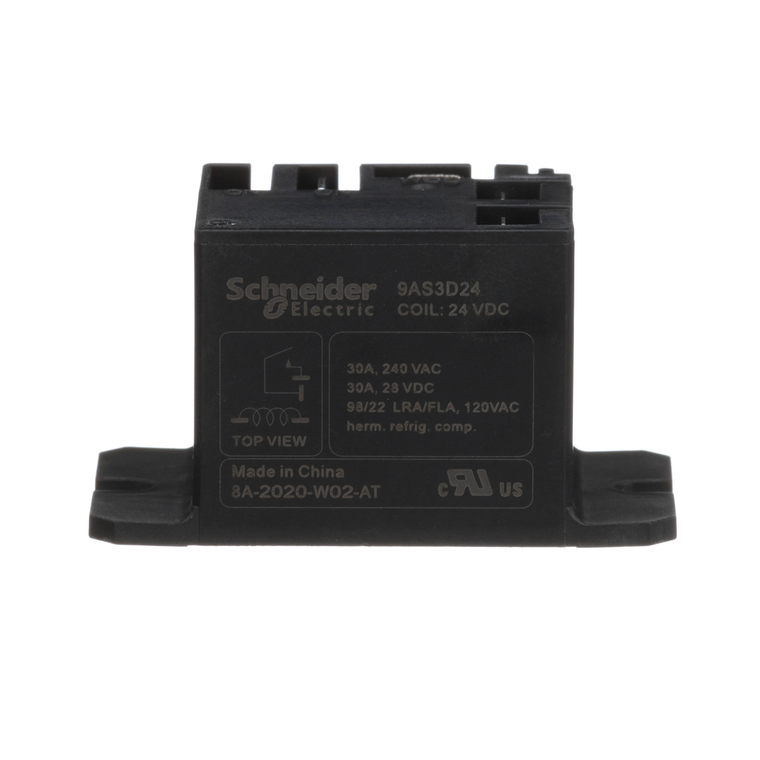

Schneider Electric 9AS3D24 Electromechnical Power Relays, 24Vdc Pack of 10

SKU:

9AS3D24

UPC:

3606489915292

MPN:

Condition:

New

Control Circuit Voltage Limits:

0.8...1.1 Uc

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Contacts Type And Composition:

NO

Shock Resistance:

10 gn operating || 100 gn not operating

Reset Time:

10 ms

Range Of Product:

Harmony

Switch Function:

SPST

Sustainable Offer Status:

Green Premium product

Rated Power In Va:

470 VA at 240 V on pilot duty

[Uc] Control Circuit Voltage:

24 V DC

Pollution Degree:

3

Circularity Profile:

ENVEOLI2006003EN

Height:

50 mm

Operating Position:

any position

Phenolic Free Solution:

Yes

Toxic Heavy Metal Free:

Yes

Drop-Out Voltage Threshold:

>= 0.1 Uc

Ambient Air Temperature For Operation:

-40-40 °C

Electrical Durability:

100000 cycles, 30 A at 240 V, AC-1 || 50000 cycles for resistive load, 30 A at 28 V, DC || 100000 cycles for resistive load, 24 A at 240 V, AC || 30000 cycles for full load, 22 A at 120 V, AC-8a || 1000 cycles for motor load || 6000 cycles for ballas

[Ui] Rated Insulation Voltage:

320 V

Input Current:

30 A

Silicon Free:

Yes

Average Resistance:

660 Ohm at 23 °C +/- 10 %

Lead Free:

Yes

Average Coil Consumption:

0.9 W

Vibration Resistance:

+/- 0.75 mm 10-55 Hz operating || +/- 0.75 mm 10-55 Hz not operating

Maximum Switching Voltage:

277 V AC || 28 V DC

Width:

27.3 mm

[Uimp] Rated Impulse Withstand Voltage:

4 kV 1.2/50 µs

Reach Free Of Svhc:

Yes

Environmental Disclosure:

ENVPEP2006003EN

Product Certifications:

UL

Contacts Material:

silver alloy contacts

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

China Rohs Regulation:

X

Network Frequency:

50-60 Hz

Rated Power In Hp:

1 hp at 125 V AC || 2 hp at 250 V AC

Connections - Terminals:

Faston terminals contact terminal AWG 12...AWG 10, connection size: 6.35 x 0.8 mm || Faston terminals coil terminal AWG 22...AWG 14, connection size: 4.8 x 0.5 mm

Pvc Free:

Yes

Mechanical Durability:

10000000 cycles

Product Or Component Type:

power relay

Ambient Air Temperature For Storage:

-40-85 °C

Net Weight:

0.032 kg

Mounting Support:

panel flange

Depth:

27.8 mm

Mercury Free:

Yes

Dielectric Strength:

2500 V AC between coil and contact || 1500 V between contacts with micro disconnection

Standards:

UL 60947-4-1

Minimum Switching Capacity:

5 W at 1 A, 5 V DC || 12 VA at 1 A, 12 V AC

Operating Time:

20 ms

[Ie] Rated Operational Current:

30 A at 240 V AC-1 || 30 A at 28 V DC (on resistive load) || 24 A at 240 V AC (on resistive load) || 98 A at 120 V AC-8a (locked rotor) || 22 A at 120 V AC-8a (full load) || 10 A at 277 V AC-5a (ballast)

Protection Category:

RT III

Eu Rohs Directive:

Compliant

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Rohs Exemption Information:

Yes

Catalog:

View

Datasheet:

View
