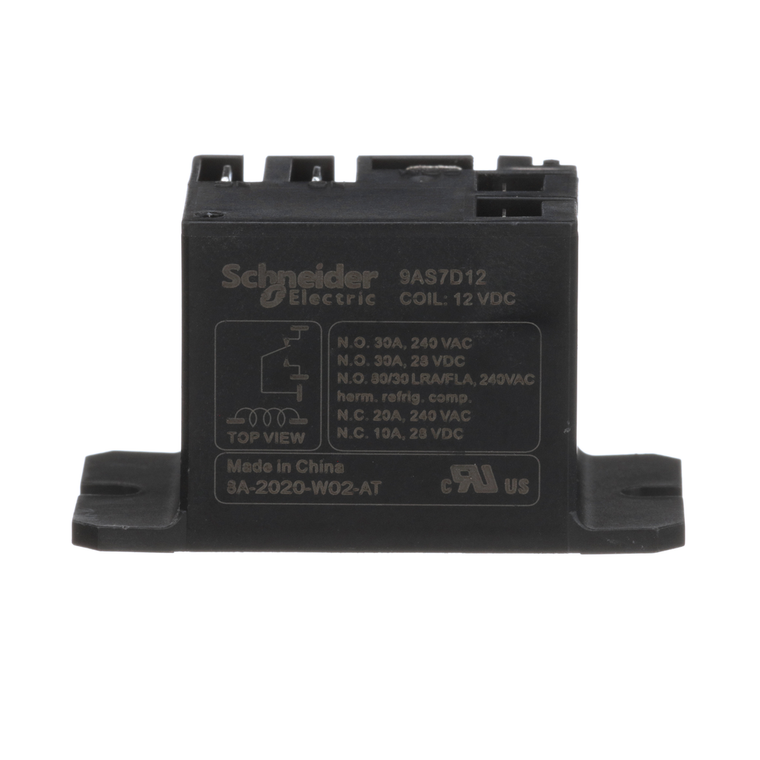

Schneider Electric 9AS7D12 Electromechnical Power Relays, 12Vdc Pack of 10
SKU:
9AS7D12
UPC:
3606489915360
MPN:
Condition:
New
Phenolic Free Solution:
Yes
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
[Ui] Rated Insulation Voltage:
320 V
Mechanical Durability:
10000000 cycles
Network Frequency:
50-60 Hz
Environmental Disclosure:
ENVPEP2006003EN
Silicon Free:
Yes
Dielectric Strength:
2500 V AC between coil and contact || 1500 V between contacts with micro disconnection
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Eu Rohs Directive:
Compliant
Minimum Switching Capacity:
5 W at 1 A, 5 V DC || 12 VA at 1 A, 12 V AC
Product Certifications:
UL
Pvc Free:
Yes
Drop-Out Voltage Threshold:
>= 0.1 Uc
Depth:
27.8 mm
Operating Time:
20 ms
Electrical Durability:
100000 cycles, 30 A at 240 V, AC-1 NO || 50000 cycles for resistive load, 30 A at 28 V, DC NO || 30000 cycles for full load, 22 A at 120 V, AC-8a NO || 30000 cycles for full load, 30 A at 240 V, AC-8a NO || 1000 cycles for motor load NO || 6000 cycle
Vibration Resistance:
+/- 0.75 mm 10-55 Hz operating || +/- 0.75 mm 10-55 Hz not operating
Pollution Degree:
3
Reset Time:
10 ms
Range Of Product:
Harmony
Average Coil Consumption:
0.9 W
China Rohs Regulation:
X
Rated Power In Hp:
1 hp at 125 V AC, NO || 2 hp at 250 V AC, NO || 0.25 hp at 125 V AC, NC || 0.5 hp at 250 V AC, NC
Net Weight:
0.032 kg
Width:
27.3 mm
Ambient Air Temperature For Storage:
-40-85 °C
Switch Function:
SPDT
Mercury Free:
Yes
Contacts Material:
silver alloy contacts
Shock Resistance:
10 gn operating || 100 gn not operating
Reach Free Of Svhc:
Yes
Standards:
UL 60947-4-1
Height:
50 mm
Circularity Profile:
ENVEOLI2006003EN
Product Or Component Type:
power relay
Protection Category:
RT III
Lead Free:
Yes
[Ie] Rated Operational Current:
30 A at 240 V AC-1 (NO) || 20 A at 240 V AC-1 (NC) || 30 A at 28 V DC (NO) (on resistive load) || 10 A at 28 V DC (NC) (on resistive load) || 22 A at 120 V AC-8a (NO) (full load) || 98 A at 120 V AC-8a (NO) (locked rotor) || 30 A at 240 V AC-8a (NO)
[Uimp] Rated Impulse Withstand Voltage:
4 kV 1.2/50 µs
Connections - Terminals:
Faston terminals contact terminal AWG 12...AWG 10, connection size: 6.35 x 0.8 mm || Faston terminals coil terminal AWG 22...AWG 14, connection size: 4.8 x 0.5 mm
[Uc] Control Circuit Voltage:
12 V DC
Toxic Heavy Metal Free:
Yes
Control Circuit Voltage Limits:
0.8...1.1 Uc
Average Resistance:
155 Ohm at 23 °C +/- 10 %
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Maximum Switching Voltage:
277 V AC || 28 V DC
Mounting Support:
panel flange
Sustainable Offer Status:
Green Premium product
Ambient Air Temperature For Operation:
-40-40 °C
Rohs Exemption Information:
Yes
Rated Power In Va:
470 VA at 240 V, NO on pilot duty || 275 VA at 240 V, NC on pilot duty
