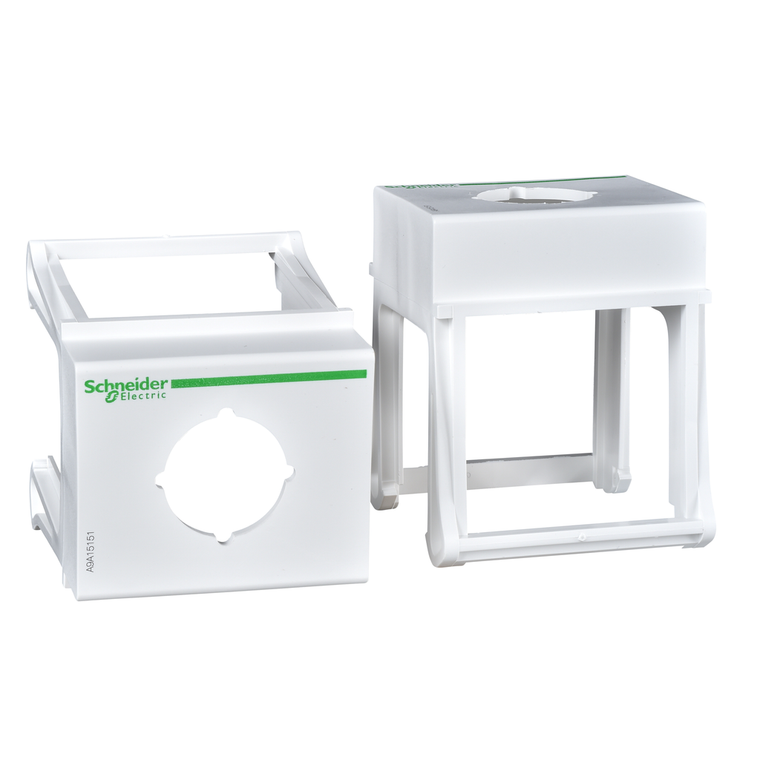

Schneider Electric A9A15151 Base For Diam.22 Control/Signall

Schneider Electric A9A15151 Base For Diam.22 Control/Signall

Schneider Electric
SKU:
A9A15151
|
UPC:
3606480377020
Availability:
Contact us to confirm availability and lead times.
$8.90
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This Acti9 button holder is for buttons, switches and indicators with metal or plastic flange of the SE XB4, XB5 type. It is dedicated to 22mm diameter button for control and signalling units. It could be used for control and indications auxiliaries as push-buttons, emergency stops, switches, light indicators. It is suitable for tertiary and industrial applications. It can be attached to a symmetrical 35mm rail, in modular cabinets or enclosures. The color is white (RAL9003). The drilling diameter is 22.3mm. It is a self-extinguishing material. The width in 9mm pitches is 6. The dimensions are (W) 54mm x (H) 60mm x (D) 66,7mm.
Additional Information
Net Weight:
0.04 kg
Quantity Per Set:
set of 1
Mercury Free:
Yes
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Drilling Diameter:
22.3 mm
Warranty:
18 months
China Rohs Regulation:
Pro-active China RoHS declaration (out of China RoHS legal scope)
Mounting Support:
35 mm symmetrical rail
Control Button Component Destination:
command unit
Product Compatibility:
XB4 || XB5
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Button And Pilot Light Accessory Type:
mounting support on DIN rail
Range Of Product:
Harmony XB4 || Harmony XB5 || Modicon M221
Colour Tint:
white
Fixing Mode:
by clips
Material:
insulated material
Reach Free Of Svhc:
Yes
Internal Depth:
60 mm
Rohs Exemption Information:
Yes
Mounting Location:
enclosure || in cabinet
Range:
Acti9
9 Mm Pitches:
6
Diameter:
22 mm
Toxic Heavy Metal Free:
Yes
Colour Code:
RAL 9003
