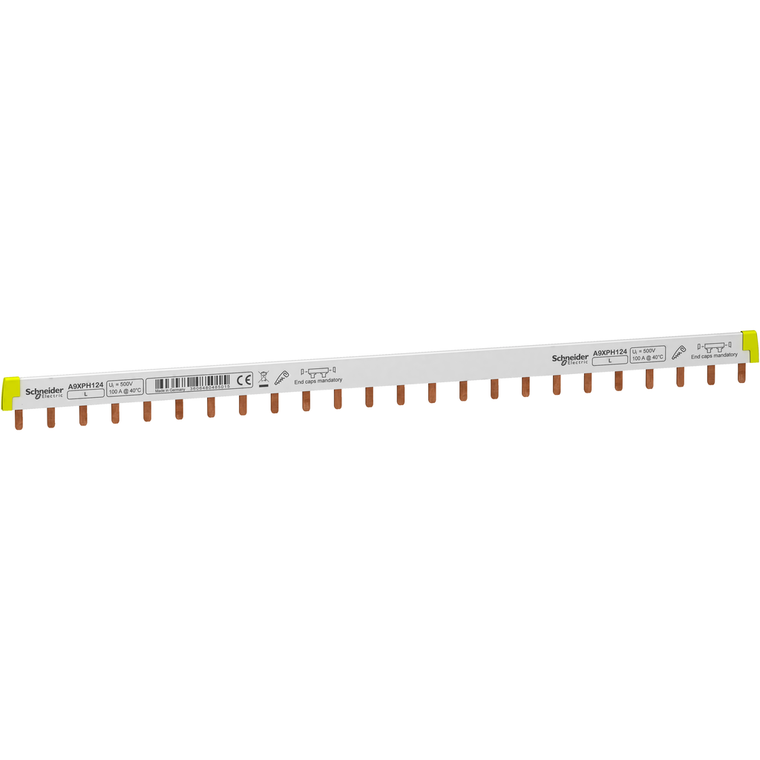

Schneider Electric A9XPH124 Acti9 Comb Busbar 1P 100A 24 Modules Pack of 10

Schneider Electric A9XPH124 Acti9 Comb Busbar 1P 100A 24 Modules Pack of 10

Schneider Electric
SKU:
A9XPH124
|
UPC:
3606480485015
$510.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
This Acti9 product is a cuttable horizontal comb busbar 24 modules for Acti9 iC60 or Acti9 iK60. It is dedicated to 1L installations. The type is L (Line). It is a set of 1 device. It is suitable for 24 devices (1P). The length is 430mm.The total number of modules of 18mm is 24. The pin cross section is 16mm2. The type of electric connection is PIN. The number of phase is 1. The number of poles is 1. The Ie rated operational current at 40°C is 100A. The Isc short circuit current is compatible with the breaking capacity of Schneider Electric circuit breakers. The Ui rated insulation voltage is 500VAC. The Ue rated operational voltage is 415VAC. The color of the device is white RAL9003. The pollution degree is 3. According to IEC 60695-2-1 standard the fire resistance is self-extinguishing at 960°C within 30s. It complies with IEC 60947-7-1 and IEC 61439-2 standards.
Additional Information
Device Presentation:
cuttable
Eu Rohs Directive:
Compliant
Accessory / Separate Part Category:
connection accessory
Rohs Exemption Information:
Yes
Product Or Component Type:
comb busbar
Width:
430 mm
Standards:
IEC 60947-7-1 || IEC 61439-2
[Ue] Rated Operational Voltage:
415 V AC
Mercury Free:
Yes
Poles Configuration For 1 Way:
1 x 1P
Environmental Disclosure:
ENVPEP2005011
China Rohs Regulation:
Pro-active China RoHS declaration (out of China RoHS legal scope)
Total Number Of 18 Mm Modules:
24
Range:
Acti9
Circularity Profile:
N/A
Fire Resistance:
960 °C 30 s ) IEC 60695-2-1
Number Of Ways:
24 ways 1 L
Range Compatibility:
Acti 9 Acti9 iC60 || Acti 9 Acti9 iK60 || Acti 9 Acti9 iID || Acti 9 Acti9 iID K || Acti 9 Acti9 iSW || Acti 9 Acti9 iSW-NA || Multi9 Multi9 C60
Toxic Heavy Metal Free:
Yes
Ip Degree Of Protection:
IP20 with end-pieces and tooth covers
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Color:
White RAL 9003)
[Ie] Rated Operational Current:
100 A 40 °C
Pollution Degree:
3 IEC 60947-7-1
Insulation:
insulated
Reach Free Of Svhc:
Yes
9 Mm Pitches:
48
Sustainable Offer Status:
Green Premium product
Connector Type:
tooth
[Ui] Rated Insulation Voltage:
500 V AC IEC 61439-2
Connection Pitch:
18 mm
Mounting Mode:
horizontal
Distance Between Way:
18 mm
Warranty:
18 months
Marking:
L
Lines Description:
1L
Mounting Location:
top or bottom tunnel type terminals || top or bottom double terminal
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
