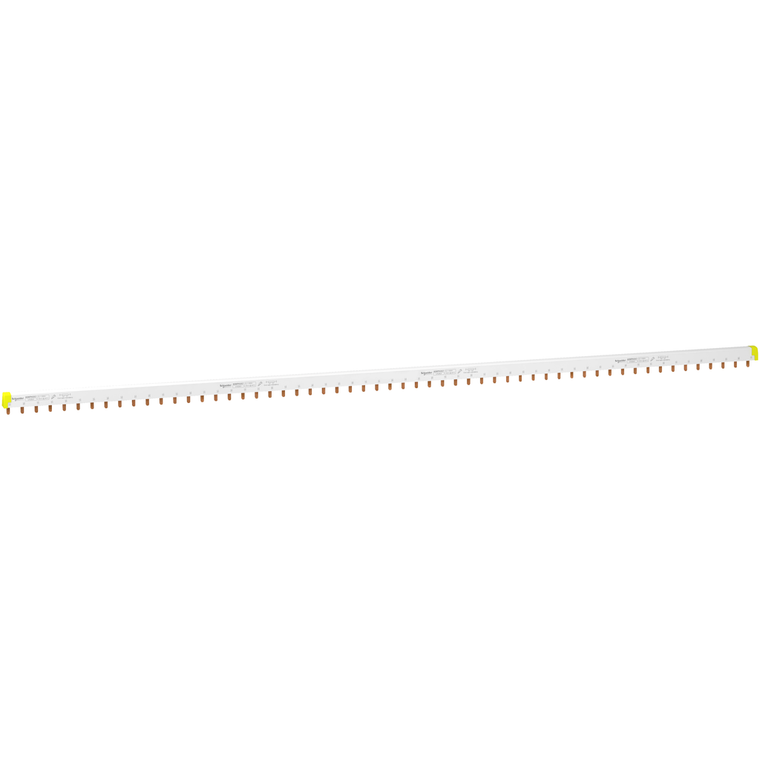

Schneider Electric A9XPH357 Acti9 Comb Busbar 3P 100A 57 Modules Pack of 5

(No reviews yet) Write a Review
SKU:
A9XPH357
UPC:
3606480485152
Condition:
New
Insulation:
insulated
Connection Pitch:
18 mm
Lines Description:
3L
Number Of Ways:
19 ways 3 L
[Ie] Rated Operational Current:
100 A 40 °C
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Poles Configuration For 1 Way:
1 x 3P
China Rohs Regulation:
Pro-active China RoHS declaration (out of China RoHS legal scope)
Total Number Of 18 Mm Modules:
57
Connector Type:
tooth
Ip Degree Of Protection:
IP20 with end-pieces and tooth covers
Distance Between Way:
54 mm
Fire Resistance:
960 °C 30 s ) IEC 60695-2-1
Marking:
L1 L2 L3
Mercury Free:
Yes
Provided Equipment:
set of 10 end piece
Toxic Heavy Metal Free:
Yes
Range:
Acti9
Pollution Degree:
3 IEC 60947-7-1
Environmental Disclosure:
ENVPEP2005011
Product Or Component Type:
comb busbar
Mounting Location:
top or bottom tunnel type terminals || top or bottom double terminal
Reach Free Of Svhc:
Yes
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
[Ui] Rated Insulation Voltage:
500 V AC IEC 61439-2
Sustainable Offer Status:
Green Premium product
Eu Rohs Directive:
Compliant
Warranty:
18 months
Height:
1000 mm
Mounting Mode:
horizontal
Range Compatibility:
Acti 9 Acti9 iC60 || Acti 9 Acti9 iK60 || Acti 9 Acti9 iID || Acti 9 Acti9 iID K || Acti 9 Acti9 iSW || Acti 9 Acti9 iSW-NA || Multi9 Multi9 C60
Rohs Exemption Information:
Yes
Standards:
IEC 60947-7-1 || IEC 61439-2
Device Presentation:
cuttable
Color:
White RAL 9003)
Circularity Profile:
N/A
[Ue] Rated Operational Voltage:
415 V AC
Accessory / Separate Part Category:
connection accessory
9 Mm Pitches:
114
Brochure:
View
Catalog:
View
Datasheet:
View
$1,230.00

Description

This Acti 9 accessory is solution for safe and reliable comb busbar. It is made for 1 pole and 3 poles devices, rated at 100 amperes and it has 57 modules. This product benefits from Schneider Electric expertise with more than 40 years developing modular devices for commercial and industrial applications. Quickly and safely build your main distribution board with a reliable and safe comb busbar from Schneider Electric. 100 A current rating, can fit the most demanding applications. Ideal for 3 phase installations. 57 modules length, easy-to-cut 513 mm busbar for any panel application. Insulated comb busbar to protect users against electric shocks and installation against arc flash faults. The Isc short circuit current is compatible with the breaking capacity of Schneider Electric circuit breakers. The Ui rated insulation voltage is 500VAC. The Ue rated operational voltage is 415VAC. The color of the device is white RAL9003. The pollution degree is 3. According to IEC 60695-2-1 standard the fire resistance is self-extinguishing at 960°C within 30s. It complies with IEC 60947-7-1 and IEC 61439-2 standards.
