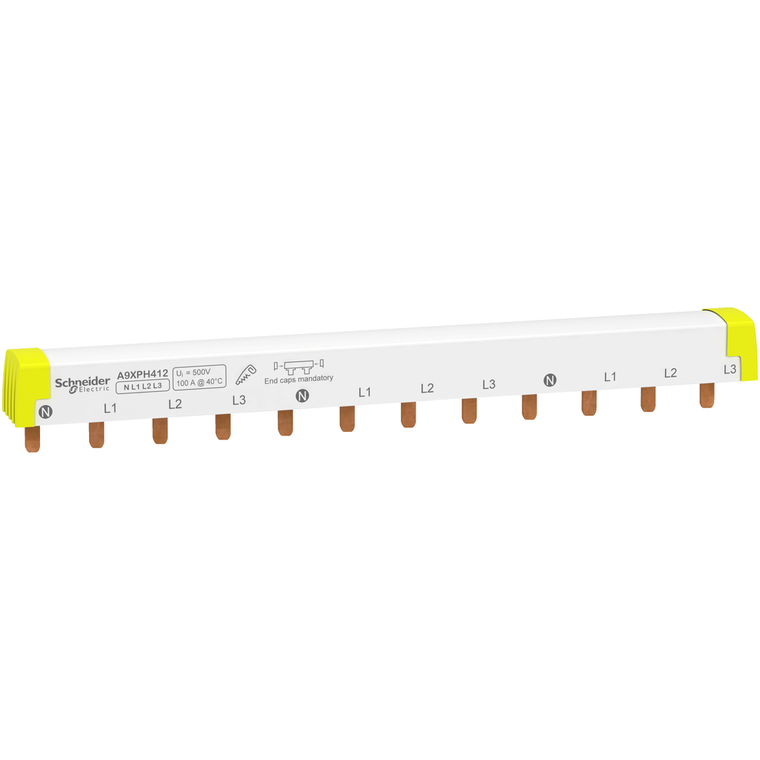

Schneider Electric A9XPH412 Acti9 Comb Busbar 4P 100A 12 Modules Pack of 5

Schneider Electric A9XPH412 Acti9 Comb Busbar 4P 100A 12 Modules Pack of 5

Schneider Electric
SKU:
A9XPH412
|
UPC:
3606480485060
$330.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
This Acti9 product is a cuttable horizontal comb busbar 12 modules for Acti9 iC60 or Acti9 iK60. It is dedicated to N+3L installations. The type is NL1L2L3 (Neutral, Line). It is a set of 1 device. It is suitable for 3 devices (3P+N). The length is 220mm.The total number of modules of 18mm is 12. The pin cross section is 16mm2. The type of electric connection is PIN. The number of phase is 3. The number of poles is 4. The Ie rated operational current at 40°C is 100A. The Isc short circuit current is compatible with the breaking capacity of Schneider Electric circuit breakers. The Ui rated insulation voltage is 500VAC. The Ue rated operational voltage is 415VAC. The color of the device is white RAL9003. The pollution degree is 3. According to IEC 60695-2-1 standard the fire resistance is self-extinguishing at 960°C within 30s. It complies with IEC 60947-7-1 and IEC 61439-2 standards.
Additional Information
Mounting Location:
top or bottom tunnel type terminals || top or bottom double terminal
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Rohs Exemption Information:
Yes
Marking:
N L1 L2 L3
Color:
White RAL 9003)
Eu Rohs Directive:
Compliant
Product Or Component Type:
comb busbar
Insulation:
insulated
Number Of Ways:
3 ways N + 3 L
Fire Resistance:
960 °C 30 s ) IEC 60695-2-1
Standards:
IEC 60947-7-1 || IEC 61439-2
Mounting Mode:
horizontal
Total Number Of 18 Mm Modules:
12
Width:
220 mm
9 Mm Pitches:
24
Range:
Acti9
Sustainable Offer Status:
Green Premium product
Circularity Profile:
N/A
Warranty:
18 months
Ip Degree Of Protection:
IP20 with end-pieces and tooth covers
Toxic Heavy Metal Free:
Yes
Lines Description:
3L + N
Distance Between Way:
72 mm
[Ui] Rated Insulation Voltage:
500 V AC IEC 61439-2
Connection Pitch:
18 mm
China Rohs Regulation:
Pro-active China RoHS declaration (out of China RoHS legal scope)
Range Compatibility:
Acti 9 Acti9 iC60 || Acti 9 Acti9 iK60 || Acti 9 Acti9 iID || Acti 9 Acti9 iID K || Acti 9 Acti9 iSW || Acti 9 Acti9 iSW-NA || Multi9 Multi9 C60
Device Presentation:
cuttable
Connector Type:
tooth
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
[Ie] Rated Operational Current:
100 A 40 °C
Mercury Free:
Yes
[Ue] Rated Operational Voltage:
415 V AC
Pollution Degree:
3 IEC 60947-7-1
Accessory / Separate Part Category:
connection accessory
Environmental Disclosure:
ENVPEP2005011
Reach Free Of Svhc:
Yes
Poles Configuration For 1 Way:
1 x 3P + N || 1 x 4P
