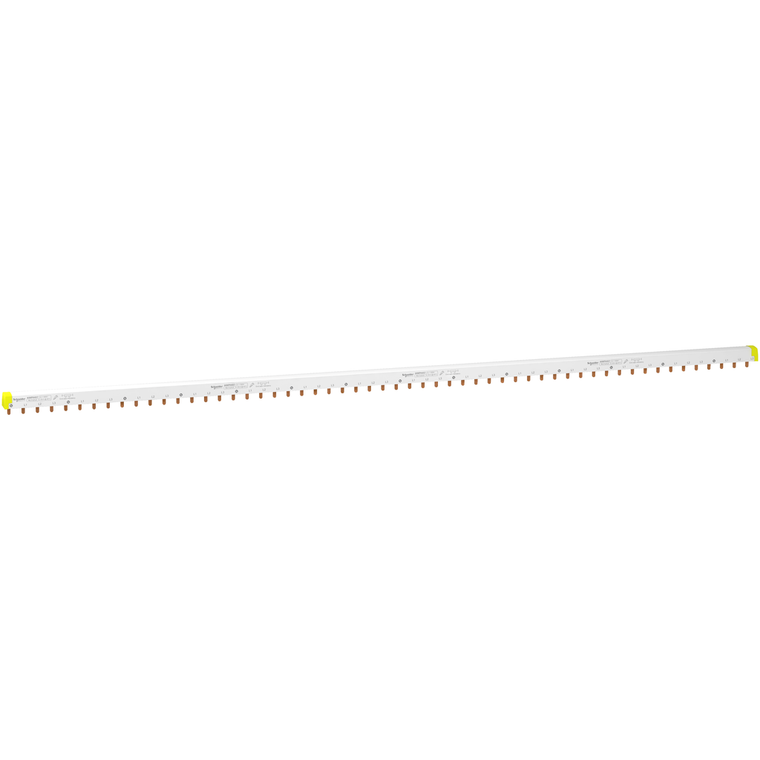

Schneider Electric A9XPH457 Acti9 Comb Busbar 4P 100A 57 Modules Pack of 5

(No reviews yet) Write a Review
SKU:
A9XPH457
UPC:
3606480485176
Condition:
New
Mercury Free:
Yes
Mounting Mode:
horizontal
[Ui] Rated Insulation Voltage:
500 V AC IEC 61439-2
Total Number Of 18 Mm Modules:
57
Warranty:
18 months
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Connection Pitch:
18 mm
9 Mm Pitches:
114
Ip Degree Of Protection:
IP20 with end-pieces and tooth covers
Provided Equipment:
set of 10 end piece
Pollution Degree:
3 IEC 60947-7-1
Fire Resistance:
960 °C 30 s ) IEC 60695-2-1
China Rohs Regulation:
Pro-active China RoHS declaration (out of China RoHS legal scope)
Reach Free Of Svhc:
Yes
Insulation:
insulated
Marking:
N L1 L2 L3
Range Compatibility:
Acti 9 Acti9 iC60 || Acti 9 Acti9 iK60 || Acti 9 Acti9 iID || Acti 9 Acti9 iID K || Acti 9 Acti9 iSW || Acti 9 Acti9 iSW-NA || Multi9 Multi9 C60
Color:
White RAL 9003)
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Standards:
IEC 60947-7-1 || IEC 61439-2
[Ue] Rated Operational Voltage:
415 V AC
Lines Description:
3L + N
Accessory / Separate Part Category:
connection accessory
Circularity Profile:
N/A
Environmental Disclosure:
ENVPEP2005011
[Ie] Rated Operational Current:
100 A 40 °C
Eu Rohs Directive:
Compliant
Mounting Location:
top or bottom tunnel type terminals || top or bottom double terminal
Sustainable Offer Status:
Green Premium product
Number Of Ways:
14 ways N + 3 L
Connector Type:
tooth
Width:
1000 mm
Rohs Exemption Information:
Yes
Product Or Component Type:
comb busbar
Toxic Heavy Metal Free:
Yes
Distance Between Way:
72 mm
Poles Configuration For 1 Way:
1 x 3P + N || 1 x 4P
Range:
Acti9
Device Presentation:
cuttable
Brochure:
View
Catalog:
View
Datasheet:
View
$1,710.00

Description

This Acti9 product is a cuttable horizontal comb busbar 57 modules for Acti9 iC60 or Acti9 iK60. It is dedicated to N+3L installations. The type is NL1L2L3 (Neutral, Line). It is a set of 1 device. It is suitable for 14 devices (3P+N). The length is 1000mm. The total number of modules of 18mm is 57. The pin cross section is 16mm2. The type of electric connection is PIN. The number of phase is 3. The number of poles is 4. The Ie rated operational current at 40°C is 100A The Isc short circuit current is compatible with the breaking capacity of Schneider Electric circuit breakers. The Ui rated insulation voltage is 500VAC. The Ue rated operational voltage is 415VAC. The color of the device is white RAL9003. The pollution degree is 3. According to IEC 60695-2-1 standard the fire resistance is self-extinguishing at 960°C within 30s. It complies with IEC 60947-7-1 and IEC 61439-2 standards.
