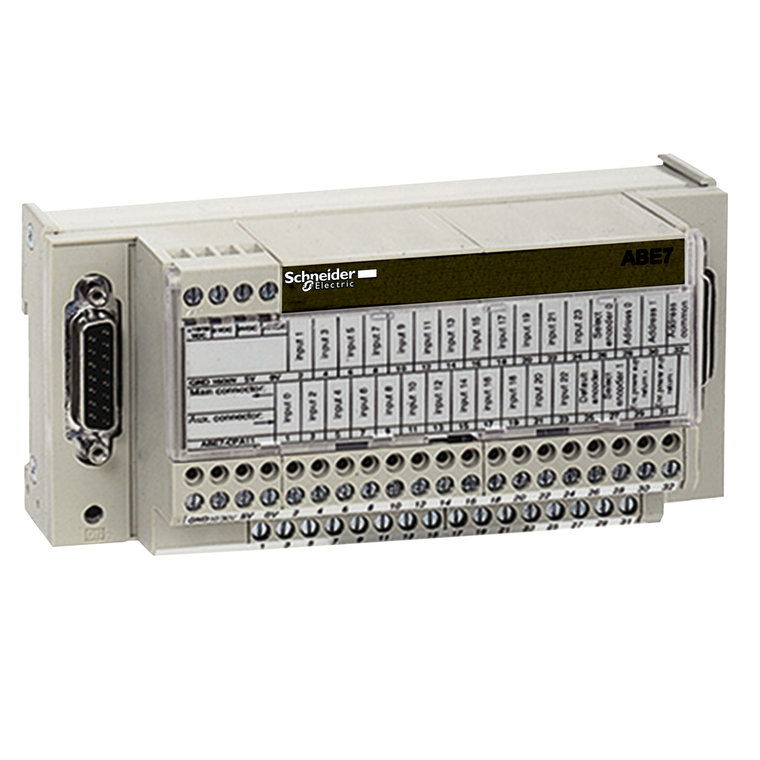

Schneider Electric ABE7CPA01 Analogue Base 8 Chanels

SKU:

ABE7CPA01

UPC:

3389110544848

MPN:

Condition:

New

Product Certifications:

DNV || CSA || UL || GL || EAC

[Uc] Control Circuit Voltage:

24 V DC

Sustainable Offer Status:

Green Premium product

Function Of Module:

counting and analogue TSX Micro || counting, axis control, position control Premium

Connections - Terminals:

screw type terminals, 1 x 0.09...1 x 1.5 mm² AWG 28...AWG 16) flexible with cable end || screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 12) solid || screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 14) flexible without cable en

Installation Category:

II IEC 60664-1

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Resistance To Electrostatic Discharge:

4 kV contact) level 3 IEC 61000-4-2 || 8 kV air) level 3 IEC 61000-4-2

Ambient Air Temperature For Storage:

-40-80 °C IEC 61131-2

Product Or Component Type:

connection sub-base for counter and analogue channels

Resistance To Radiated Fields:

10 V/m 26000000-1000000000 Hz)IEC 61000-4-3 level 3

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Pollution Degree:

2 IEC 60664-1

Fixing Mode:

by clips 35 mm symmetrical DIN rail) || by screws solid plate with fixing kit)

[Ui] Rated Insulation Voltage:

2000 V terminals/mounting rails

Mercury Free:

Yes

Warranty:

18 months

Connection To Plc:

SUB-D 15

Ambient Air Temperature For Operation:

0-60 °C

Ip Degree Of Protection:

IP20 conforming to IEC 60529

China Rohs Regulation:

X

Tightening Torque:

0.6 N.m flat Ø 3.5 mm

Resistance To Fast Transients:

2 kV level 3 IEC 61000-4-4

Environmental Disclosure:

ENVPEP121229EN

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Range Of Product:

Modicon ABE7

Number Of Channels:

2 || 8 || 1

Vibration Resistance:

2 gn 10-150 Hz)IEC 60068-2-6

Product Compatibility:

TSX Micro TSX3722 || Premium TSXCAY21 || Premium TSXCAY41 || Premium TSXCTY2A || Premium TSXCTY4A || TSX Micro TSXCTZ1A || TSX Micro TSXCTZ2A

Rohs Exemption Information:

Yes

Circularity Profile:

ENVEOLI1212029EN

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Shock Resistance:

15 gn 11 ms IEC 60068-2-27

Resistance To Incandescent Wire:

750 °C IEC 60695-2-11

Net Weight:

0.3 kg
