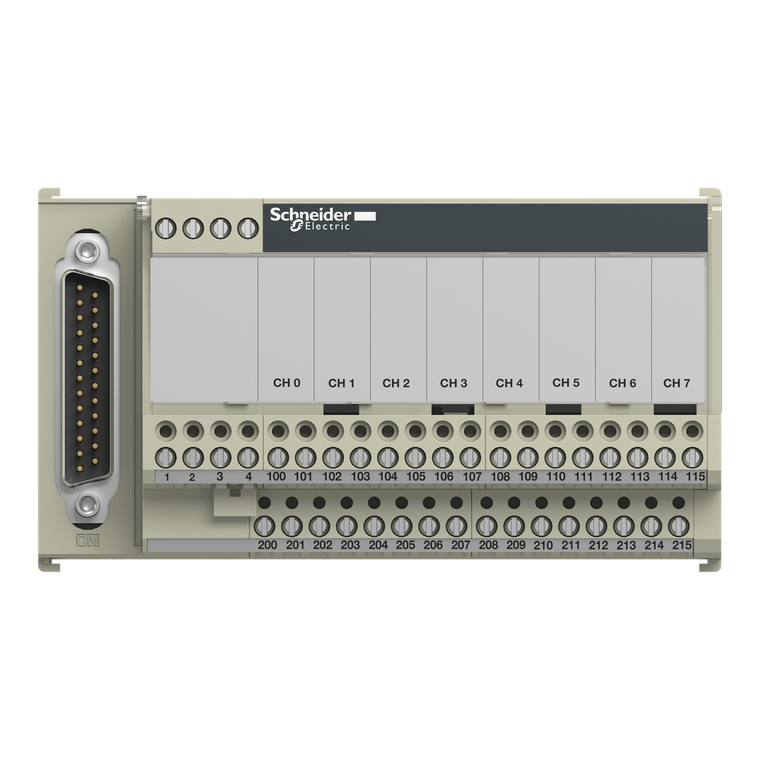

Schneider Electric ABE7CPA02 Analog.Base 8Chl Sub-D25

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric ABE7CPA02 Analog.Base 8Chl Sub-D25

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ABE7CPA02

UPC:

3389110644463

MPN:

Condition:

New

[Ui] Rated Insulation Voltage:

2000 V terminals/mounting rails

Connection To Plc:

SUB-D 25

Ip Degree Of Protection:

IP20 conforming to IEC 60529

Warranty:

18 months

Rohs Exemption Information:

Yes

Resistance To Radiated Fields:

10 V/m 26000000-1000000000 Hz)IEC 61000-4-3 level 3

Product Certifications:

GL || DNV || UL || CSA || EAC

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Protective Treatment:

TC

Circularity Profile:

ENVEOLI1212029EN

Shock Resistance:

15 gn 11 ms IEC 60068-2-27

Ambient Air Temperature For Storage:

-40-80 °C IEC 61131-2

Fixing Mode:

by clips 35 mm symmetrical DIN rail) || by screws solid plate with fixing kit)

China Rohs Regulation:

X

Vibration Resistance:

2 gn 10-150 Hz)IEC 60068-2-6

Net Weight:

0.29 kg

Connections - Terminals:

screw type terminals, 1 x 0.09...1 x 1.5 mm² AWG 28...AWG 16) flexible with cable end || screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 12) solid || screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 14) flexible without cable en

Sustainable Offer Status:

Green Premium product

Resistance To Electrostatic Discharge:

4 kV contact) level 3 IEC 61000-4-2 || 8 kV air) level 3 IEC 61000-4-2

Range Of Product:

Modicon ABE7

Function Of Module:

analogue input current Premium || analogue input voltage Premium || Pt 100 Premium

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Installation Category:

II IEC 60664-1

Number Of Channels:

8

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Product Or Component Type:

connection sub-base for counter and analogue channels

Mercury Free:

Yes

Tightening Torque:

0.6 N.m flat Ø 3.5 mm

Environmental Disclosure:

ENVPEP121229EN

Resistance To Incandescent Wire:

750 °C 30 s IEC 60695-2-11

Resistance To Fast Transients:

2 kV level 3 IEC 61000-4-4

Pollution Degree:

2 IEC 60664-1

Ambient Air Temperature For Operation:

0-60 °C IEC 61131-2
