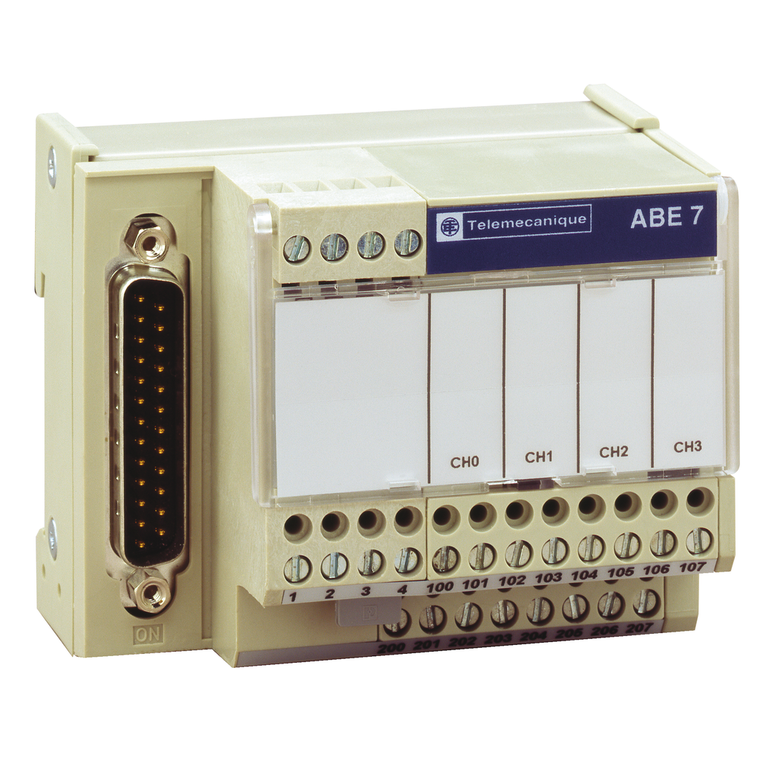

Schneider Electric ABE7CPA410 Ps Wiring Block For Isolated Analog Inp

(No reviews yet) Write a Review

Write a Review

Schneider Electric ABE7CPA410 Ps Wiring Block For Isolated Analog Inp

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ABE7CPA410

UPC:

3595863931594

MPN:

Condition:

New

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Pollution Degree:

2 IEC 60664-1

Tightening Torque:

0.6 N.m flat Ø 3.5 mm

Ambient Air Temperature For Operation:

0-60 °C IEC 61131-2

[Ui] Rated Insulation Voltage:

2000 V terminals/mounting rails

Number Of Channels:

4

Resistance To Radiated Fields:

10 V/m 26000000-1000000000 Hz)IEC 61000-4-3 level 3

Product Or Component Type:

connection sub-base for analogue channels

Range Of Product:

Modicon ABE7

Fixing Mode:

by clips 35 mm symmetrical DIN rail) || by screws solid plate with fixing kit)

Ambient Air Temperature For Storage:

-40-80 °C IEC 61131-2

Resistance To Fast Transients:

2 kV level 3 IEC 61000-4-4

Function Of Module:

distribution of supply and 4 analogue channels protected isolated Modicon M340

Net Weight:

0.18 kg

China Rohs Regulation:

X

Resistance To Electrostatic Discharge:

4 kV contact) level 3 IEC 61000-4-2 || 8 kV air) level 3 IEC 61000-4-2

Shock Resistance:

15 gn 11 ms IEC 60068-2-27

Product Certifications:

DNV || UL || GL || CSA

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Installation Category:

II IEC 60664-1

Connections - Terminals:

screw type terminals, 1 x 0.09...1 x 1.5 mm² AWG 28...AWG 16) flexible with cable end || screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 12) solid || screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 14) flexible without cable en

Ip Degree Of Protection:

IP20 conforming to IEC 60529

Mercury Free:

Yes

Warranty:

18 months

Resistance To Incandescent Wire:

750 °C 30 s IEC 60695-2-11

Connection To Plc:

SUB-D 25

Vibration Resistance:

2 gn 10-150 Hz)IEC 60068-2-6

Product Compatibility:

Modicon M340 BMXAMI0410

Rohs Exemption Information:

Yes
