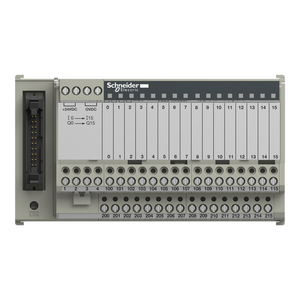

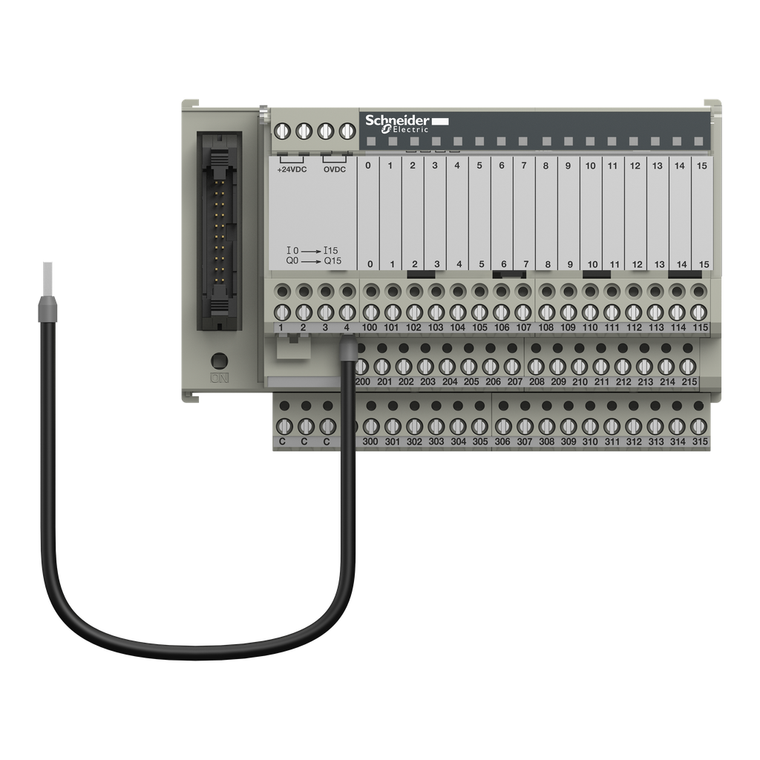

Schneider Electric ABE7H16R31 Wir Bas 16Io Led 3B/3Leve
Schneider Electric
$275.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric ABE7H16R31 Wir Bas 16Io Led 3B/3Leve
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This product is part of the Modicon ABE7 range, an offer of connection sub bases for Telefast pre-wired system. This passive discrete I/O sub base offers 16 channels and 3 terminals per channel. It is a passive connection sub base with rated supply voltage of 19V to 30V. It is furnished with screw clamp terminals for electrical connection. It is an IP2x rated product. The width of this product is 125mm. It weighs 0.346kg. It is suitable for all types of industrial applications. This product is certified by BV, CSA, DNV, EAC, GL, LROS, UL and GL. The fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalize wiring in your automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.
- Polarity Distribution:
- 0 V or 24 V
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Pollution Degree:
- 2 IEC 60664-1
- China Rohs Regulation:
- X
- Short-Circuit Protection:
- 2 A internal fuse, 5 x 20 mm, fast blow PLC end)
- Maximum Supply Current:
- 1.8 A
- Net Weight:
- 0.346 kg
- Installation Category:
- II IEC 60664-1
- Ambient Air Temperature For Storage:
- -40-80 °C IEC 61131-2
- Ip Degree Of Protection:
- IP2X conforming to IEC 60529
- Resistance To Fast Transients:
- 2 kV level 3 IEC 61000-4-4
- Range Of Product:
- Modicon ABE7
- [Us] Rated Supply Voltage:
- 19...30 V IEC 61131-2
- Maximum Current Per Output Common:
- 1.8 A
- Number Of Terminal Per Channel:
- 3
- Vibration Resistance:
- 2 gn 10-150 Hz)IEC 60068-2-6
- Shock Resistance:
- 15 gn 11 ms IEC 60068-2-27
- Product Certifications:
- CSA || GL || UL || DNV || EAC
- Resistance To Electrostatic Discharge:
- 4 kV contact) level 3 IEC 61000-4-2 || 8 kV air) level 3 IEC 61000-4-2
- Warranty:
- 18 months
- Circularity Profile:
- ENVEOLI1212029EN
- Supply Circuit Type:
- DC
- Number Of Horizontal Rows:
- 3
- [Ui] Rated Insulation Voltage:
- 2000 V
- Sustainable Offer Status:
- Green Premium product
- Sub-Base Type:
- I/O sub-base
- Connector Type:
- HE-10
- Pin Number:
- 20 pins
- Current Per Channel:
- 0.5 A
- Rohs Exemption Information:
- Yes
- Resistance To Radiated Fields:
- 10 V/m 26000000-1000000000 Hz)IEC 61000-4-3 level 3
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Number Of Channels:
- 16
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Resistance To Incandescent Wire:
- 750 °C IEC 60695-2-11
- Voltage Drop On Power Supply Fuse:
- 0.3 V
- Status Led:
- 1 LED per channel (Green) channel status || 1 LED (Green) power ON
- Mercury Free:
- Yes
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Connections - Terminals:
- screw type terminals, 1 x 0.09...1 x 1.5 mm² AWG 28...AWG 16) flexible with cable end || screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 12) solid || screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 14) flexible without cable en
- Product Or Component Type:
- passive discrete I/O sub-base
- Width:
- 125 mm
- Tightening Torque:
- 0.6 N.m flat à 3.5 mm
- Fixing Mode:
- by clips 35 mm symmetrical DIN rail) || by screws solid plate with fixing kit)
- Ambient Air Temperature For Operation:
- -5-60 °C IEC 61131-2
- Environmental Disclosure:
- ENVPEP121229EN
- Datasheet:
- View
