Schneider Electric

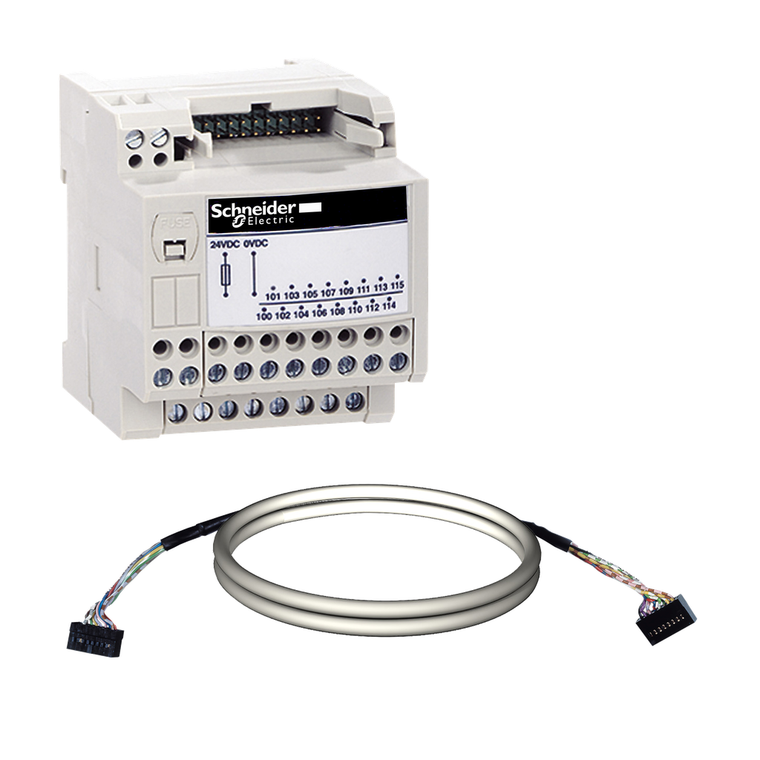

Schneider Electric ABE7H20E200 Wir Bas 16Es Cord Te 2

SKU:

ABE7H20E200

UPC:

3389110250954

MPN:

Condition:

New

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Range Of Product:

Modicon ABE7

Product Certifications:

UL || CSA || GL || DNV || EAC

Number Of Horizontal Rows:

2

Product Or Component Type:

passive discrete I/O sub-base

Maximum Current Per Output Common:

1.8 A

Shock Resistance:

15 gn 11 ms IEC 60068-2-27

Tightening Torque:

0.6 N.m flat Ø 3.5 mm

China Rohs Regulation:

X

Voltage Drop On Power Supply Fuse:

0.3 V

Net Weight:

0.41 kg

Resistance To Electrostatic Discharge:

4 kV contact) level 3 IEC 61000-4-2 || 8 kV air) level 3 IEC 61000-4-2

Rohs Exemption Information:

Yes

Resistance To Incandescent Wire:

750 °C 30 s IEC 60695-2-11

Ambient Air Temperature For Storage:

-40-80 °C IEC 61131-2

Maximum Supply Current:

1.8 A

Number Of Terminal Per Channel:

1

Warranty:

18 months

Short-Circuit Protection:

2 A internal fuse, 5 x 20 mm, fast blow PLC end)

Fixing Mode:

by clips 35 mm symmetrical DIN rail) || by screws solid plate with fixing kit)

Pollution Degree:

2 IEC 60664-1

Mercury Free:

Yes

[Ui] Rated Insulation Voltage:

2000 V terminals/mounting rails

Connections - Terminals:

screw type terminals, 1 x 0.09...1 x 1.5 mm² AWG 28...AWG 16) flexible with cable end || screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 12) solid || screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 14) flexible without cable en

[Us] Rated Supply Voltage:

19...30 V IEC 61131-2

Supply Circuit Type:

DC

Ambient Air Temperature For Operation:

-5-60 °C IEC 61131-2

Ip Degree Of Protection:

IP2X conforming to IEC 60529

Number Of Channels:

16

Status Led:

1 LED per channel (Green) channel status || 1 LED (Green) power ON

Product Compatibility:

Modicon Premium PLC || Modicon TSX Micro PLC

Resistance To Fast Transients:

2 kV level 3 IEC 61000-4-4

Installation Category:

II IEC 60664-1

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Sub-Base Type:

low cost sub-base

Resistance To Radiated Fields:

10 V/m 26000000-1000000000 Hz)IEC 61000-4-3 level 3

Vibration Resistance:

2 gn 10-150 Hz)IEC 60068-2-6

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Current Per Channel:

0.5 A

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Datasheet:

View
