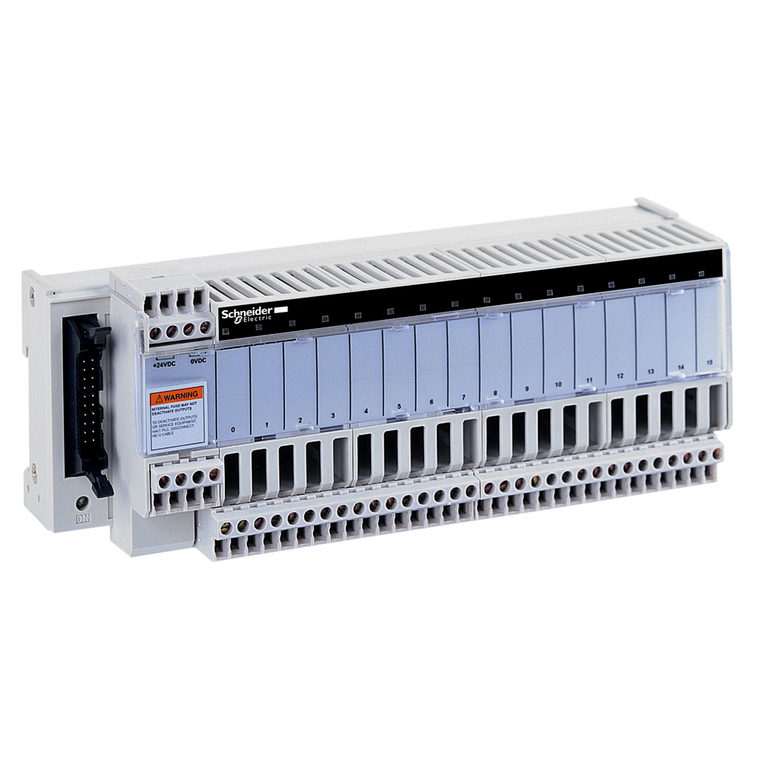

Schneider Electric ABE7P16T230 Base For Em-Ss Rels 160

(No reviews yet) Write a Review

Write a Review

Schneider Electric ABE7P16T230 Base For Em-Ss Rels 160

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ABE7P16T230

UPC:

3389110198065

MPN:

Condition:

New

Maximum Current Per Output Common:

16 A

Maximum Supply Current:

0.0416666666666667

Range Of Product:

Modicon ABE7

Ambient Air Temperature For Storage:

-40-80 °C IEC 61131-2

Net Weight:

0.655 kg

Connections - Terminals:

screw type terminals, 1 x 0.09...1 x 1.5 mm² AWG 28...AWG 16) flexible with cable end || screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 12) solid || screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 14) flexible without cable end |

Number Of Channels:

16

Shock Resistance:

15 gn 11 ms IEC 60068-2-27

Circularity Profile:

ENVEOLI1212029EN

Supply Circuit Type:

DC

Voltage Drop On Power Supply Fuse:

0.3 V

Product Certifications:

CSA || DNV || GL || UL || EAC

Vibration Resistance:

2 gn 10-150 Hz)IEC 60068-2-6

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

[Us] Rated Supply Voltage:

19...30 V IEC 61131-2

Installation Category:

II IEC 60664-1

Resistance To Radiated Fields:

10 V/m 26000000-1000000000 Hz)IEC 61000-4-3 level 3

Mercury Free:

Yes

Product Compatibility:

ABE7ACC20 || ABS7SA2. || ABR7S2. || ABS7SC2.

Sub-Base Type:

output sub-base

Pollution Degree:

2 IEC 60664-1

China Rohs Regulation:

X

Product Or Component Type:

sub-base for plug-in relay

Short-Circuit Protection:

1 A internal fuse, 5 x 20 mm, fast blow PLC end)

Environmental Disclosure:

ENVPEP121229EN

Tightening Torque:

0.6 N.m flat Ø 3.5 mm

Resistance To Electrostatic Discharge:

4 kV contact) level 3 IEC 61000-4-2 || 8 kV air) level 3 IEC 61000-4-2

Rohs Exemption Information:

Yes

Warranty:

18 months

[Uimp] Rated Impulse Withstand Voltage:

2.5 kV

Resistance To Incandescent Wire:

750 °C 30 s IEC 60695-2-11

Sustainable Offer Status:

Green Premium product

Status Led:

1 LED per channel (Green) channel status || 1 LED (Green) power ON

Polarity Distribution:

volt-free

[Ui] Rated Insulation Voltage:

300 V coil circuit/contact circuits IEC 60947-1 || 2000 V terminals/mounting rails

Resistance To Fast Transients:

2 kV level 3 IEC 61000-4-4

Ip Degree Of Protection:

IP2X conforming to IEC 60529

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Ambient Air Temperature For Operation:

-5-60 °C IEC 61131-2

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Fixing Mode:

by clips 35 mm symmetrical DIN rail) || by screws solid plate with fixing kit)
