Schneider Electric

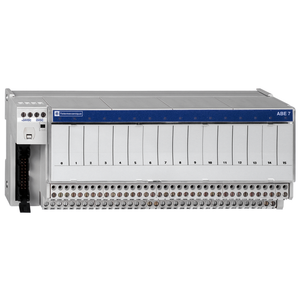

Schneider Electric ABE7R16T330 Em Plug-In Rel.Base 1C/O 16O-Without Co

(No reviews yet) Write a Review
SKU:
ABE7R16T330
UPC:
3389110705096
Condition:
New
[Us] Rated Supply Voltage:
19...30 V IEC 61131-2
Rohs Exemption Information:
Yes
[Uimp] Rated Impulse Withstand Voltage:
2.5 kV
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Short-Circuit Protection:
1 A internal fuse, 5 x 20 mm, fast blow PLC end)
Product Or Component Type:
sub-base with plug-in electromechanical relay
Installation Category:
II IEC 60664-1
Vibration Resistance:
2 gn 10-150 Hz)IEC 60068-2-6
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Sub-Base Type:
output sub-base
Mercury Free:
Yes
Product Compatibility:
ABR7S33
Ip Degree Of Protection:
IP2X conforming to IEC 60529
Fixing Mode:
by clips 35 mm symmetrical DIN rail) || by screws solid plate with fixing kit)
Warranty:
18 months
Pollution Degree:
2 IEC 60664-1
Resistance To Radiated Fields:
10 V/m 26000000-1000000000 Hz)IEC 61000-4-3 level 3
Supply Circuit Type:
DC
Range Of Product:
Modicon ABE7
Ambient Air Temperature For Storage:
-40-80 °C IEC 61131-2
Environmental Disclosure:
ENVPEP121229EN
China Rohs Regulation:
X
Number Of Channels:
16
Resistance To Electrostatic Discharge:
4 kV contact) level 3 IEC 61000-4-2 || 8 kV air) level 3 IEC 61000-4-2
Voltage Drop On Power Supply Fuse:
0.3 V
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Product Certifications:
UL || CSA || DNV || GL || EAC
Status Led:
1 LED per channel (Green) channel status || 1 LED (Green) power ON
[Ui] Rated Insulation Voltage:
2000 V terminals/mounting rails || 300 V coil circuit/contact circuits IEC 60947-1
Net Weight:
1.3 kg
Tightening Torque:
0.6 N.m flat Ø 3.5 mm
Resistance To Fast Transients:
2 kV level 3 IEC 61000-4-4
Sustainable Offer Status:
Green Premium product
Contacts Type And Composition:
1 C/O
Circularity Profile:
ENVEOLI1212029EN
Ambient Air Temperature For Operation:
-5-60 °C IEC 61131-2
Polarity Distribution:
volt-free
Shock Resistance:
15 gn 11 ms IEC 60068-2-27
Resistance To Incandescent Wire:
750 °C IEC 60695-2-11
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Maximum Supply Current:
0.0416666666666667
Brochure:
View
Datasheet:
View
$986.00

Description

This product is part of the Modicon ABE7 range, an offer of connection sub-bases for Telefast pre-wired system. The sub-base with plug-in electromechanical relay, provides 16 channels. It has change over contact. This product enables rapid connection of I/O modules. It is a relay sub base with a supply voltage of 19V to 30V DC and a maximum supply current of 1A. It is an IP2x rated product. It weighs 1.3kg. It is suitable for all types of industrial applications. This product is certified by GL, CSA, DNV, BV, LROS and UL. This sub-base is suitable for use with ABR7S33 plug-in relay. The fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.
