Schneider Electric

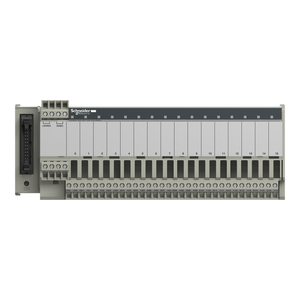

Schneider Electric ABE7S16E2B1 Bas Rel St W10 16I 24Vdc Isolated

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric ABE7S16E2B1 Bas Rel St W10 16I 24Vdc Isolated

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ABE7S16E2B1

UPC:

3389110546248

MPN:

Condition:

New

Shock Resistance:

15 gn 11 ms IEC 60068-2-27

Minimum Switching Current:

1 mA for PLC end

Product Certifications:

UL || DNV || CSA || GL || EAC

Current State 1 Guaranteed:

>= 2 mA sensor end)

Ip Degree Of Protection:

IP2X conforming to IEC 60529

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

[Us] Rated Supply Voltage:

24 V DC PLC end) || 24 V DC sensor end)

Tightening Torque:

0.6 N.m flat Ø 3.5 mm

Net Weight:

0.37 kg

[Uimp] Rated Impulse Withstand Voltage:

2.5 kV IEC 60947-1

Sustainable Offer Status:

Green Premium product

Fixing Mode:

by clips 35 mm symmetrical DIN rail) || by screws solid plate with fixing kit)

China Rohs Regulation:

X

Protection Type:

internal fuse 1 A 5 x 20 mm fast blow PLC end || adjustable by external fuse fast blow sensor end

Resistance To Electrostatic Discharge:

4 kV contact) level 3 IEC 61000-4-2 || 8 kV air) level 3 IEC 61000-4-2

Ambient Air Temperature For Operation:

-5-60 °C IEC 61131-2

Connections - Terminals:

screw type terminals, 1 x 0.09...1 x 1.5 mm², 0.09-1.5 mm² AWG 28...AWG 16) flexible with cable end || screw type terminals, 1 x 0.14...1 x 2.5 mm², 0.14-2.5 mm² AWG 26...AWG 12) solid || screw type terminals, 1 x 0.14...1 x 2.5 mm², 0.14-2.5 mm

Resistance To Radiated Fields:

10 V/m 26000000-1000000000 Hz)IEC 61000-4-3 level 3

Circularity Profile:

ENVEOLI1212029EN

Dielectric Strength:

2000 V 50/60 Hz IEC 60947-1

Range Of Product:

Modicon ABE7

Current Per Channel:

0.012 A

Installation Category:

II IEC 60664-1

Terminal Block Type:

removable

Maximum Switching Current:

15 mA PLC end)

Supply Voltage Limits:

19-30 V DC PLC end)IEC 61131-2

Rohs Exemption Information:

Yes

[Ui] Rated Insulation Voltage:

2000 V

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Warranty:

18 months

Switching Frequency:

<= 1000 Hz 50 %

Resistance To Incandescent Wire:

750 °C IEC 60695-2-11

Product Or Component Type:

solid state input relay sub-base

Environmental Disclosure:

ENVPEP121229EN

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Vibration Resistance:

2 gn 10-150 Hz)IEC 60068-2-6

Resistance To Fast Transients:

2 kV level 3 IEC 61000-4-4

Number Of Channels:

16

Ambient Air Temperature For Storage:

-40-80 °C IEC 61131-2

Number Of Terminal Per Channel:

2

Voltage State 1 Guaranteed:

>= 15 V sensor end

Isolation Plc/Operative Part:

yes

Pollution Degree:

2 IEC 60664-1

Standards:

IEC 61131-2 Type 1

Mercury Free:

Yes

Response Time:

<= 0.05 ms from state 0 to 1 || <= 0.4 ms from state 1 to 0

Brochure:

View

Datasheet:

View
