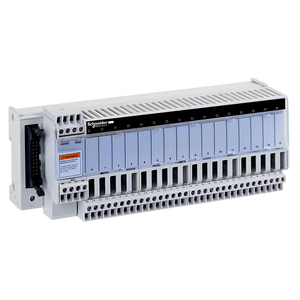

Schneider Electric ABE7S16E2F0 Bas Rel St W10 16I 115Vac Isolated

(No reviews yet) Write a Review

Write a Review

Schneider Electric ABE7S16E2F0 Bas Rel St W10 16I 115Vac Isolated

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ABE7S16E2F0

UPC:

3389110546279

MPN:

Condition:

New

Resistance To Fast Transients:

2 kV level 3 IEC 61000-4-4

Vibration Resistance:

2 gn 10-150 Hz)IEC 60068-2-6

Shock Resistance:

15 gn 11 ms IEC 60068-2-27

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Terminal Block Type:

removable

Ambient Air Temperature For Operation:

-5-60 °C IEC 61131-2

Mercury Free:

Yes

Tightening Torque:

0.6 N.m flat Ø 3.5 mm

Width:

206 mm

Resistance To Radiated Fields:

10 V/m 26000000-1000000000 Hz)IEC 61000-4-3 level 3

Voltage State 1 Guaranteed:

>= 79 V sensor end

Installation Category:

II IEC 60664-1

Number Of Channels:

16

Resistance To Electrostatic Discharge:

4 kV contact) level 3 IEC 61000-4-2 || 8 kV air) level 3 IEC 61000-4-2

Ip Degree Of Protection:

IP2X conforming to IEC 60529

Number Of Terminal Per Channel:

2

[Ui] Rated Insulation Voltage:

2000 V

Net Weight:

0.397 kg

Current Per Channel:

0.0083 A

Supply Voltage Limits:

19-30 V DC PLC end)IEC 61131-2

Switching Frequency:

<= 25 Hz 50 %

Ambient Air Temperature For Storage:

-40-80 °C IEC 61131-2

Rohs Exemption Information:

Yes

Minimum Switching Current:

1 mA for PLC end

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Current State 1 Guaranteed:

>= 5 mA sensor end)

Height:

77 mm

Depth:

58 mm

Pollution Degree:

2 IEC 60664-1

China Rohs Regulation:

X

Standards:

IEC 61131-2 Type 1

Circularity Profile:

ENVEOLI1212029EN

Fixing Mode:

by clips 35 mm symmetrical DIN rail) || by screws solid plate with fixing kit)

Environmental Disclosure:

ENVPEP121229EN

Resistance To Incandescent Wire:

750 °C IEC 60695-2-11

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Product Or Component Type:

solid state input relay sub-base

Warranty:

18 months

Dielectric Strength:

2000 V 50/60 Hz IEC 60947-1

Sustainable Offer Status:

Green Premium product

Maximum Switching Current:

15 mA PLC end)

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Response Time:

<= 20 ms from state 0 to 1 || <= 20 ms from state 1 to 0

Connections - Terminals:

screw type terminals, 1 x 0.09...1 x 1.5 mm², 0.09-1.5 mm² AWG 28...AWG 16) flexible with cable end || screw type terminals, 1 x 0.14...1 x 2.5 mm², 0.14-2.5 mm² AWG 26...AWG 12) solid || screw type terminals, 1 x 0.14...1 x 2.5 mm², 0.14-2.5 mm² AWG

Range Of Product:

Modicon ABE7

[Us] Rated Supply Voltage:

110/130 V AC 50/60 Hz sensor end) || 24 V DC PLC end)

Product Certifications:

UL || GL || DNV || CSA || EAC

[Uimp] Rated Impulse Withstand Voltage:

2.5 kV IEC 60947-1

Protection Type:

internal fuse 1 A 5 x 20 mm fast blow PLC end || adjustable by external fuse fast blow sensor end

Isolation Plc/Operative Part:

yes
