Schneider Electric

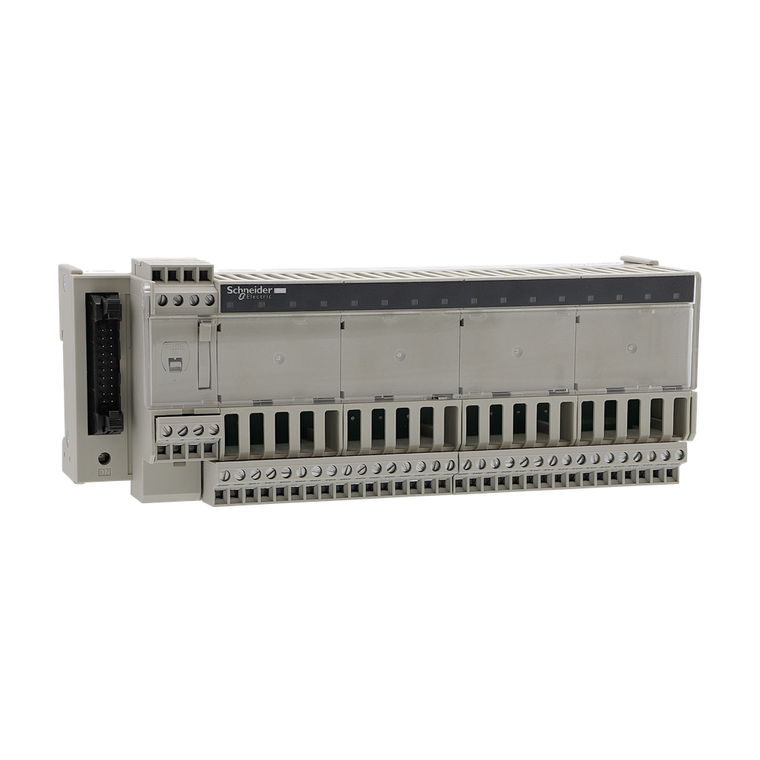

Schneider Electric ABE7S16S2B0 Bas Rel St W10 16O 0,5A

SKU:

ABE7S16S2B0

UPC:

3.38911E+12

MPN:

Condition:

New

Rohs Exemption Information:

Yes

Current State 1 Guaranteed:

3.1 mA PLC end)

Width:

206 mm

Isolation Plc/Operative Part:

no

Minimum Switching Current:

1 mA

Voltage State 1 Guaranteed:

16.9 V PLC end

Relay Type:

soldered solid state relay

Maximum Tungsten Load:

<10 W DC-6

Circularity Profile:

ENVEOLI1212029EN

Product Or Component Type:

solid state output relay sub-base

Protective Treatment:

TC

Environmental Disclosure:

ENVPEP121229EN

[Us] Rated Supply Voltage:

24 V DC PLC end || 24 V DC preactuator end

Pollution Degree:

2 IEC 60664-1

Resistance To Incandescent Wire:

750 °C 30 s IEC 60695-2-11

Drop-Out Voltage:

0.6 V preactuator end)

Ip Degree Of Protection:

IP2X conforming to IEC 60529

Maximum Circuit Breaker Threshold:

0.75 A

Number Of Terminal Per Channel:

2

Current Per Channel:

0.5 A preactuator end

Resistance To Radiated Fields:

10 V/m 26000000-1000000000 Hz)IEC 61000-4-3 level 3

Ambient Air Temperature For Operation:

-5-60 °C IEC 61131-2

Maximum Residual Current:

0.3 mA preactuator end

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Switchable Inductive Energy L/R:

<= 400(U.I) ms

Mercury Free:

Yes

Current State 0 Guaranteed:

0.4 mA PLC end)

Range Of Product:

Modicon ABE7

Maximum Current Per Output Common:

0.333333333333333

China Rohs Regulation:

X

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Ambient Air Temperature For Storage:

-40-80 °C IEC 61131-2

Product Certifications:

UL || GL || CSA || DNV || EAC

Warranty:

18 months

Number Of Channels:

16

Sustainable Offer Status:

Green Premium product

Fault Indication:

yes

Resistance To Fast Transients:

2 kV level 3 IEC 61000-4-4

Fixing Mode:

by clips 35 mm symmetrical DIN rail) || by screws solid plate with fixing kit)

Shock Resistance:

15 gn 11 ms IEC 60068-2-27

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Terminal Block Type:

removable

Switching Frequency:

< 0.6/LI² Hz

Response Time:

<= 0.02 ms from state 1 to 0 || <= 0.1 ms from state 0 to 1

Net Weight:

0.405 kg

Maximum Switching Current:

500 mA DC-12 || 500 mA DC-13

Installation Category:

II IEC 60664-1

Tightening Torque:

0.6 N.m flat Ø 3.5 mm

Fault Type:

overload || short-circuit

Voltage State 0 Guaranteed:

3.4 V PLC end

Datasheet:

View
