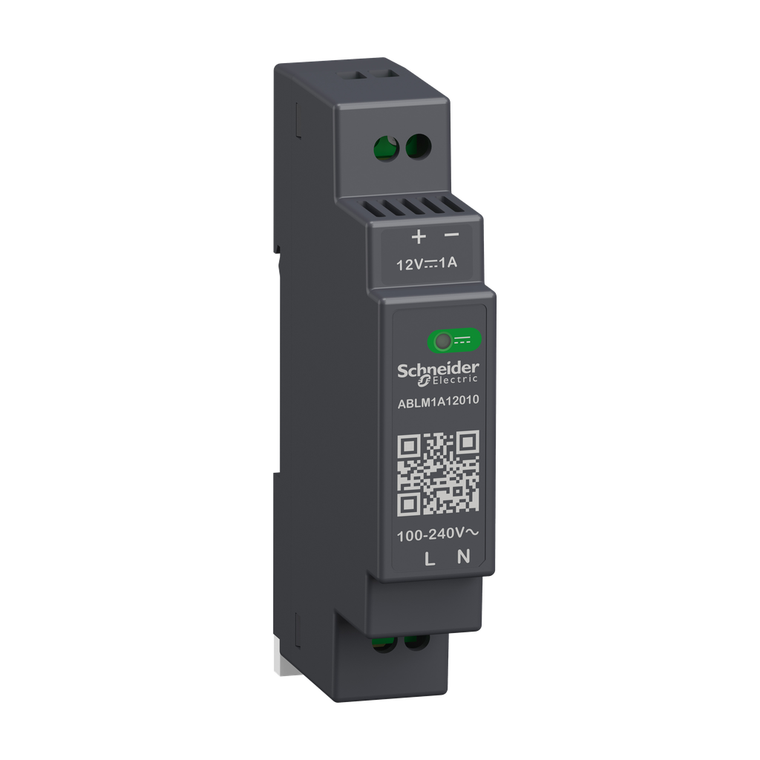

Schneider Electric ABLM1A12010 Power Supply 12V 1A Modular

Schneider Electric ABLM1A12010 Power Supply 12V 1A Modular

Schneider Electric
SKU:
ABLM1A12010
|
UPC:
3.60648E+12
Availability:
Contact us to confirm availability and lead times.
$105.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This ABLM regulated switch mode power supply (SMPS) supplies direct current voltage. It has a rated input of 100V to 240V AC, a rated output current of 1A at 12V DC and a rated power output of 12W. It is ideal for supplying DC voltage necessary for automation equipment designed for applications in industrial, commercial and residential applications such as conveying, packaging, control, food & beverage, mining, oil & gas and water. It installs on omega rail or fixing by screw. Its width is 18mm, its height is 91mm, its depth is 55,6mm. It ensures a protection against overloads and short-circuits with automatic restart after the source of overload/short-circuit has been corrected. It weighs 0.101 kg It is a power supply for industrial use, rail mounting. It conforms to EN62368-1, ENIEC61010-1/2-201, ENIEC61204-3, EN61000-6-1/2/3/4, EN61000-3-2-3, UL62368-1, UL61010-2-201/-1-201, CSAC22.2No62368-1/No61010-2-201/No61010-1 standards, and certified by CE, CUL listed/recognized, RCM, CBscheme. The Acti9 iC60 range of Miniature Circuit Breakers is recommanded for its protection. The type of protection is 2A, B or C curve. It has in the front face a LED indicating presence of DC output voltage, and a QR code for access to the latest technical documentation. Thanks to their modular housing, they can be installed either in enclosures or industrial panels by clipping on omega (DIN) rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.
Additional Information
Overvoltage Category:
II
Height:
91 mm
Load Capacitance:
3000 µF
Dielectric Strength:
3000 V AC input/output
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Response Time:
< 2 s
Holding Time:
> 10 ms 115 V AC || > 60 ms 230 V AC
China Rohs Regulation:
X
Width:
18 mm
Environmental Disclosure:
ENVPEP2004005EN
Product Or Component Type:
power supply
Product Certifications:
CE || cUL Listed || cUL Recognized || RCM || CB Scheme || EAC || KC || NEC class 2
Status Led:
1 LED (Green) output voltage
Electrical Shock Protection Class:
class II without PE connection
Inrush Current:
15 A 115 V || 30 A 230 V
Electromagnetic Compatibility:
immunity to electrostatic discharge - test level: 8 kV (contact discharge) conforming to IEC 61000-4-2 || immunity to electrostatic discharge - test level: 15 kV (air discharge) conforming to IEC 61000-4-2 || electromagnetic field immunity test - tes
Connections - Terminals:
screw connection 0.5...1.5 mm², AWG 20...AWG 16) without wire end ferrule input/output || screw connection 0.5...1 mm², AWG 20...AWG 18) with wire end ferrule input/output
Operating Altitude:
< 6561.68 ft (2000 m) overvoltage category III || 2000 m...5000 m overvoltage category II
Mounting Support:
top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || double-profile DIN rail || panel mounting
Electromagnetic Emission:
conducted emissions IEC 61000-6-3 || radiated emissions IEC 61000-6-4
Line And Load Regulation:
< 0.5 % network in line || < 1 % network 0 to 100 % load
Output Protection Type:
against overload and short-circuits automatic reset || against over temperature manual reset || against overvoltage manual reset
Rohs Exemption Information:
Yes
Residual Ripple:
< 100 mV
Pollution Degree:
2
Current Consumption:
< 0.4 A 115 V AC || < 0.25 A 230 V AC
Input Protection Type:
integrated fuse (not interchangeable) 3.15 A || external protection (recommended) 20 A Curve B || external protection (recommended) 20 A Curve C || external protection (recommended) 2 A Curve B || external protection (recommended) 2 A Curve C
Input Voltage:
100...240 V AC single phase || 100...240 V AC phase to phase
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Service Life:
10 year(s)
Ip Degree Of Protection:
IP20
Standards:
IEC 62368-1 || EN/IEC 61010-1 || EN 61010-2-201 || EN/IEC 61204-3 || IEC 61000-6-1 || IEC 61000-6-2 || IEC 61000-6-3 || IEC 61000-6-4 || IEC 61000-3-2 || EN 61000-3-3 || UL 62368-1 || UL 61010-1 || UL 61010-2-201 || CSA C22.2 No 62368-1 || CSA C22.2
Efficiency:
80 % 115 V AC || 80 % 230 V AC
Depth:
55.6 mm
Power Factor:
0.51 at 115 V AC || 0.40 at 230 V AC
Vibration Resistance:
3 mm 2-9 Hz)IEC 60721-3-3 || 10 m/s² 9-200 Hz)IEC 60721-3-3
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Mercury Free:
Yes
Meantime Between Failure [Mtbf]:
3000000 h at 25 °C, full load || 1000000 h at 55 °C, 80 % load
Enclosure Material:
Plastic
Circularity Profile:
ENVEOLI2004005EN
Net Weight:
0.101 kg
Ambient Air Temperature For Operation:
-25-55 °C without current derating mounting position A < 6561.68 ft (2000 m) || 55-70 °C with current derating of 2.67 % per °C mounting position A < 6561.68 ft (2000 m)
Power Dissipation In W:
3 W
Output Voltage:
12 V DC
Range Of Product:
Modicon Power Supply
Earthing System:
TN || TT || IT
Supply:
SELV IEC 60950-1 || SELV IEC 60204-1 || SELV IEC 60364-4-41
Sustainable Offer Status:
Green Premium product
Network Frequency Limits:
50-60 Hz
Efficiency At Full Load:
90...264 V AC
Output Coupling:
serial
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Power Supply Type:
regulated switch mode
Power Supply Output Current:
0.0416666666666667
Shock Resistance:
150 m/s² 11 ms
Kw Rating:
12 W
Maximum Leakage Current:
0.25 mA 240 V AC
