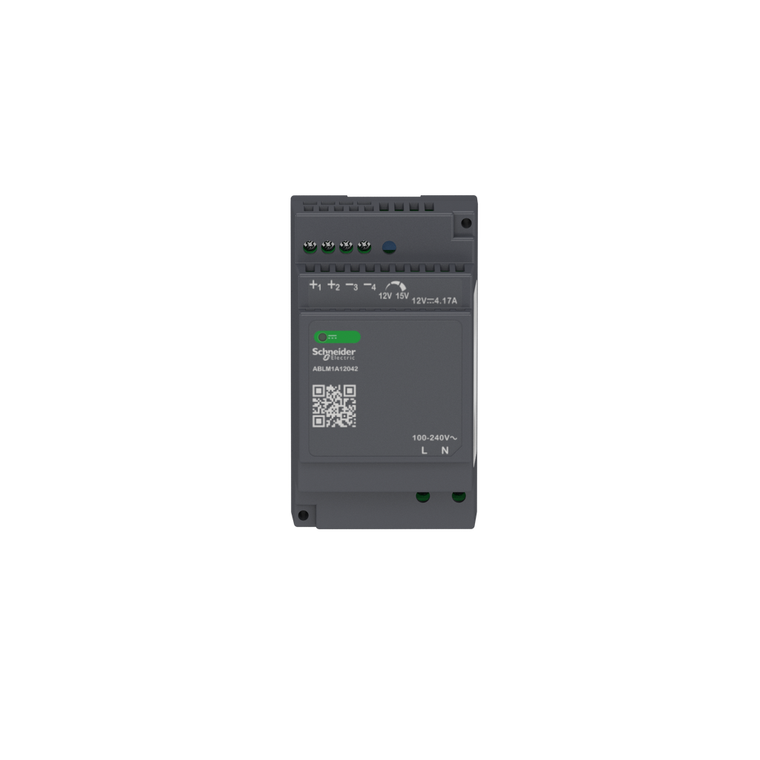

Schneider Electric ABLM1A12042 Power Supply 12V 4.2A Modular

Schneider Electric ABLM1A12042 Power Supply 12V 4.2A Modular

Schneider Electric
SKU:
ABLM1A12042
|
UPC:
3606481500168
Availability:
Contact us to confirm availability and lead times.
$152.91
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This ABLM regulated switch mode power supply (SMPS) supplies direct current voltage. It has a rated input of 100V to 240V AC, a rated output current of 4,17A at 12V DC and a rated power output of 50W. It is ideal for supplying DC voltage necessary for automation equipment designed for applications in industrial, commercial and residential applications such as conveying, packaging, control, food & beverage, mining, oil & gas and water. It installs on omega rail or fixing by screw. Its width is 53mm, its height is 91mm, its depth is 55,6mm. It ensures a protection against overloads and short-circuits with automatic restart after the source of overload/short-circuit has been corrected. It weighs 0.221kg It is a power supply for industrial use, rail mounting. It conforms to EN62368-1, ENIEC61010-1/2-201, ENIEC61204-3, EN61000-6-1/2/3/4, EN61000-3-2-3, UL62368-1, UL61010-2-201/-1-201, CSAC22.2No62368-1/No61010-2-201/No61010-1 standards, and certified by CE, CUL listed/recognized, RCM, CBscheme. The Acti9 iC60 range of Miniature Circuit Breakers is recommanded for its protection. The type of protection is 6A, C curve or 10A, B-curve. It has in the front face a LED indicating presence of DC output voltage, and a QR code for access to the latest technical documentation. Thanks to their modular housing, they can be installed either in enclosures or industrial panels by clipping on omega (DIN) rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.
Additional Information
Residual Ripple:
< 100 mV
Output Protection Type:
against overload and short-circuits automatic reset || against over temperature manual reset || against overvoltage manual reset
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Depth:
55.6 mm
Supply:
SELV IEC 60950-1 || SELV IEC 60204-1 || SELV IEC 60364-4-41
Vibration Resistance:
3 mm 2-9 Hz)IEC 60721-3-3 || 10 m/s² 9-200 Hz)IEC 60721-3-3
Width:
53 mm
Earthing System:
TN || TT || IT
Standards:
IEC 62368-1 || EN/IEC 61010-1 || EN 61010-2-201 || EN/IEC 61204-3 || IEC 61000-6-1 || IEC 61000-6-2 || IEC 61000-6-3 || IEC 61000-6-4 || IEC 61000-3-2 || EN 61000-3-3 || UL 62368-1 || UL 61010-1 || UL 61010-2-201 || CSA C22.2 No 62368-1 || CSA C22.2
Ambient Air Temperature For Operation:
-25-55 °C without current derating mounting position A < 6561.68 ft (2000 m) || 55-70 °C with current derating of 2.67 % per °C mounting position A < 6561.68 ft (2000 m)
Pollution Degree:
2
Mercury Free:
Yes
Output Voltage Limits:
12...15 V
Input Protection Type:
integrated fuse (not interchangeable) 3.15 A || external protection (recommended) 20 A Curve B || external protection (recommended) 20 A Curve C || external protection (recommended) 10 A Curve B || external protection (recommended) 6 A Curve C
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Enclosure Material:
Plastic
Power Supply Type:
regulated switch mode
Inrush Current:
30 A 115 V || 60 A 230 V
Operating Altitude:
< 6561.68 ft (2000 m) overvoltage category III || 2000 m...5000 m overvoltage category II
Net Weight:
0.221 kg
Shock Resistance:
150 m/s² 11 ms
Circularity Profile:
ENVEOLI2004005EN
Mounting Support:
top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || double-profile DIN rail || panel mounting
Height:
91 mm
Power Factor:
0.50 at 115 V AC || 0.39 at 230 V AC
Network Frequency Limits:
50-60 Hz
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Ip Degree Of Protection:
IP20
Dielectric Strength:
3000 V AC input/output
Efficiency:
88 % 115 V AC || 88 % 230 V AC
Maximum Leakage Current:
0.25 mA 240 V AC
Status Led:
1 LED (Green) output voltage
Output Coupling:
serial || parallel
Kw Rating:
50 W
Current Consumption:
< 1.5 A 115 V AC || < 1 A 230 V AC
Product Or Component Type:
power supply
Environmental Disclosure:
ENVPEP2004005EN
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Range Of Product:
Modicon Power Supply
Efficiency At Full Load:
90...264 V AC
Line And Load Regulation:
< 0.5 % network in line || < 1 % network 0 to 100 % load
Load Capacitance:
3000 µF
Sustainable Offer Status:
Green Premium product
Electromagnetic Emission:
conducted emissions IEC 61000-6-3 || radiated emissions IEC 61000-6-4
Output Voltage:
12 V DC
Connections - Terminals:
screw connection 0.5...2.5 mm², AWG 20...AWG 14) without wire end ferrule output || screw connection 0.5...1.5 mm², AWG 20...AWG 16) with wire end ferrule output || screw connection 0.5...1.5 mm², AWG 20...AWG 16) input
China Rohs Regulation:
X
Electrical Shock Protection Class:
class II without PE connection
Meantime Between Failure [Mtbf]:
1500000 h at 25 °C, full load || 1000000 h at 55 °C, 80 % load
Power Supply Output Current:
4.17 A
Holding Time:
> 20 ms 115 V AC || > 60 ms 230 V AC
Power Dissipation In W:
5.5 W
Response Time:
< 2 s
Rohs Exemption Information:
Yes
Overvoltage Category:
II
Electromagnetic Compatibility:
immunity to electrostatic discharge - test level: 8 kV (contact discharge) conforming to IEC 61000-4-2 || immunity to electrostatic discharge - test level: 15 kV (air discharge) conforming to IEC 61000-4-2 || electromagnetic field immunity test - tes
Input Voltage:
100...240 V AC single phase || 100...240 V AC phase to phase
Product Certifications:
CE || cUL Listed || cUL Recognized || RCM || CB Scheme || EAC || KC || NEC class 2
Service Life:
10 year(s)
