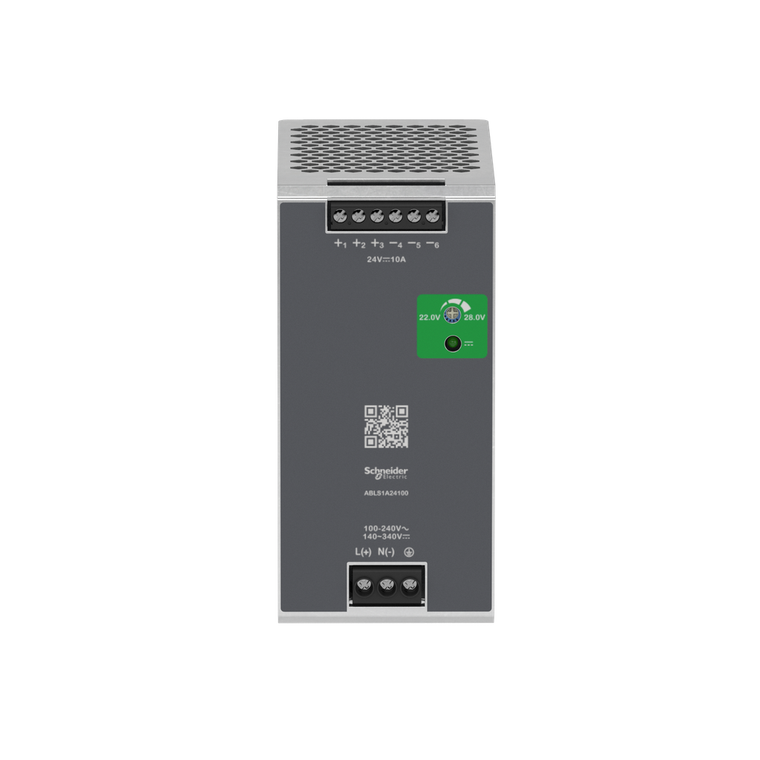

Schneider Electric ABLS1A24100 Power Supply 24V 10A 1Ph Optimized

(No reviews yet) Write a Review

Write a Review

Schneider Electric ABLS1A24100 Power Supply 24V 10A 1Ph Optimized

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ABLS1A24100

UPC:

3606481500250

MPN:

Condition:

New

Output Coupling:

parallel || serial

Electromagnetic Emission:

conducted emissions IEC 61000-6-3 || radiated emissions IEC 61000-6-4

Operating Altitude:

< 5000 m

Power Supply Type:

regulated switch mode

Maximum Leakage Current:

1 mA 240 V AC

Mercury Free:

Yes

Shock Resistance:

150 m/s² 11 ms

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Service Life:

10 year(s)

Rohs Exemption Information:

Yes

Net Weight:

0.8 kg

Line And Load Regulation:

< 0.5 % network 0 to 100 % load at 25 °C || < 1 % network full voltage range in line at 25 °C

Product Or Component Type:

power supply

Enclosure Material:

Aluminum

Network Frequency Limits:

50-60 Hz

Height:

123.6 mm

Load Capacitance:

8000 µF

Depth:

117.6 mm

Environmental Disclosure:

ENVPEP2007005EN

Electromagnetic Compatibility:

immunity to electrostatic discharge - test level: 8 kV (contact discharge) conforming to IEC 61000-4-2 || immunity to electrostatic discharge - test level: 15 kV (air discharge) conforming to IEC 61000-4-2 || immunity to conducted RF disturbances - t

Power Dissipation In W:

36 W

China Rohs Regulation:

X

Connections - Terminals:

screw connection 0.5...4 mm², AWG 20...AWG 12) without wire end ferrule output || screw connection 0.5...2.5 mm², AWG 20...AWG 14) with wire end ferrule output || screw connection 0.75...4 mm², AWG 18...AWG 12) without wire end ferrule input || sc

Overvoltage Category:

II

Mounting Support:

top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || double-profile DIN rail

Efficiency:

85 % 115 V AC || 88 % 230 V AC

Output Voltage:

24 V DC

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Earthing System:

TN || TT || IT

Supply:

SELV IEC 60950-1 || SELV IEC 60204-1 || SELV IEC 60364-4-41

Range Of Product:

Modicon Power Supply

Ip Degree Of Protection:

IP20

Product Certifications:

CE || cUL Listed || cUL Recognized || RCM || CB Scheme || EAC || KC

Circularity Profile:

ENVEOLI2007005EN

Efficiency At Full Load:

85...264 V AC without temperature derating || 120...375 V DC without temperature derating || 85…120 V DC with temperature derating

Meantime Between Failure [Mtbf]:

700000 h at 25 °C, full load conforming to SR 332

Residual Ripple:

< 120 mV

Inrush Current:

30.0 A 115 V || 60.0 A 230 V

Ambient Air Temperature For Operation:

-20-40 °C without derating mounting position A 115 V AC < 6561.68 ft (2000 m) || -20-50 °C without derating mounting position A 230 V AC < 6561.68 ft (2000 m) || 40-70 °C with current derating of 1.67 % per °C mounting position A 115 V AC < 6561.

Electrical Shock Protection Class:

class I

Output Voltage Limits:

22...28 V

Vibration Resistance:

3 mm 2-9 Hz)IEC 60068-2-6 || 10 m/s² 9-200 Hz)IEC 60068-2-6

Standards:

IEC 62368-1 || EN/IEC 61204-3 || IEC 61000-6-1 || IEC 61000-6-2 || IEC 61000-6-3 || IEC 61000-6-4 || IEC 61000-3-2 || EN 61000-3-3 || UL 62368-1 || CSA C22.2 No 62368-1 || UL 508 || CSA C22.2 No. 107.1 || EN/IEC 62368-1

Response Time:

< 1 s

Pollution Degree:

2

Current Consumption:

< 2.8 A 115 V AC || < 1.4 A 230 V AC || < 2.4 A 140 V DC

Status Led:

1 LED (Green) output voltage

Input Voltage:

100...240 V AC single phase || 100...240 V AC phase to phase || 140...340 V DC

Width:

60 mm

Kw Rating:

240 W

Holding Time:

> 20 ms 115 V AC || > 20 ms 230 V AC

Power Factor:

0.95 at 115 V AC || 0.95 at 230 V AC

Output Protection Type:

against overload and short-circuits automatic reset || against over temperature manual reset || against overvoltage manual reset

Input Protection Type:

integrated fuse (not interchangeable) 6.3 A || external protection (recommended) 20 A Curve B || external protection (recommended) 20 A Curve C || external protection (recommended) 6 A Curve B || external protection (recommended) 6 A Curve C

Dielectric Strength:

3000 V AC with input to output

Sustainable Offer Status:

Green Premium product

Power Supply Output Current:

0.416666666666667
