Schneider Electric ABLS1A24200 Power Supply 24V 20A 1Ph Optimized

(No reviews yet) Write a Review

Write a Review

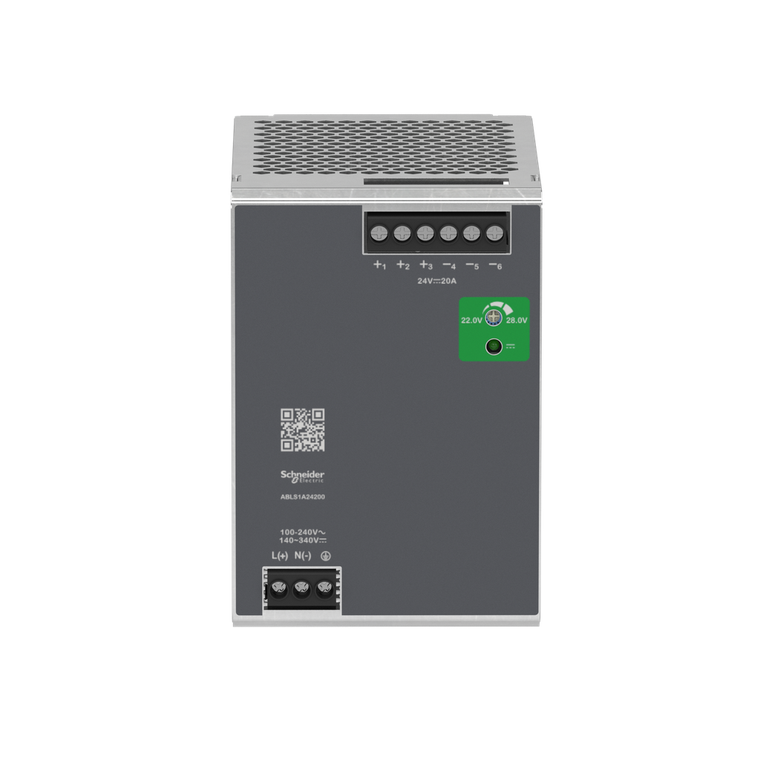

Schneider Electric ABLS1A24200 Power Supply 24V 20A 1Ph Optimized

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ABLS1A24200

UPC:

3606481500267

MPN:

Condition:

New

Enclosure Material:

Aluminum

Mounting Support:

top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || double-profile DIN rail

Environmental Disclosure:

ENVPEP2007005EN

Response Time:

< 1.5 s

Overvoltage Category:

II

Product Certifications:

CE || cUL Listed || cUL Recognized || RCM || CB Scheme || EAC || KC

Sustainable Offer Status:

Green Premium product

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Height:

123.6 mm

Standards:

IEC 62368-1 || EN/IEC 61010-1 || EN 61010-2-201 || EN/IEC 61204-3 || IEC 61000-6-1 || IEC 61000-6-2 || IEC 61000-6-3 || IEC 61000-6-4 || IEC 61000-3-2 || EN 61000-3-3 || UL 62368-1 || UL 61010-1 || UL 61010-2-201 || CSA C22.2 No 62368-1 || CSA C22.2

Residual Ripple:

< 120 mV

Input Protection Type:

integrated fuse (not interchangeable) 10 A || external protection (recommended) 20 A Curve C || external protection (recommended) 16 A Curve B || external protection (recommended) 13 A Curve C

Current Consumption:

< 5.4 A 115 V AC || < 2.7 A 230 V AC || < 5 A 140 V DC

China Rohs Regulation:

X

Meantime Between Failure [Mtbf]:

700000 h at 25 °C, full load conforming to SR 332

Power Supply Type:

regulated switch mode

Depth:

128.5 mm

Network Frequency Limits:

50-60 Hz

Connections - Terminals:

screw connection 0.75...4 mm², AWG 20...AWG 12) without wire end ferrule output || screw connection 0.75...4 mm², AWG 20...AWG 14) with wire end ferrule output || screw connection 0.75...4 mm², AWG 18...AWG 12) without wire end ferrule input || sc

Line And Load Regulation:

< 0.5 % network 0 to 100 % load at 25 °C || < 1 % network full voltage range in line at 25 °C

Inrush Current:

45.0 A 115 V || 90.0 A 230 V

Kw Rating:

480 W

Dielectric Strength:

3000 V AC with input to output

Service Life:

10 year(s)

Power Supply Output Current:

20 A

Shock Resistance:

150 m/s² 11 ms

Circularity Profile:

ENVEOLI2007005EN

Input Voltage:

100...240 V AC single phase || 100...240 V AC phase to phase || 140...340 V DC

Power Dissipation In W:

60 W

Vibration Resistance:

3 mm 2-9 Hz)IEC 60068-2-6 || 10 m/s² 9-200 Hz)IEC 60068-2-6

Operating Altitude:

< 5000 m

Range Of Product:

Modicon Power Supply

Output Coupling:

parallel || serial

Status Led:

1 LED (Green) output voltage

Electrical Shock Protection Class:

class I

Ip Degree Of Protection:

IP20

Efficiency At Full Load:

85...264 V AC without temperature derating || 120...375 V DC without temperature derating

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Power Factor:

0.95 at 115 V AC || 0.95 at 230 V AC

Electromagnetic Emission:

conducted emissions IEC 61000-6-3 || radiated emissions IEC 61000-6-4

Electromagnetic Compatibility:

immunity to electrostatic discharge - test level: 8 kV (contact discharge) conforming to IEC 61000-4-2 || immunity to electrostatic discharge - test level: 15 kV (air discharge) conforming to IEC 61000-4-2 || immunity to conducted RF disturbances - t

Earthing System:

TN || TT || IT

Supply:

SELV IEC 60950-1 || SELV IEC 60204-1 || SELV IEC 60364-4-41

Ambient Air Temperature For Operation:

-20-40 °C without derating mounting position A 115 V AC < 6561.68 ft (2000 m) || -20-50 °C without derating mounting position A 230 V AC < 6561.68 ft (2000 m) || 40-70 °C with current derating of 1.67 % per °C mounting position A 115 V AC < 6561.

Net Weight:

1.25 kg

Output Protection Type:

against overload and short-circuits automatic reset || against over temperature manual reset || against overvoltage manual reset

Product Or Component Type:

power supply

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Rohs Exemption Information:

Yes

Efficiency:

85 % 115 V AC || 88 % 230 V AC

Pollution Degree:

2

Load Capacitance:

8000 µF

Output Voltage Limits:

22...28 V

Width:

85.5 mm

Mercury Free:

Yes

Maximum Leakage Current:

1 mA 240 V AC

Holding Time:

> 20 ms 115 V AC || > 20 ms 230 V AC

Output Voltage:

24 V DC
