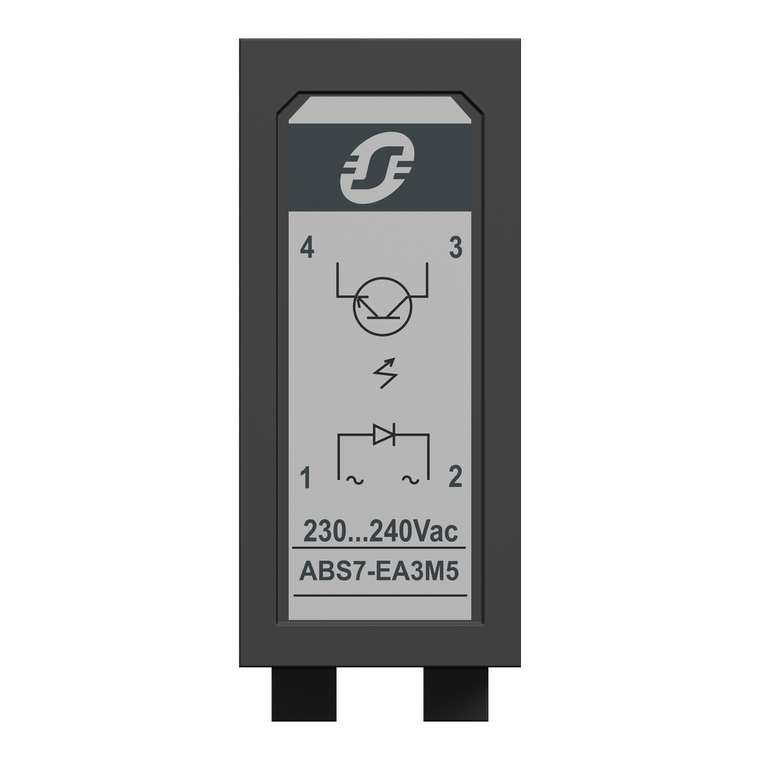

Schneider Electric ABS7EA3M5 Input S.St.Rel.240Vac50Hz Widht 12.5Mm Pack of 4

Schneider Electric ABS7EA3M5 Input S.St.Rel.240Vac50Hz Widht 12.5Mm Pack of 4

Schneider Electric
SKU:
ABS7EA3M5
|
UPC:
3389110720853
Availability:
Contact us to confirm availability and lead times.
$135.20
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This product is part of the Advantys Telefast ABE7, an offer of connection sub-bases for Telefast pre-wired system. This plug in solid state relay offers input relay with ≤20ms from state 0 to 1 and ≤20ms from state 1 to 0 response time. It is a sub-base with discrete input voltage ranges from 230V AC to 240V AC and discrete output voltage ranges from 5V DC to 24V DC. The width of this product is 12mm. It weighs 0.014kg. It is suitable for all types of industrial applications. It is compatible with Modicon ABE7P16F310, ABE7P16F310E and ABE7P16F312 sub-base. Modicon ABE7 means greater simplicity to rationalize wiring in your automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.
Additional Information
Mercury Free:
Yes
Response Time:
<= 20 ms from state 0 to 1 || <= 20 ms from state 1 to 0
Warranty:
18 months
Width Pitch Dimension:
12 mm
China Rohs Regulation:
X
Sustainable Offer Status:
Green Premium product
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Relay Type:
input relay
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Quantity Per Set:
set of 4
Product Compatibility:
ABE7P16F310E || ABE7P16F312 || ABE7P16F310
Circularity Profile:
N/A
Product Or Component Type:
plug-in solid state relay
Net Weight:
0.014 kg
Discrete Input Voltage:
230...240 V AC 50/60 Hz
Rohs Exemption Information:
Yes
Range Of Product:
Advantys Telefast ABE7
Pvc Free:
Yes
Environmental Disclosure:
ENVPEP1409004EN
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Discrete Output Voltage:
5...24 V DC
Datasheet:
View
