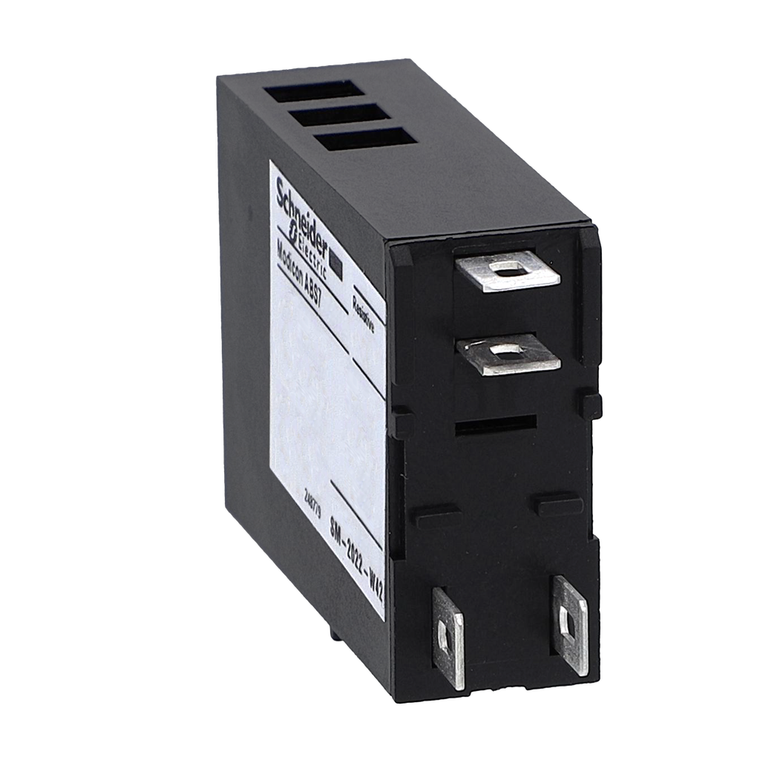

Schneider Electric ABS7SC3BA Output S.St.Rel.24Vdc/2A Width 12.5Mm Pack of 4

Schneider Electric ABS7SC3BA Output S.St.Rel.24Vdc/2A Width 12.5Mm Pack of 4

Schneider Electric
SKU:
ABS7SC3BA
|
UPC:
3.38911E+12
Availability:
Contact us to confirm availability and lead times.
$200.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This product is part of the Modicon ABE7 range, an offer of connection sub-bases for Telefast pre-wired system. This plug-in solid state relay is compatible with Modicon ABE7 connection sub-bases. It is a solid state output relay with a discrete input voltage of 24V DC and a discrete output current of 10A. The response time is ≤0.1ms from state 1 to 0 and ≤0.2ms from state 0 to 1. The width pitch is 12mm. It weighs 0.016kg. It is suitable for all types of industrial applications. This product is suitable for use with Modicon ABE7P16T318, ABE7P16T330, ABE7R16T330, ABE7P16T334, ABE7P16T318E, ABE7P16T330E and ABE7R16T332 sub-base. Modicon ABE7 means greater simplicity to rationalise wiring in your automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.
Additional Information
Environmental Disclosure:
ENVPEP1409004EN
Width Pitch Dimension:
12 mm
Net Weight:
0.016 kg
Voltage State 1 Guaranteed:
18.6 V DC
China Rohs Regulation:
X
Range Of Product:
Advantys Telefast ABE7
Discrete Output Voltage:
24 V DC self-protected
Product Or Component Type:
plug-in solid state relay
Sustainable Offer Status:
Green Premium product
Rohs Exemption Information:
Yes
Mercury Free:
Yes
Current State 0 Guaranteed:
0.4 mA DC
Response Time:
<= 0.1 ms from state 1 to 0 || <= 0.2 ms from state 0 to 1
Discrete Input Voltage:
24 V DC
Circularity Profile:
N/A
Quantity Per Set:
set of 4
Current State 1 Guaranteed:
2.9 mA DC
Voltage State 0 Guaranteed:
3.8 V DC
Pvc Free:
Yes
Discrete Output Current:
2000 mA
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty:
18 months
Product Compatibility:
ABE7P16T318 || ABE7P16T330 || ABE7R16T330 || ABE7P16T334 || ABE7P16T318E || ABE7P16T330E || ABE7R16T332
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Relay Type:
output relay
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
