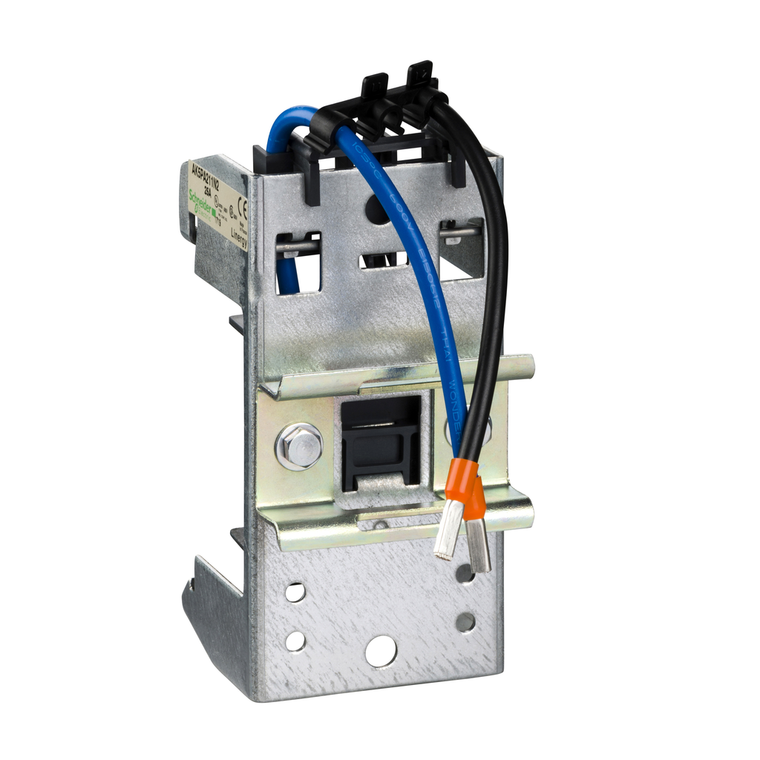

Schneider Electric AK5PA211N2 Plate Bip Ph2 N H105Mm

SKU:

AK5PA211N2

UPC:

3.38911E+12

MPN:

Condition:

New

Availability:

Schneider orders under $1250 will incur a $60 processing fee at checkout

Number Of Cables:

2 4-4 mm² 105 °C

Depth:

61 mm

Circularity Profile:

N/A

Range:

Linergy

Height:

105 mm

China Rohs Regulation:

Pro-active China RoHS declaration (out of China RoHS legal scope)

Poles Description:

1P + N

Toxic Heavy Metal Free:

Yes

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Width:

54 mm

Standards:

IEC 60439

Eu Rohs Directive:

Compliant

[Ith] Conventional Free Air Thermal Current:

25 A

[Ui] Rated Insulation Voltage:

690 V IEC 60439-1

Net Weight:

0.135 kg

I²T On Activation:

200000 A².s

Product Certifications:

UL || LROS (Lloyds register of shipping) || DNV || CSA

Reach Free Of Svhc:

Yes

Mercury Free:

Yes

Rohs Exemption Information:

Yes

Product Name:

HK

Environmental Disclosure:

ENVPEP120206EN

Sustainable Offer Status:

Green Premium product

Warranty:

18 months

9 Mm Pitches:

6

Product Or Component Type:

mounting plate
