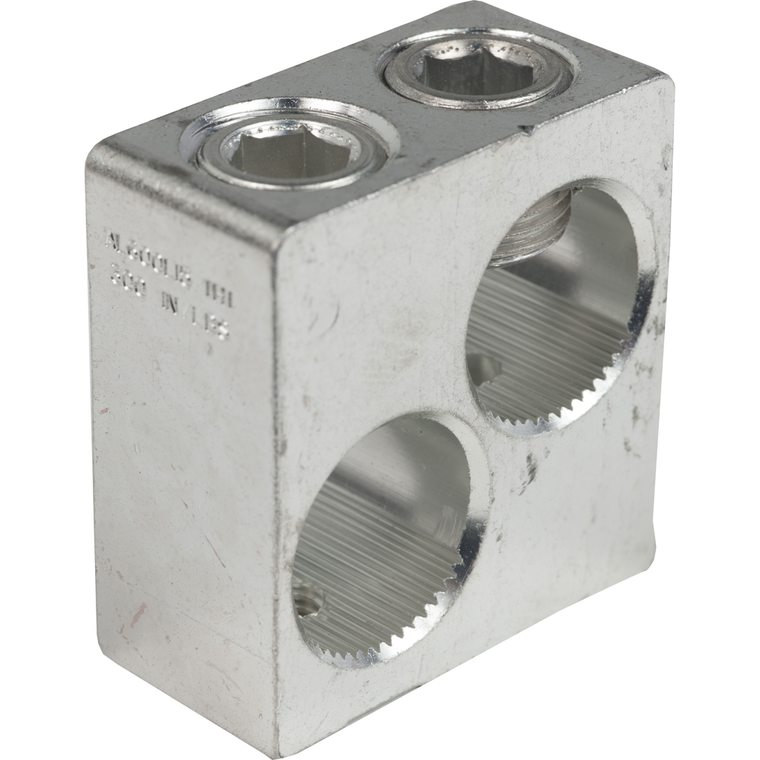

Schneider Electric AL600LI5 Circuit Breaker Mechanical Lug Kit 1

Schneider Electric AL600LI5 Circuit Breaker Mechanical Lug Kit 1

Schneider Electric
SKU:
AL600LI5
|
UPC:
785901060932
Availability:
Contact us to confirm availability and lead times.
$47.10
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
Square D LI molded case circuit breakers provide basic thermal magnetic protection. Their primary functions are to provide a means to manually open a circuit and automatically open a circuit under overload or short circuit conditions. This connector accessory is designed to be used with LI molded circuit breakers with basic thermal magnetic protection with sensor rating 300 to 600A. Terminal wire range for this accessory is (2) 4/0 AWG - 500 kcmil aluminium or copper Connector accessory is coming as 1 lug per kit
Additional Information
Mercury Free:
Yes
Awg Gauge:
AWG 12...AWG 4 aluminium || AWG 4/0...500 kcmil aluminium/copper
Product Or Component Type:
mechanical lug
Sustainable Offer Status:
Green Premium product
Material:
aluminium
California Proposition 65:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Circularity Profile:
ENVEOLI1407012EN
Rohs Exemption Information:
Yes
Warranty:
18 months
Circuit Breaker Type:
FH || LE/LX
Product Certifications:
UL || CSA
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Environmental Disclosure:
ENVPEP1407012EN
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Line Rated Current:
300-600 A
Accessory / Separate Part Category:
connection accessory
Pvc Free:
Yes
Quantity Per Set:
set of 1
Poles Description:
2P
Kcmil Size:
500 kcmil
Location Of Connection:
downstream || upstream
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Catalog:
View
Datasheet:
View
