Schneider Electric AL400LA Circuit Breaker Mechanical Lug Kit 1
Schneider Electric
Schneider Electric AL800MA7 Circuit Breaker Mechanical Lug Kit 1
Schneider Electric
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies

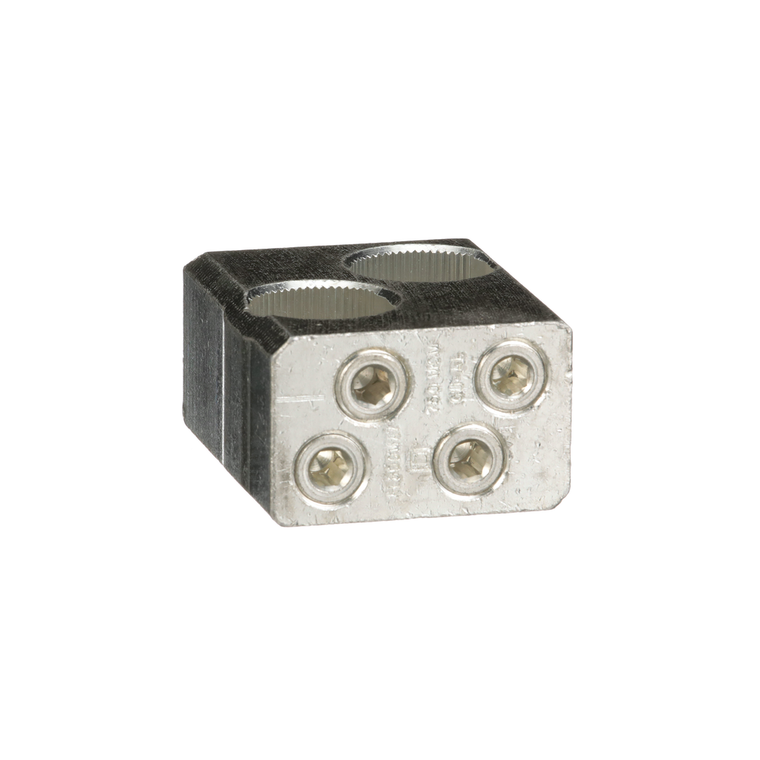

This lug kit is a connector accessory for PowerPact MA, ME, MH, MX, circuit breakers. This is an aluminum tapped lug kit. This accessory has a rated current of 800 amps. The lug kit are for terminal connection and will accept a wire size of 500 to 750 kcmil. This product complies with UL standards. This lug can be used only on standard circuit breakers. This lug has a tightening torque of 34 Nm and a cross section of 240 to 400mm.
- Sustainable Offer Status:
- Green Premium product
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Environmental Disclosure:
- ENVPEP1407012EN
- Warranty:
- 18 months
- Tightening Torque:
- 34-34 N.m 240-400 mm² (500...750 kcmil)
- Rohs Exemption Information:
- Yes
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Mercury Free:
- Yes
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Circularity Profile:
- ENVEOLI1407012EN
- Pvc Free:
- Yes
- Catalog:
- View
- Datasheet:
- View
- QN-QUOTE-REQUEST:
- true
Related Products
-
-

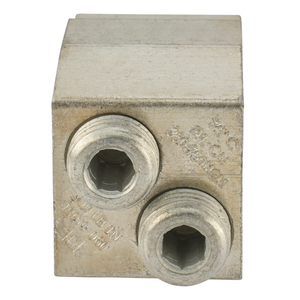

Schneider Electric AL400LH7 Circuit Breaker Mechanical Lug Kit 1
