Schneider Electric AL800MA7 Circuit Breaker Mechanical Lug Kit 1
Schneider Electric
Schneider Electric AL900MA Circuit Breaker Mechanical Lug Kit 1
Schneider Electric
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies

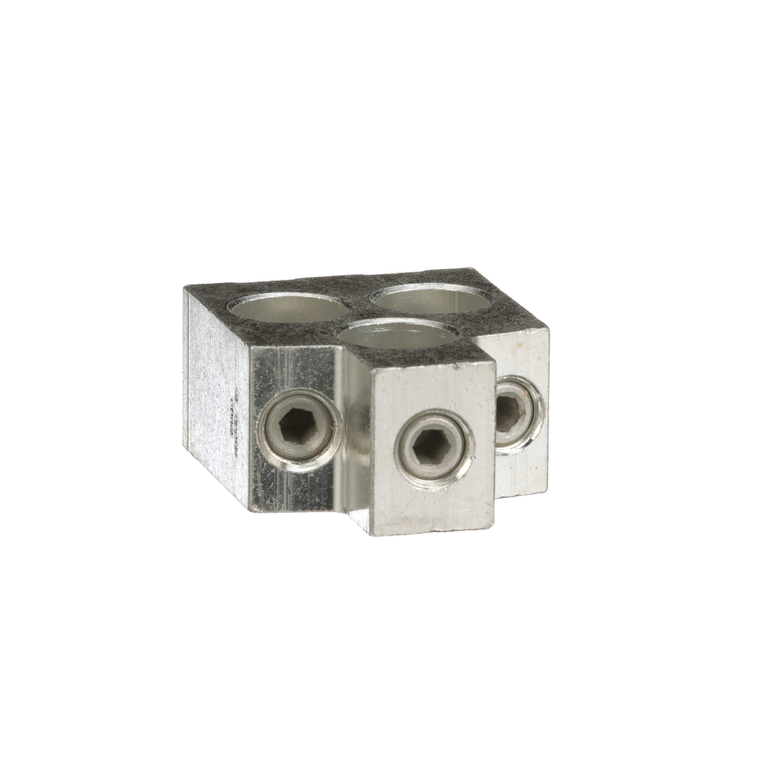

Square D molded case circuit breakers MA family used in industrial enclosures, panelboards, switchboards, busway plug-in units, combination starters, or motor control centers. This connector accessory is designed to be used with MA, MH circuit breakers with fixed thermal and adjustable AC magnetic trip units with sensor rating of 300A to 1000A and for ME, MX breakers with current rating of 300A to 800A. Terminal wire range for this accessory is (3) 3/0 AWG - 500 kcmil aluminium or copper Connector accessory supplied as 1 lug per kit.
- Rohs Exemption Information:
- Yes
- Warranty:
- 18 months
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Sustainable Offer Status:
- Green Premium product
- Mercury Free:
- Yes
- Circularity Profile:
- ENVEOLI1312003EN
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Tightening Torque:
- 34-34 N.m 95-400 mm² (AWG 3/0...750 kcmil)
- Pvc Free:
- Yes
- Environmental Disclosure:
- ENVPEP1312003EN
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Catalog:
- View
- Datasheet:
- View
