Schneider Electric ATS01N103FT Soft Starter 3A 110 480V
Schneider Electric
$120.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies

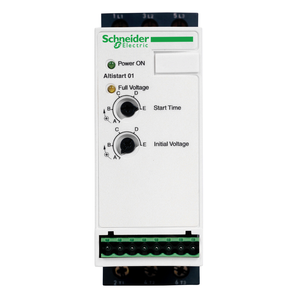

This Altistart 01 soft starter is DIN rail mounted and can feed single or 3-phase asynchronous motors with a rating up to 3A. This Altistart 01 can be used for a motor rated power up to 1.1kW or 1.5hp for 3-phase (110V to 480V AC) and up to 0.37kW for single phase (110V to 230V AC). This DIN rail mounted soft starter is designed to enable smooth start for simple machines such as conveyors, conveyor belts, pumps, fans, compressors, automatic doors and gates, small cranes and belt-driven machinery. It is 22.5mm wide, this makes it one of the smallest soft starters on the market; it can be installed nearly everywhere. It features an Integrated bypass, this reduces noise and decreases heat dissipation. Simple setup with only 2 settings: possible to configure by non-specialists. It provides smooth starting for your machinery, avoiding mechanical stresses and extending their service life.
- Rohs Exemption Information:
- Yes
- Motor Power Kw:
- 0.37 kW, 3 phase 230 V || 0.55 kW, 3 phase 230 V || 1.1 kW, 3 phase 400 V || 0.37 kW, 1 phase 230 V
- Product Certifications:
- CSA || GOST || C-tick || UL || CCC || B44.1-96/ASME A17.5 for starter wired to the motor delta terminal
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Depth:
- 100 mm
- Device Short Name:
- ATS01
- Function Available:
- integrated bypass
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Starting Time:
- 1 s / 100 || 5 s / 20 || adjustable from 1 to 5 s
- Operating Position:
- vertical +/- 10 degree
- Warranty:
- 18 months
- Utilisation Category:
- AC-53B EN/IEC 60947-4-2
- Toxic Heavy Metal Free:
- Yes
- Icl Starter Rating:
- 0.125
- Type Of Start:
- start with voltage ramp
- Discrete Output Current:
- 2 A DC-13 || 3 A AC-15
- Height:
- 100 mm
- Electrical Connection:
- cage type connector - rigid 1 2.5 mm² AWG 14 control circuit || cage type connector - rigid with cable end 1 2.5 mm² AWG 14 power circuit || cage type connector - rigid without cable end 2 1 mm² AWG 17 control circuit || cage type connector - rigi
- Ambient Air Temperature For Storage:
- -25-70 °C EN/IEC 60947-4-2
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Current Consumption:
- 15 A at nominal load
- Range Of Product:
- Altistart 01
- Operating Altitude:
- <= 3280.84 ft (1000 m) without derating || > 3280.84 ft (1000 m) with current derating of 2.2 % per additional 100 m
- Net Weight:
- 0.16 kg
- Supply Voltage Limits:
- 99-528 V
- Shock Resistance:
- 15 gn 11 ms EN/IEC 60068-2-27
- Phase:
- 1 phase
- Reach Free Of Svhc:
- Yes
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Supply Frequency:
- 50...60 Hz - 5...5 %
- Assembly Style:
- with heat sink
- China Rohs Regulation:
- X
- Output Voltage:
- <= power supply voltage
- Power Dissipation In W:
- 19 W in transient state || 4 W at full load and at end of starting
- Product Or Component Type:
- soft starter
- Compatibility Code:
- ATS01N1
- Width:
- 23 mm
- Network Frequency:
- 47.5...63 Hz
- Ip Degree Of Protection:
- IP20
- Product Specific Application:
- simple machine
- Motor Starter Type:
- soft starter
- Tightening Torque:
- 0.8-0.8 N.m
- Product Destination:
- asynchronous motors
- Electromagnetic Compatibility:
- conducted and radiated emissions level B CISPR 11 || conducted and radiated emissions level B IEC 60947-4-2 || damped oscillating waves level 3 IEC 61000-4-12 || electrostatic discharge level 3 IEC 61000-4-2 || EMC immunity level 3 EN 50082-1 || EMC
- Pollution Degree:
- 2 EN/IEC 60947-4-2
- Mercury Free:
- Yes
- Standards:
- EN/IEC 60947-4-2
- Relative Humidity:
- 5-95 % without condensation or dripping water EN/IEC 60068-2-3
- Starting Torque:
- 30...80 % of starting torque of motor connected directly on the line supply
- Vibration Resistance:
- 1 gn 13-150 Hz)EN/IEC 60068-2-6 || 1.5 mm peak to peak 3-13 Hz)EN/IEC 60068-2-6
- Power Range:
- 0-0.5 kW 200-240 V 1 phase || 0-0.5 kW 200-240 V 3 phase || 0.55-1 kW 200-240 V 3 phase || 1.1-2 kW 380-440 V 3 phase
- Marking:
- CE
- [Us] Rated Supply Voltage:
- 110...480 V - 10...10 %
- Ambient Air Temperature For Operation:
- -10-40 °C without derating) || 40-50 °C with current derating of 2 % per °C)
- [Uc] Control Circuit Voltage:
- 110 V AC +/- 10 % 30 mA || 24 V AC/DC +/- 10 % 25 mA || 240 V AC +/- 10 % 65 mA
- Maximum Horse Power Rating:
- 0.5 hp, 3 phase 230 V || 0.5 hp, 3 phase 460 V || 1.5 hp, 3 phase 460 V
- Catalog:
- View
- Datasheet:
- View
