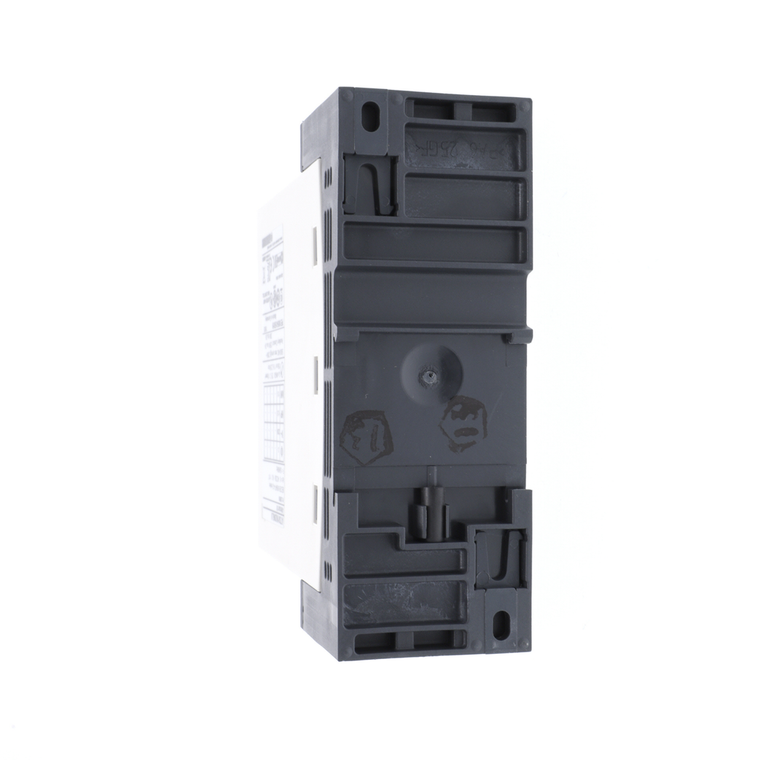

Schneider Electric ATS01N206LU Soft-Start Stop 6A 200 240V
Schneider Electric
$172.37
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Altistart 01 soft starter is DIN rail mounted and can feed 3-phase asynchronous motors with a rating up to 6A. This Altistart 01 can be used for a motor rated power up to 1.1kW or 1.5hp for 3-phase (200V to 240V AC). This DIN rail mounted soft starter is designed to enable smooth start for simple machines such as conveyors, conveyor belts, pumps, fans, compressors, automatic doors and gates, small cranes and belt-driven machinery. It is 45mm wide, this makes it one of the smallest soft starters on the market, it can be installed nearly everywhere. It features an Integrated bypass, this reduces noise and decreases heat dissipation. Simple setup with only 2 settings, possible to configure by non-specialists. It provides smooth starting for your machinery, avoiding mechanical stresses and extending their service life.
- Ambient Air Temperature For Storage:
- -25-70 °C EN/IEC 60947-4-2
- Operating Position:
- vertical +/- 10 degree
- Net Weight:
- 0.42 kg
- Height:
- 124 mm
- Compatibility Code:
- ATS01N2
- Product Specific Application:
- simple machine
- Range Of Product:
- Altistart 01
- Mercury Free:
- Yes
- Shock Resistance:
- 15 gn 11 ms EN/IEC 60068-2-27
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Discrete Output Type:
- open collector logic LO1 end of starting signal || relay outputs R1A, R1C NO
- Toxic Heavy Metal Free:
- Yes
- Power Dissipation In W:
- 4 W at full load and at end of starting || 64 W in transient state
- Function Available:
- integrated bypass
- Phase:
- 3 phase
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Assembly Style:
- with heat sink
- Ambient Air Temperature For Operation:
- -10-40 °C without derating) || 40-50 °C with current derating of 2 % per °C)
- Electromagnetic Compatibility:
- conducted and radiated emissions level B CISPR 11 || conducted and radiated emissions level B IEC 60947-4-2 || damped oscillating waves level 3 IEC 61000-4-12 || electrostatic discharge level 3 IEC 61000-4-2 || EMC immunity level 3 EN 50082-1 || EMC
- Maximum Horse Power Rating:
- 1 hp, 3 phase 200...240 V || 1.5 hp, 3 phase 200...240 V
- Discrete Input Logic:
- positive LI1, LI2, BOOST < 5 V <= 0.2 mA > 13 V, >= 0.5 mA
- Motor Starter Type:
- soft starter
- Product Certifications:
- GOST || B44.1-96/ASME A17.5 for starter wired to the motor delta terminal || CSA || UL || CCC || C-tick
- Motor Power Kw:
- 0.75 kW, 3 phase 200...240 V || 1.1 kW, 3 phase 200...240 V
- Current Consumption:
- 30 A at nominal load
- Minimum Switching Current:
- 10 mA 6 V DC relay outputs
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Discrete Output Current:
- 2 A DC-13 || 3 A AC-15
- Discrete Input Type:
- logic LI1, LI2, BOOST) stop, run and boost on start-up functions <= 8 mA 27 kOhm
- Discrete Input Voltage:
- 24...40 V
- Device Short Name:
- ATS01
- Ip Degree Of Protection:
- IP20
- Standards:
- EN/IEC 60947-4-2
- Supply Voltage Limits:
- 180-264 V
- Reach Free Of Svhc:
- Yes
- Width:
- 45 mm
- Icl Starter Rating:
- 0.25
- Depth:
- 131 mm
- Network Frequency:
- 47.5...63 Hz
- China Rohs Regulation:
- X
- Electrical Connection:
- 4 mm screw clamp terminal - rigid 1 1...10 mm² AWG 8 power circuit || screw connector - rigid without cable end 1 0.5...2.5 mm² AWG 14 control circuit || 4 mm screw clamp terminal - rigid 2 1...6 mm² AWG 10 power circuit || screw connector - rigid
- Display Type:
- 1 LED Green)starter powered up || 1 LED Yellow)nominal voltage reached
- Discrete Output Voltage:
- 24 V 6...30 V) open collector logic
- Utilisation Category:
- AC-53B EN/IEC 60947-4-2
- Starting Torque:
- 30...80 % of starting torque of motor connected directly on the line supply
- Maximum Switching Current:
- relay outputs 2 A 250 V AC cos phi = 0.5 20 ms inductive || relay outputs 2 A 30 V DC cos phi = 0.5 20 ms inductive
- Type Of Start:
- start with voltage ramp
- Deceleration Time Symb:
- adjustable from 1 to 10 s
- Pollution Degree:
- 2 EN/IEC 60947-4-2
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Product Destination:
- asynchronous motors
- Warranty:
- 18 months
- Starting Time:
- 1 s / 100 || 5 s / 20 || 10 s / 10 || adjustable from 1 to 10 s
- Power Range:
- 0.55-1 kW 200-240 V 3 phase || 1.1-2 kW 200-240 V 3 phase
- Output Voltage:
- <= power supply voltage
- [Uc] Control Circuit Voltage:
- built into the starter
- Vibration Resistance:
- 1 gn 13-150 Hz)EN/IEC 60068-2-6 || 1.5 mm peak to peak 3-13 Hz)EN/IEC 60068-2-6
- Operating Altitude:
- <= 3280.84 ft (1000 m) without derating || > 3280.84 ft (1000 m) with current derating of 2.2 % per additional 100 m
- Supply Frequency:
- 50...60 Hz - 5...5 %
- [Us] Rated Supply Voltage:
- 200...240 V - 10...10 %
- Rohs Exemption Information:
- Yes
- Relative Humidity:
- 5-95 % without condensation or dripping water EN/IEC 60068-2-3
- Marking:
- CE
- Product Or Component Type:
- soft starter
- Tightening Torque:
- 0.5-0.5 N.m || 1.9-2.5 N.m
