Schneider Electric ATS01N206RT Soft-Start Stop 6A 440 480V
Schneider Electric
$159.60
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

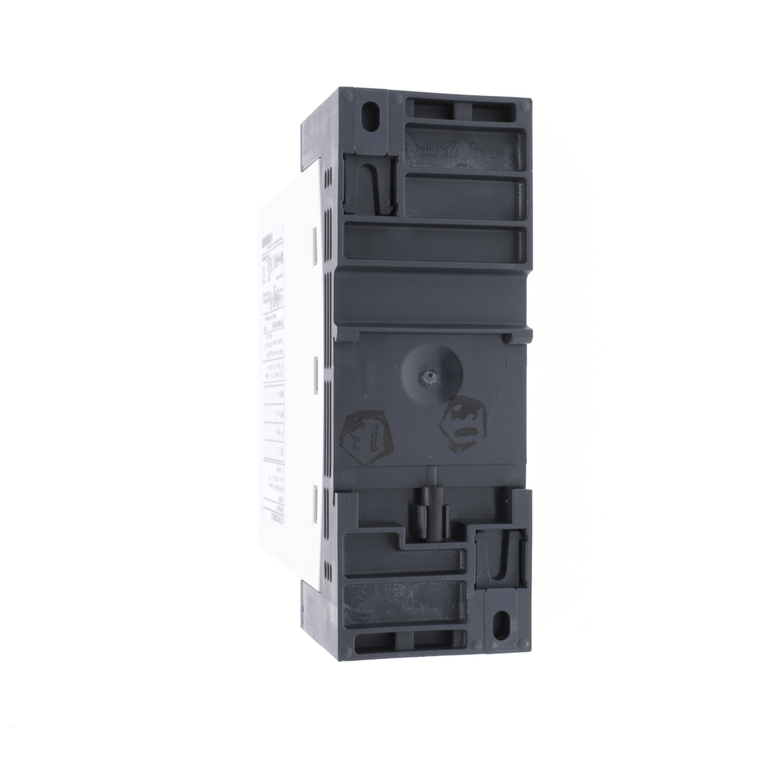

Schneider Electric ATS01N206RT Soft-Start Stop 6A 440 480V
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Altistart 01 soft starter is DIN rail mounted and can feed 3-phase asynchronous motors with a rating up to 6A. This Altistart 01 can be used for a motor rated power up to 1.1kW or 1.5hp for 3-phase (200V to 240V AC). This DIN rail mounted soft starter is designed to enable smooth start for simple machines such as conveyors, conveyor belts, pumps, fans, compressors, automatic doors and gates, small cranes and belt-driven machinery. It is 45mm wide, this makes it one of the smallest soft starters on the market; it can be installed nearly everywhere. It features an Integrated bypass, this reduces noise and decreases heat dissipation. Simple setup with only 2 settings: possible to configure by non-specialists. It provides smooth starting for your machinery, avoiding mechanical stresses and extending their service life.
- Discrete Input Voltage:
- 24...40 V
- Discrete Output Voltage:
- 24 V 6...30 V) open collector logic
- Mercury Free:
- Yes
- Icl Starter Rating:
- 0.25
- [Us] Rated Supply Voltage:
- 460...480 V - 10...10 %
- Tightening Torque:
- 1.9-2.5 N.m || 0.5-0.5 N.m
- Shock Resistance:
- 15 gn 11 ms EN/IEC 60068-2-27
- Depth:
- 131 mm
- Discrete Output Current:
- 2 A DC-13 || 3 A AC-15
- Maximum Horse Power Rating:
- 2 hp, 3 phase 460...480 V || 3 hp, 3 phase 460...480 V
- Assembly Style:
- with heat sink
- Output Voltage:
- <= power supply voltage
- Toxic Heavy Metal Free:
- Yes
- Phase:
- 3 phase
- Ambient Air Temperature For Operation:
- -10-40 °C without derating) || 40-50 °C with current derating of 2 % per °C)
- Electrical Connection:
- 4 mm screw clamp terminal - rigid 1 1...10 mm² AWG 8 power circuit || screw connector - rigid without cable end 1 0.5...2.5 mm² AWG 14 control circuit || 4 mm screw clamp terminal - rigid 2 1...6 mm² AWG 10 power circuit || screw connector - rigid
- Discrete Input Logic:
- positive LI1, LI2, BOOST < 5 V <= 0.2 mA > 13 V, >= 0.5 mA
- Current Consumption:
- 30 A at nominal load
- Starting Time:
- 1 s / 100 || 5 s / 20 || 10 s / 10 || adjustable from 1 to 10 s
- Ip Degree Of Protection:
- IP20
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Maximum Switching Current:
- relay outputs 2 A 250 V AC cos phi = 0.5 20 ms inductive || relay outputs 2 A 30 V DC cos phi = 0.5 20 ms inductive
- Electromagnetic Compatibility:
- conducted and radiated emissions level B CISPR 11 || conducted and radiated emissions level B IEC 60947-4-2 || damped oscillating waves level 3 IEC 61000-4-12 || electrostatic discharge level 3 IEC 61000-4-2 || EMC immunity level 3 EN 50082-1 || EMC
- Height:
- 124 mm
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Supply Frequency:
- 50...60 Hz - 5...5 %
- Net Weight:
- 0.42 kg
- Power Dissipation In W:
- 4 W at full load and at end of starting || 64 W in transient state
- Product Destination:
- asynchronous motors
- Discrete Input Type:
- logic LI1, LI2, BOOST) stop, run and boost on start-up functions <= 8 mA 27 kOhm
- Vibration Resistance:
- 1 gn 13-150 Hz)EN/IEC 60068-2-6 || 1.5 mm peak to peak 3-13 Hz)EN/IEC 60068-2-6
- Discrete Output Type:
- open collector logic LO1 end of starting signal || relay outputs R1A, R1C NO
- Range Of Product:
- Altistart 01
- Minimum Switching Current:
- 10 mA 6 V DC relay outputs
- Display Type:
- 1 LED Green)starter powered up || 1 LED Yellow)nominal voltage reached
- [Uc] Control Circuit Voltage:
- built into the starter
- Network Frequency:
- 47.5...63 Hz
- Supply Voltage Limits:
- 414-528 V
- Product Specific Application:
- simple machine
- Compatibility Code:
- ATS01N2
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Type Of Start:
- start with voltage ramp
- Product Certifications:
- CCC || UL || GOST || C-tick || CSA || B44.1-96/ASME A17.5 for starter wired to the motor delta terminal
- Product Or Component Type:
- soft starter
- Utilisation Category:
- AC-53B EN/IEC 60947-4-2
- Deceleration Time Symb:
- adjustable from 1 to 10 s
- China Rohs Regulation:
- X
- Pollution Degree:
- 2 EN/IEC 60947-4-2
- Operating Position:
- vertical +/- 10 degree
- Ambient Air Temperature For Storage:
- -25-70 °C EN/IEC 60947-4-2
- Standards:
- EN/IEC 60947-4-2
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Device Short Name:
- ATS01
- Operating Altitude:
- <= 3280.84 ft (1000 m) without derating || > 3280.84 ft (1000 m) with current derating of 2.2 % per additional 100 m
- Marking:
- CE
- Relative Humidity:
- 5-95 % without condensation or dripping water EN/IEC 60068-2-3
- Warranty:
- 18 months
- Starting Torque:
- 30...80 % of starting torque of motor connected directly on the line supply
- Width:
- 45 mm
- Rohs Exemption Information:
- Yes
- Reach Free Of Svhc:
- Yes
- Function Available:
- integrated bypass
