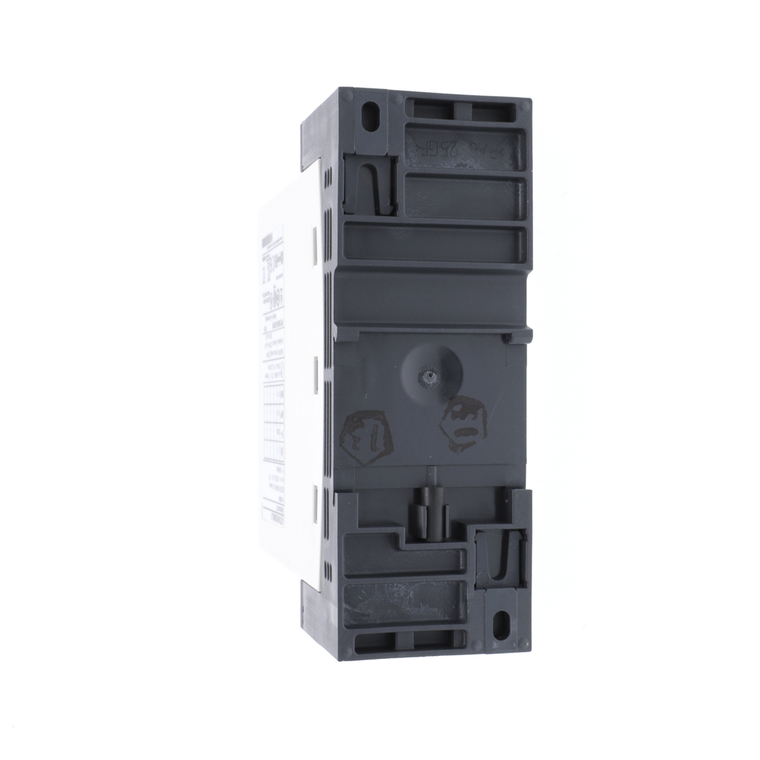

Schneider Electric ATS01N209QN Soft-Start Stop 9A 380 415V
Schneider Electric
$182.40
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Altistart 01 soft starter is DIN rail mounted and can feed 3-phase asynchronous motors with a rating up to 9A. This Altistart 01 can be used for a motor rated power up to 1.5kW or 2hp for 3-phase (200V to 240V AC). This DIN rail mounted soft starter is designed to enable smooth start for simple machines such as conveyors, conveyor belts, pumps, fans, compressors, automatic doors and gates, small cranes and belt-driven machinery. It is 45mm wide, this makes it one of the smallest soft starters on the market; it can be installed nearly everywhere. It features an Integrated bypass, this reduces noise and decreases heat dissipation. Simple setup with only 2 settings: possible to configure by non-specialists. It provides smooth starting for your machinery, avoiding mechanical stresses and extending their service life.
- [Uc] Control Circuit Voltage:
- built into the starter
- Starting Time:
- 1 s / 100 || 5 s / 20 || 10 s / 10 || adjustable from 1 to 10 s
- Warranty:
- 18 months
- Minimum Switching Current:
- 10 mA 6 V DC relay outputs
- Discrete Output Type:
- open collector logic LO1 end of starting signal || relay outputs R1A, R1C NO
- China Rohs Regulation:
- X
- Motor Power Kw:
- 4 kW, 3 phase 380...415 V
- Width:
- 45 mm
- Operating Position:
- vertical +/- 10 degree
- Ambient Air Temperature For Storage:
- -25-70 °C EN/IEC 60947-4-2
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Ip Degree Of Protection:
- IP20
- Marking:
- CE
- Compatibility Code:
- ATS01N2
- Ambient Air Temperature For Operation:
- -10-40 °C without derating) || 40-50 °C with current derating of 2 % per °C)
- Network Frequency:
- 47.5...63 Hz
- Current Consumption:
- 45 A at nominal load
- Device Short Name:
- ATS01
- Product Specific Application:
- simple machine
- Operating Altitude:
- <= 3280.84 ft (1000 m) without derating || > 3280.84 ft (1000 m) with current derating of 2.2 % per additional 100 m
- Motor Starter Type:
- soft starter
- Discrete Input Voltage:
- 24...40 V
- Deceleration Time Symb:
- adjustable from 1 to 10 s
- Shock Resistance:
- 15 gn 11 ms EN/IEC 60068-2-27
- [Us] Rated Supply Voltage:
- 380...415 V - 10...10 %
- Type Of Start:
- start with voltage ramp
- Icl Starter Rating:
- 0.375
- Rohs Exemption Information:
- Yes
- Phase:
- 3 phase
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Assembly Style:
- with heat sink
- Starting Torque:
- 30...80 % of starting torque of motor connected directly on the line supply
- Mercury Free:
- Yes
- Product Or Component Type:
- soft starter
- Relative Humidity:
- 5-95 % without condensation or dripping water EN/IEC 60068-2-3
- Product Destination:
- asynchronous motors
- Supply Frequency:
- 50...60 Hz - 5...5 %
- Pollution Degree:
- 2 EN/IEC 60947-4-2
- Discrete Output Voltage:
- 24 V 6...30 V) open collector logic
- Standards:
- EN/IEC 60947-4-2
- Net Weight:
- 0.42 kg
- Output Voltage:
- <= power supply voltage
- Depth:
- 131 mm
- Toxic Heavy Metal Free:
- Yes
- Tightening Torque:
- 0.5-0.5 N.m || 1.9-2.5 N.m
- Height:
- 124 mm
- Power Dissipation In W:
- 4 W at full load and at end of starting || 94 W in transient state
- Discrete Output Current:
- 2 A DC-13 || 3 A AC-15
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Maximum Switching Current:
- relay outputs 2 A 250 V AC cos phi = 0.5 20 ms inductive || relay outputs 2 A 30 V DC cos phi = 0.5 20 ms inductive
- Reach Free Of Svhc:
- Yes
- Product Certifications:
- GOST || B44.1-96/ASME A17.5 for starter wired to the motor delta terminal || CCC || CSA || C-tick || UL
- Electrical Connection:
- 4 mm screw clamp terminal - rigid 1 1...10 mm² AWG 8 power circuit || screw connector - rigid without cable end 1 0.5...2.5 mm² AWG 14 control circuit || 4 mm screw clamp terminal - rigid 2 1...6 mm² AWG 10 power circuit || screw connector - rigid
- Display Type:
- 1 LED Green)starter powered up || 1 LED Yellow)nominal voltage reached
- Vibration Resistance:
- 1 gn 13-150 Hz)EN/IEC 60068-2-6 || 1.5 mm peak to peak 3-13 Hz)EN/IEC 60068-2-6
- Supply Voltage Limits:
- 342-456 V
- Discrete Input Type:
- logic LI1, LI2, BOOST) stop, run and boost on start-up functions <= 8 mA 27 kOhm
- Utilisation Category:
- AC-53B EN/IEC 60947-4-2
- Function Available:
- integrated bypass
- Electromagnetic Compatibility:
- conducted and radiated emissions level B CISPR 11 || conducted and radiated emissions level B IEC 60947-4-2 || damped oscillating waves level 3 IEC 61000-4-12 || electrostatic discharge level 3 IEC 61000-4-2 || EMC immunity level 3 EN 50082-1 || EMC
- Range Of Product:
- Altistart 01
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Power Range:
- 4-6 kW 380-440 V 3 phase
- Discrete Input Logic:
- positive LI1, LI2, BOOST < 5 V <= 0.2 mA > 13 V, >= 0.5 mA
