Schneider Electric ATS01N212LU Soft-Start Stop 12A 200 240V
Schneider Electric
$210.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

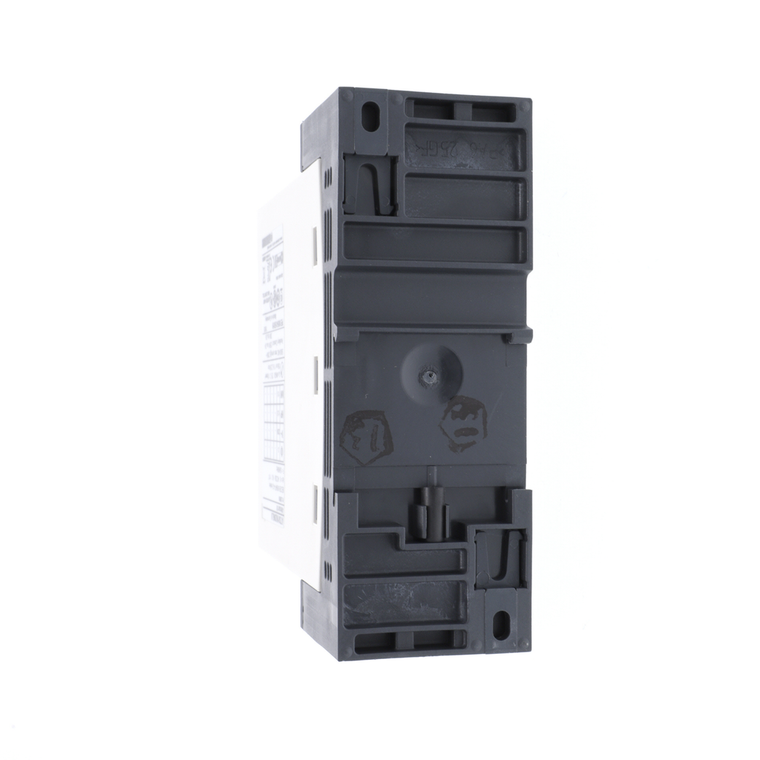

Schneider Electric ATS01N212LU Soft-Start Stop 12A 200 240V
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Altistart 01 soft starter is DIN rail mounted and can feed 3-phase asynchronous motors with a rating up to 12A. This Altistart 01 can be used for a motor rated power up to 3kW or 3hp for 3-phase (200V to 240V AC). This DIN rail mounted soft starter is designed to enable smooth start for simple machines such as conveyors, conveyor belts, pumps, fans, compressors, automatic doors and gates, small cranes and belt-driven machinery. It is 45mm wide, this makes it one of the smallest soft starters on the market, it can be installed nearly everywhere. It features an Integrated bypass, this reduces noise and decreases heat dissipation. Simple setup with only 2 settings, possible to configure by non-specialists. It provides smooth starting for your machinery, avoiding mechanical stresses and extending their service life.
- Type Of Start:
- start with voltage ramp
- Maximum Horse Power Rating:
- 3 hp, 3 phase 200...240 V
- Marking:
- CE
- Width:
- 45 mm
- Mercury Free:
- Yes
- Rohs Exemption Information:
- Yes
- Ambient Air Temperature For Storage:
- -25-70 °C EN/IEC 60947-4-2
- Range Of Product:
- Altistart 01
- Device Short Name:
- ATS01
- Operating Position:
- vertical +/- 10 degree
- Starting Torque:
- 30...80 % of starting torque of motor connected directly on the line supply
- Operating Altitude:
- <= 3280.84 ft (1000 m) without derating || > 3280.84 ft (1000 m) with current derating of 2.2 % per additional 100 m
- Power Dissipation In W:
- 4 W at full load and at end of starting || 124 W in transient state
- Compatibility Code:
- ATS01N2
- Depth:
- 131 mm
- Power Range:
- 2.2-3 kW 200-240 V 3 phase
- Product Certifications:
- C-tick || GOST || UL || CCC || B44.1-96/ASME A17.5 for starter wired to the motor delta terminal || CSA
- Discrete Output Current:
- 2 A DC-13 || 3 A AC-15
- Starting Time:
- adjustable from 1 to 10 s
- Utilisation Category:
- AC-53B EN/IEC 60947-4-2
- Discrete Input Logic:
- positive LI1, LI2, BOOST < 5 V <= 0.2 mA > 13 V, >= 0.5 mA
- Discrete Input Voltage:
- 24...40 V
- Standards:
- EN/IEC 60947-4-2
- Motor Starter Type:
- soft starter
- Ambient Air Temperature For Operation:
- -10-40 °C without derating) || 40-50 °C with current derating of 2 % per °C)
- Discrete Input Type:
- logic LI1, LI2, BOOST) stop, run and boost on start-up functions <= 8 mA 27 kOhm
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Discrete Output Voltage:
- 24 V 6...30 V) open collector logic
- China Rohs Regulation:
- X
- Electrical Connection:
- 4 mm screw clamp terminal - rigid 1 1...10 mm² AWG 8 power circuit || screw connector - rigid without cable end 1 0.5...2.5 mm² AWG 14 control circuit || 4 mm screw clamp terminal - rigid 2 1...6 mm² AWG 10 power circuit || screw connector - rigid
- Icl Starter Rating:
- 0
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Minimum Switching Current:
- 10 mA 6 V DC relay outputs
- [Uc] Control Circuit Voltage:
- built into the starter
- Supply Frequency:
- 50...60 Hz - 5...5 %
- Output Voltage:
- <= power supply voltage
- Pollution Degree:
- 2 EN/IEC 60947-4-2
- Display Type:
- 1 LED Green)starter powered up || 1 LED Yellow)nominal voltage reached
- Warranty:
- 18 months
- Motor Power Kw:
- 3 kW, 3 phase 200...240 V || 2.2 kW, 3 phase 200...240 V
- Toxic Heavy Metal Free:
- Yes
- Tightening Torque:
- 0.5-0.5 N.m || 1.9-2.5 N.m
- Electromagnetic Compatibility:
- conducted and radiated emissions level B CISPR 11 || conducted and radiated emissions level B IEC 60947-4-2 || damped oscillating waves level 3 IEC 61000-4-12 || electrostatic discharge level 3 IEC 61000-4-2 || EMC immunity level 3 EN 50082-1 || EMC
- Vibration Resistance:
- 1 gn 13-150 Hz)EN/IEC 60068-2-6 || 1.5 mm peak to peak 3-13 Hz)EN/IEC 60068-2-6
- [Us] Rated Supply Voltage:
- 200...240 V - 10...10 %
- Net Weight:
- 0.42 kg
- Ip Degree Of Protection:
- IP20
- Relative Humidity:
- 5-95 % without condensation or dripping water EN/IEC 60068-2-3
- Product Or Component Type:
- soft starter
- Network Frequency:
- 47.5...63 Hz
- Shock Resistance:
- 15 gn 11 ms EN/IEC 60068-2-27
- Reach Free Of Svhc:
- Yes
- Current Consumption:
- 60 A at nominal load
- Product Specific Application:
- simple machine
- Product Destination:
- asynchronous motors
- Assembly Style:
- with heat sink
- Function Available:
- integrated bypass
- Deceleration Time Symb:
- adjustable from 1 to 10 s
- Height:
- 124 mm
- Phase:
- 3 phase
- Discrete Output Type:
- open collector logic LO1 end of starting signal || relay outputs R1A, R1C NO
- Maximum Switching Current:
- relay outputs 2 A 250 V AC cos phi = 0.5 20 ms inductive || relay outputs 2 A 30 V DC cos phi = 0.5 20 ms inductive
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
