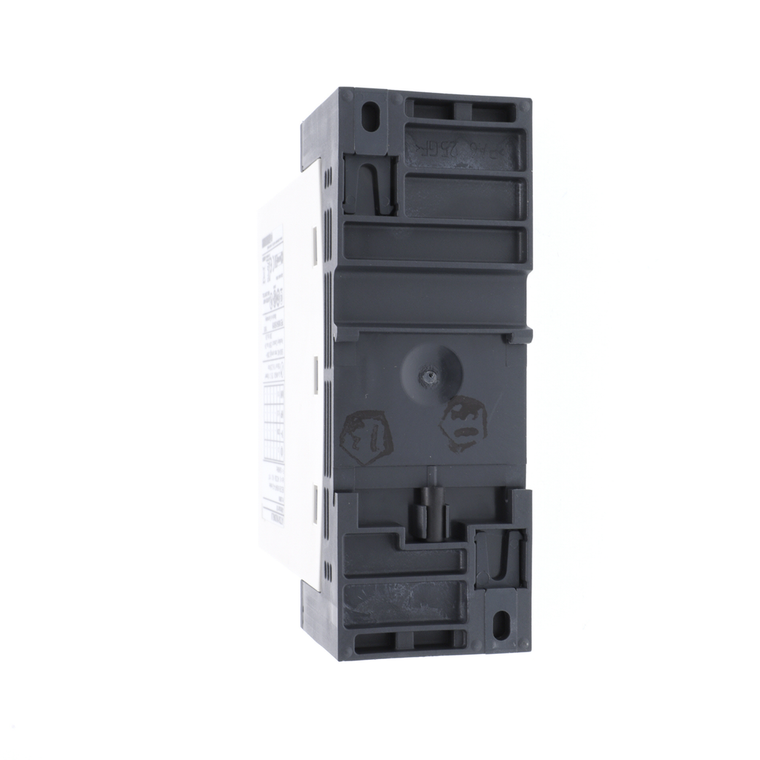

Schneider Electric ATS01N212RT Soft-Start Stop 12A 440 480V
Schneider Electric
$210.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Altistart 01 soft starter is DIN rail mounted and can feed 3-phase asynchronous motors with a rating up to 12A. This Altistart 01 can be used for a motor rated power up to 3kW or 3hp for 3-phase (200V to 240V AC). This DIN rail mounted soft starter is designed to enable smooth start for simple machines such as conveyors, conveyor belts, pumps, fans, compressors, automatic doors and gates, small cranes and belt-driven machinery. It is 45mm wide, this makes it one of the smallest soft starters on the market; it can be installed nearly everywhere. It features an Integrated bypass, this reduces noise and decreases heat dissipation. Simple setup with only 2 settings: possible to configure by non-specialists. It provides smooth starting for your machinery, avoiding mechanical stresses and extending their service life.
- Maximum Horse Power Rating:
- 7.5 hp, 3 phase 460...480 V
- Discrete Input Type:
- logic LI1, LI2, BOOST) stop, run and boost on start-up functions <= 8 mA 27 kOhm
- Net Weight:
- 0.42 kg
- Height:
- 124 mm
- Type Of Start:
- start with voltage ramp
- Deceleration Time Symb:
- adjustable from 1 to 10 s
- Discrete Output Voltage:
- 24 V 6...30 V) open collector logic
- Maximum Switching Current:
- relay outputs 2 A 250 V AC cos phi = 0.5 20 ms inductive || relay outputs 2 A 30 V DC cos phi = 0.5 20 ms inductive
- Electrical Connection:
- 4 mm screw clamp terminal - rigid 1 1...10 mm² AWG 8 power circuit || screw connector - rigid without cable end 1 0.5...2.5 mm² AWG 14 control circuit || 4 mm screw clamp terminal - rigid 2 1...6 mm² AWG 10 power circuit || screw connector - rigid
- Discrete Output Type:
- open collector logic LO1 end of starting signal || relay outputs R1A, R1C NO
- Assembly Style:
- with heat sink
- Rohs Exemption Information:
- Yes
- [Us] Rated Supply Voltage:
- 460...480 V - 10...10 %
- Marking:
- CE
- Power Dissipation In W:
- 4 W at full load and at end of starting || 124 W in transient state
- Width:
- 45 mm
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Network Frequency:
- 47.5...63 Hz
- Current Consumption:
- 60 A at nominal load
- China Rohs Regulation:
- X
- Phase:
- 3 phase
- Device Short Name:
- ATS01
- Electromagnetic Compatibility:
- conducted and radiated emissions level B CISPR 11 || conducted and radiated emissions level B IEC 60947-4-2 || damped oscillating waves level 3 IEC 61000-4-12 || electrostatic discharge level 3 IEC 61000-4-2 || EMC immunity level 3 EN 50082-1 || EMC
- Function Available:
- integrated bypass
- Relative Humidity:
- 5-95 % without condensation or dripping water EN/IEC 60068-2-3
- Toxic Heavy Metal Free:
- Yes
- Compatibility Code:
- ATS01N2
- Icl Starter Rating:
- 0
- Supply Frequency:
- 50...60 Hz - 5...5 %
- Pollution Degree:
- 2 EN/IEC 60947-4-2
- Supply Voltage Limits:
- 414-528 V
- Tightening Torque:
- 1.9-2.5 N.m || 0.5-0.5 N.m
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Ip Degree Of Protection:
- IP20
- Discrete Input Logic:
- positive LI1, LI2, BOOST < 5 V <= 0.2 mA > 13 V, >= 0.5 mA
- Warranty:
- 18 months
- Product Specific Application:
- simple machine
- Display Type:
- 1 LED Green)starter powered up || 1 LED Yellow)nominal voltage reached
- Product Certifications:
- UL || B44.1-96/ASME A17.5 for starter wired to the motor delta terminal || CSA || CCC || C-tick || GOST
- [Uc] Control Circuit Voltage:
- built into the starter
- Ambient Air Temperature For Operation:
- -10-40 °C without derating) || 40-50 °C with current derating of 2 % per °C)
- Product Destination:
- asynchronous motors
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Operating Position:
- vertical +/- 10 degree
- Reach Free Of Svhc:
- Yes
- Mercury Free:
- Yes
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Minimum Switching Current:
- 10 mA 6 V DC relay outputs
- Starting Torque:
- 30...80 % of starting torque of motor connected directly on the line supply
- Ambient Air Temperature For Storage:
- -25-70 °C EN/IEC 60947-4-2
- Depth:
- 131 mm
- Operating Altitude:
- <= 3280.84 ft (1000 m) without derating || > 3280.84 ft (1000 m) with current derating of 2.2 % per additional 100 m
- Standards:
- EN/IEC 60947-4-2
- Discrete Output Current:
- 2 A DC-13 || 3 A AC-15
- Starting Time:
- adjustable from 1 to 10 s
- Product Or Component Type:
- soft starter
- Range Of Product:
- Altistart 01
- Shock Resistance:
- 15 gn 11 ms EN/IEC 60068-2-27
- Output Voltage:
- <= power supply voltage
- Utilisation Category:
- AC-53B EN/IEC 60947-4-2
- Vibration Resistance:
- 1 gn 13-150 Hz)EN/IEC 60068-2-6 || 1.5 mm peak to peak 3-13 Hz)EN/IEC 60068-2-6
