Schneider Electric ATS01N232RT Soft-Start Stop 32A 440 480V
Schneider Electric
$360.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

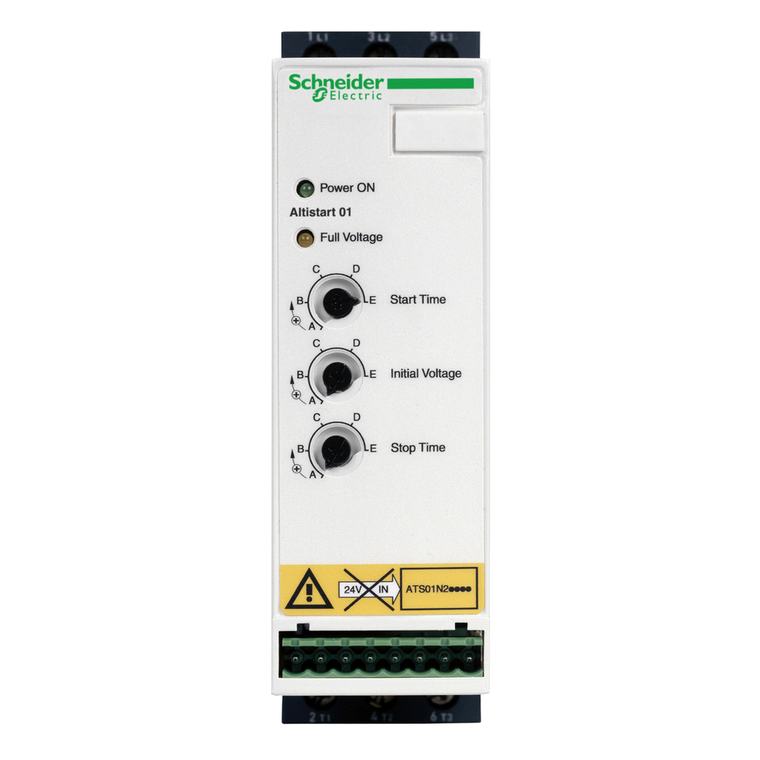

Schneider Electric ATS01N232RT Soft-Start Stop 32A 440 480V
This Altistart 01 soft starter is DIN rail mounted and can feed 3-phase asynchronous motors with a rating up to 32A. This Altistart 01 can be used for a motor rated power up to 7.5kW or 10hp for 3-phase (200V to 240V AC). This DIN rail mounted soft starter is designed to enable smooth start for simple machines such as conveyors, conveyor belts, pumps, fans, compressors, automatic doors and gates, small cranes and belt-driven machinery. It is 45mm wide, this makes it one of the smallest soft starters on the market; it can be installed nearly everywhere. It features an Integrated bypass, this reduces noise and decreases heat dissipation. Simple setup with only 2 settings: possible to configure by non-specialists. It provides smooth starting for your machinery, avoiding mechanical stresses and extending their service life.
- Starting Torque:
- 30...80 % of starting torque of motor connected directly on the line supply
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Display Type:
- 1 LED Green)starter powered up || 1 LED Yellow)nominal voltage reached
- Discrete Output Type:
- open collector logic LO1 end of starting signal || relay outputs R1A, R1C NO
- Current Consumption:
- 160 A at nominal load
- Width:
- 45 mm
- Height:
- 154 mm
- Phase:
- 3 phase
- Type Of Start:
- start with voltage ramp
- Electrical Connection:
- 4 mm screw clamp terminal - rigid 1 1...10 mm² AWG 8 power circuit || screw connector - rigid without cable end 1 0.5...2.5 mm² AWG 14 control circuit || 4 mm screw clamp terminal - rigid 2 1...6 mm² AWG 10 power circuit || screw connector - rigid
- Ambient Air Temperature For Operation:
- -10-40 °C without derating) || 40-50 °C with current derating of 2 % per °C)
- Product Destination:
- asynchronous motors
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- China Rohs Regulation:
- X
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Supply Frequency:
- 50...60 Hz - 5...5 %
- Icl Starter Rating:
- 32 A
- Discrete Input Type:
- logic LI1, LI2, BOOST) stop, run and boost on start-up functions <= 8 mA 27 kOhm
- Power Dissipation In W:
- 4.5 W at full load and at end of starting || 324.5 W in transient state
- Standards:
- EN/IEC 60947-4-2
- Product Or Component Type:
- soft starter
- Reach Free Of Svhc:
- Yes
- Product Specific Application:
- simple machine
- Operating Position:
- vertical +/- 10 degree
- Net Weight:
- 0.56 kg
- Electromagnetic Compatibility:
- conducted and radiated emissions level B CISPR 11 || conducted and radiated emissions level B IEC 60947-4-2 || damped oscillating waves level 3 IEC 61000-4-12 || electrostatic discharge level 3 IEC 61000-4-2 || EMC immunity level 3 EN 50082-1 || EMC
- Depth:
- 131 mm
- Rohs Exemption Information:
- Yes
- Compatibility Code:
- ATS01N2
- Device Short Name:
- ATS01
- [Uc] Control Circuit Voltage:
- built into the starter
- Pollution Degree:
- 2 EN/IEC 60947-4-2
- Warranty:
- 18 months
- Tightening Torque:
- 1.9-2.5 N.m || 0.5-0.5 N.m
- Function Available:
- integrated bypass
- Discrete Input Logic:
- positive LI1, LI2, BOOST < 5 V <= 0.2 mA > 13 V, >= 0.5 mA
- Supply Voltage Limits:
- 414-528 V
- Operating Altitude:
- <= 3280.84 ft (1000 m) without derating || > 3280.84 ft (1000 m) with current derating of 2.2 % per additional 100 m
- Discrete Output Current:
- 2 A DC-13 || 3 A AC-15
- Marking:
- CE
- Toxic Heavy Metal Free:
- Yes
- [Us] Rated Supply Voltage:
- 460...480 V - 10...10 %
- Maximum Switching Current:
- relay outputs 2 A 250 V AC cos phi = 0.5 20 ms inductive || relay outputs 2 A 30 V DC cos phi = 0.5 20 ms inductive
- Utilisation Category:
- AC-53B EN/IEC 60947-4-2
- Ip Degree Of Protection:
- IP20
- Product Certifications:
- B44.1-96/ASME A17.5 for starter wired to the motor delta terminal || CCC || UL || CSA || C-tick || GOST
- Mercury Free:
- Yes
- Minimum Switching Current:
- 10 mA 6 V DC relay outputs
- Ambient Air Temperature For Storage:
- -25-70 °C EN/IEC 60947-4-2
- Discrete Input Voltage:
- 24...40 V
- Relative Humidity:
- 5-95 % without condensation or dripping water EN/IEC 60068-2-3
- Maximum Horse Power Rating:
- 20 hp, 3 phase 460...480 V
- Network Frequency:
- 47.5...63 Hz
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Shock Resistance:
- 15 gn 11 ms EN/IEC 60068-2-27
- Assembly Style:
- with heat sink
- Deceleration Time Symb:
- adjustable from 1 to 10 s
- Vibration Resistance:
- 1 gn 13-150 Hz)EN/IEC 60068-2-6 || 1.5 mm peak to peak 3-13 Hz)EN/IEC 60068-2-6
- Discrete Output Voltage:
- 24 V 6...30 V) open collector logic
- Starting Time:
- adjustable from 1 to 10 s || 1 s / 50 || 10 s / 5 || 5 s / 10
- Range Of Product:
- Altistart 01
- Output Voltage:
- <= power supply voltage
