Schneider Electric ATS22C17S6 Electronic Soft Starter Control 220V Pow

Schneider Electric ATS22C17S6 Electronic Soft Starter Control 220V Pow

Schneider Electric
SKU:
ATS22C17S6
|
UPC:
3606480167355
$3,084.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

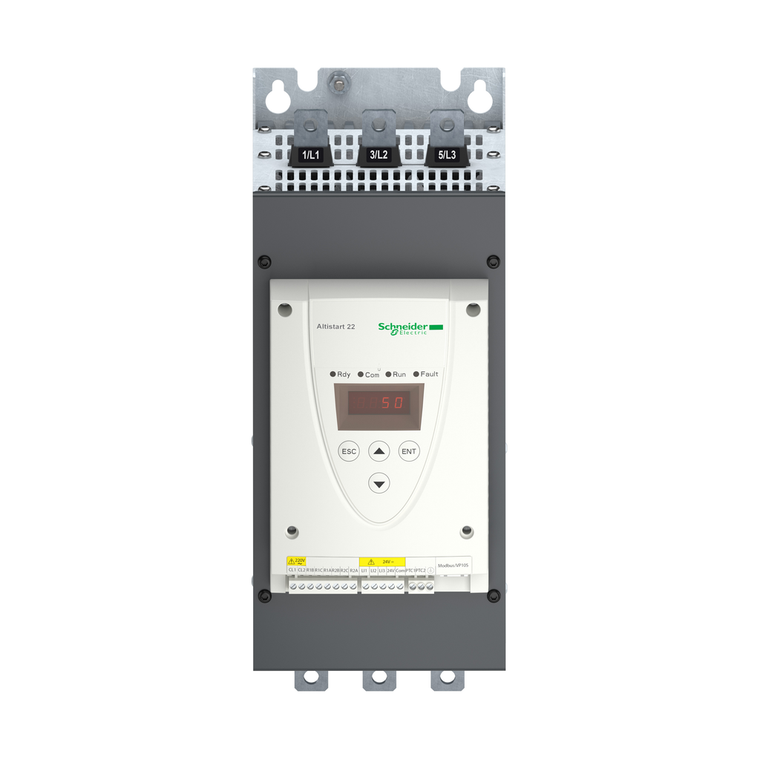

This Altistart 22 soft starter can feed 3-phase asynchronous motors in supply line connection. It has a rating of 170A, a rated power from 45kW to 110kW and a rated voltage from 230V to 500V AC. It is designed for simple and complex machines such as centrifugal and piston pumps, fans, screw compressors and material handling equipment. Slim form factor improves versatility; allows mounting in frames of any kind of machines. It features an Integrated bypass, this reduces noise and decreases heat dissipation. Compatibility with SoMove software allows configurations and settings to be easily transferred, meaning spares can be quickly installed. It provides smooth starting for your machinery, avoiding mechanical stresses and extending their service life.
Additional Information
Communication Data Link:
serial
[Us] Rated Supply Voltage:
230...600 V - 15...10 %
Width:
150 mm
Type Of Start:
start with torque control (current limited to 3.5 In)
Protection Type:
phase failure line || thermal protection motor || thermal protection starter
Discrete Input Number:
3
Phase:
3 phase
Pollution Degree:
level 2 IEC 60664-1
Maximum Switching Current:
5 A 250 V AC resistive 1 relay outputs || 5 A 30 V DC resistive 1 relay outputs || 2 A 250 V AC inductive 0.4 20 ms relay outputs || 2 A 30 V DC inductive 7 ms relay outputs
Function Available:
internal bypass
Relative Humidity:
0-95 % without condensation or dripping water IEC 60068-2-3
Transmission Rate:
4800, 9600 or 19200 bps
Rohs Exemption Information:
Yes
Shock Resistance:
15 gn 11 ms IEC 60068-2-27
Standards:
IEC 60947-4-2
Mercury Free:
Yes
Ambient Air Temperature For Storage:
-25-70 °C
Operating Position:
vertical +/- 10 degree
Product Certifications:
CCC || GOST || CSA || UL || C-tick
Discrete Input Type:
LI1, LI2, LI3) logic, 5 mA 4.3 kOhm
Height:
356 mm
Icl Starter Rating:
170 A connection in the motor supply line for standard applications
[Uc] Control Circuit Voltage:
230 V - 15...10 % 50/60 Hz
Operating Altitude:
<= 3280.84 ft (1000 m) without derating || > 3280.84...< 6561.68 ft (> 1000...< 2000 m) with current derating of 2.2 % per additional 100 m
Output Current:
0.4...1 Icl adjustable
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Ptc Probe Input:
750 Ohm
China Rohs Regulation:
X
Factory Setting Current:
156 A
Type Of Cooling:
forced convection
Ip Degree Of Protection:
IP00
Net Weight:
18 kg
Product Or Component Type:
soft starter
Discrete Input Logic:
positive logic LI1, LI2, LI3 < 5 V <= 2 mA > 11 V, >= 5 mA
Power Dissipation In W:
91 W for standard applications
Discrete Output Type:
relay outputs R1 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O || relay outputs R2 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O
Physical Interface:
RS485 multidrop
Product Destination:
asynchronous motors
Vibration Resistance:
1 gn 13-200 Hz)IEC 60068-2-6 || 1.5 mm 2-13 Hz)IEC 60068-2-6
Product Specific Application:
pumps and fans
Device Connection:
in the motor supply line
Motor Power Kw:
45 kW 230 V || 90 kW 400 V || 90 kW 440 V || 110 kW 500 V
Control Circuit Consumption:
20 W
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Minimum Switching Current:
100 mA 12 V DC relay outputs)
Supply Voltage Limits:
195-660 V
Noise Level:
56 dB
Connector Type:
1 RJ45
Communication Port Protocol:
Modbus
Network Frequency:
45...66 Hz
Marking:
CE
Depth:
229.5 mm
Warranty:
18 months
Discrete Output Number:
2
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Electromagnetic Compatibility:
conducted and radiated emissions level A IEC 60947-4-2 || damped oscillating waves level 3 IEC 61000-4-12 || electrostatic discharge level 3 IEC 61000-4-2 || immunity to electrical transients level 4 IEC 61000-4-4 || immunity to radiated radio-electr
Installed Device:
31
Component Name:
ATS22
Discrete Input Voltage:
24 V <= 30 V
Assembly Style:
with heat sink
Range Of Product:
Altistart 22
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Supply Frequency:
50...60 Hz - 10...10 %
Ambient Air Temperature For Operation:
-10-40 °C without derating) || 40-60 °C with current derating 2.2 % per °C)
Utilisation Category:
AC-53A
