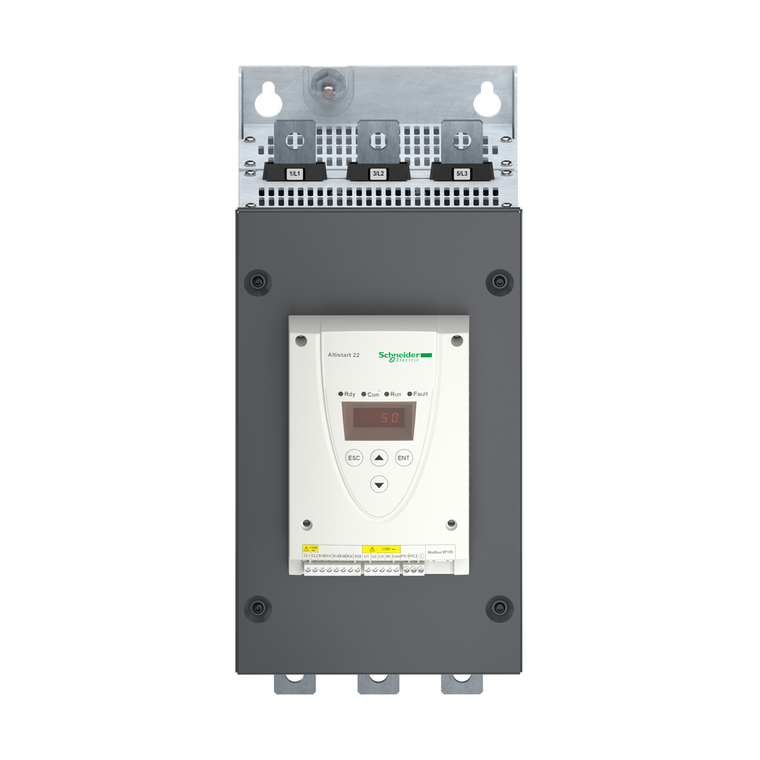

Schneider Electric ATS22C21S6U Electronic Soft Starter Control 110V Pow

(No reviews yet) Write a Review

Write a Review

Schneider Electric ATS22C21S6U Electronic Soft Starter Control 110V Pow

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ATS22C21S6U

UPC:

3606480211195

MPN:

Condition:

New

China Rohs Regulation:

X

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

[Uc] Control Circuit Voltage:

110 V - 15...10 % 50/60 Hz

Ambient Air Temperature For Storage:

-25-70 °C

Ambient Air Temperature For Operation:

-10-40 °C without derating) || 40-60 °C with current derating 2.2 % per °C)

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Function Available:

internal bypass

[Us] Rated Supply Voltage:

208...600 V - 15...10 %

Product Specific Application:

pumps and fans

Discrete Input Voltage:

110 V <= 121 V

Relative Humidity:

0-95 % without condensation or dripping water EN/IEC 60068-2-3

Assembly Style:

with heat sink

Connector Type:

1 RJ45

Minimum Switching Current:

100 mA 12 V DC relay outputs)

Warranty:

18 months

Vibration Resistance:

1 gn 13-200 Hz)EN/IEC 60068-2-6 || 1.5 mm 2-13 Hz)EN/IEC 60068-2-6

Product Destination:

asynchronous motors

Supply Voltage Limits:

177-660 V

Control Circuit Consumption:

20 W

Net Weight:

33 kg

Product Or Component Type:

soft starter

Type Of Cooling:

forced convection

Depth:

299 mm

Device Connection:

in the motor supply line

Shock Resistance:

15 gn 11 ms EN/IEC 60068-2-27

Protection Type:

phase failure line || thermal protection motor || thermal protection starter

Discrete Output Type:

relay outputs R1 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O || relay outputs R2 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O

Ip Degree Of Protection:

IP00

Factory Setting Current:

180 A

Discrete Output Number:

2

Rohs Exemption Information:

Yes

Supply Frequency:

50...60 Hz - 10...10 %

Noise Level:

56 dB

Marking:

CE

Physical Interface:

RS485 multidrop

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Discrete Input Number:

3

Electromagnetic Compatibility:

conducted and radiated emissions level A IEC 60947-4-2 || damped oscillating waves level 3 IEC 61000-4-12 || electrostatic discharge level 3 IEC 61000-4-2 || immunity to electrical transients level 4 IEC 61000-4-4 || immunity to radiated radio-electr

Height:

425 mm

Type Of Start:

start with torque control (current limited to 3.5 In)

Pollution Degree:

level 2 IEC 60664-1

Range Of Product:

Altistart 22

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Width:

206 mm

Discrete Input Logic:

positive logic LI1, LI2, LI3 < 20 V <= 15 mA > 79 V, <= 2 mA

Output Current:

0.4...1 Icl adjustable

Communication Data Link:

serial

Standards:

EN/IEC 60947-4-2

Product Certifications:

CSA || UL || CCC || C-tick || GOST

Communication Port Protocol:

Modbus

Mercury Free:

Yes

Transmission Rate:

4800, 9600 or 19200 bps

Operating Position:

vertical +/- 10 degree

Icl Starter Rating:

210 A connection in the motor supply line for standard applications

Power Dissipation In W:

117 W for standard applications

Component Name:

ATS22

Network Frequency:

45...66 Hz

Utilisation Category:

AC-53A

Maximum Switching Current:

5 A 250 V AC resistive 1 relay outputs || 5 A 30 V DC resistive 1 relay outputs || 2 A 250 V AC inductive 0.4 20 ms relay outputs || 2 A 30 V DC inductive 7 ms relay outputs

Ptc Probe Input:

750 Ohm

Maximum Horse Power Rating:

150 hp 460 V || 200 hp 575 V || 60 hp 208 V || 75 hp 230 V

Installed Device:

31

Operating Altitude:

<= 3280.84 ft (1000 m) without derating || > 3280.84...< 6561.68 ft (> 1000...< 2000 m) with current derating of 2.2 % per additional 100 m

Phase:

3 phase

Discrete Input Type:

LI1, LI2, LI3) logic, 5 mA 20 kOhm
