Schneider Electric ATS22C48Q Soft Starter 480A 440V 230V Ctrl

Schneider Electric ATS22C48Q Soft Starter 480A 440V 230V Ctrl

Schneider Electric
SKU:
ATS22C48Q
|
UPC:
3606480211294
$6,394.50
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

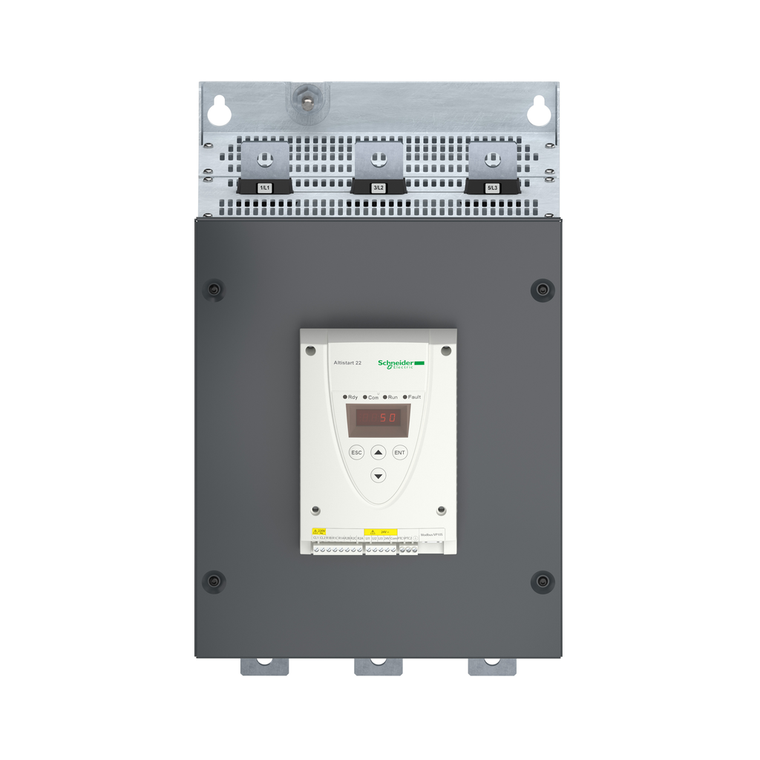

This Altistart 22 soft starter can feed 3-phase asynchronous motors in supply line or delta connection. It has a rating of 480A and 230V to 440V, a rated power up to 250kW (400V to 440V in supply line) and up to 400kW (440V in motor delta connection). It is designed for simple and complex machines such as centrifugal and piston pumps, fans, screw compressors and material handling equipment. Slim form factor improves versatility; allows mounting in frames of any kind of machines. It features an Integrated bypass, this reduces noise and decreases heat dissipation. Compatibility with SoMove software allows configurations and settings to be easily transferred, meaning spares can be quickly installed. It provides smooth starting for your machinery, avoiding mechanical stresses and extending their service life.
Additional Information
Mercury Free:
Yes
Transmission Rate:
4800, 9600 or 19200 bps
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Rohs Exemption Information:
Yes
Protection Type:
phase failure line || thermal protection motor || thermal protection starter
Type Of Cooling:
forced convection
Width:
304 mm
Ip Degree Of Protection:
IP00
Standards:
EN/IEC 60947-4-2
Range Of Product:
Altistart 22
Product Specific Application:
pumps and fans
Connector Type:
1 RJ45
Product Certifications:
GOST || CSA || UL || C-tick || CCC
Ambient Air Temperature For Operation:
-10-40 °C without derating) || 40-60 °C with current derating 2.2 % per °C)
Electromagnetic Compatibility:
conducted and radiated emissions level A IEC 60947-4-2 || damped oscillating waves level 3 IEC 61000-4-12 || electrostatic discharge level 3 IEC 61000-4-2 || immunity to electrical transients level 4 IEC 61000-4-4 || immunity to radiated radio-electr
Marking:
CE
Utilisation Category:
AC-53A
Product Destination:
asynchronous motors
Supply Frequency:
50...60 Hz - 10...10 %
Depth:
339.7 mm
Warranty:
18 months
Type Of Start:
start with torque control (current limited to 3.5 In)
[Us] Rated Supply Voltage:
230...440 V - 15...10 %
Installed Device:
31
Discrete Input Voltage:
24 V <= 30 V
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Motor Power Kw:
132 kW 230 V || 250 kW 400 V || 250 kW 440 V
Communication Port Protocol:
Modbus
Relative Humidity:
0-95 % without condensation or dripping water EN/IEC 60068-2-3
Net Weight:
50 kg
Motor Starter Type:
soft starter
Device Connection:
in the motor supply line || to the motor delta terminals
Discrete Input Logic:
positive logic LI1, LI2, LI3 < 5 V <= 2 mA > 11 V, >= 5 mA
Power Range:
110-220 kW 200-240 V 3 phase || 250-500 kW 380-440 V 3 phase
Factory Setting Current:
437 A
Operating Altitude:
<= 3280.84 ft (1000 m) without derating || > 3280.84...< 6561.68 ft (> 1000...< 2000 m) with current derating of 2.2 % per additional 100 m
Ptc Probe Input:
750 Ohm
Pollution Degree:
level 2 IEC 60664-1
Power Dissipation In W:
218 W for standard applications
Product Or Component Type:
soft starter
Supply Voltage Limits:
195-484 V
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Network Frequency:
45...66 Hz
Vibration Resistance:
1 gn 13-200 Hz)EN/IEC 60068-2-6 || 1.5 mm 2-13 Hz)EN/IEC 60068-2-6
Phase:
3 phase
Control Circuit Consumption:
20 W
Maximum Switching Current:
5 A 250 V AC resistive 1 relay outputs || 5 A 30 V DC resistive 1 relay outputs || 2 A 250 V AC inductive 0.4 20 ms relay outputs || 2 A 30 V DC inductive 7 ms relay outputs
Height:
455 mm
Assembly Style:
with heat sink
Communication Data Link:
serial
Discrete Input Number:
3
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Discrete Output Type:
relay outputs R1 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O || relay outputs R2 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O
Noise Level:
56 dB
Shock Resistance:
15 gn 11 ms EN/IEC 60068-2-27
Icl Starter Rating:
480 A connection in the motor supply line for standard applications
Minimum Switching Current:
100 mA 12 V DC relay outputs)
[Uc] Control Circuit Voltage:
230 V - 15...10 % 50/60 Hz
Function Available:
internal bypass
Discrete Output Number:
2
Physical Interface:
RS485 multidrop
Ambient Air Temperature For Storage:
-25-70 °C
Operating Position:
vertical +/- 10 degree
Output Current:
0.4...1 Icl adjustable
Discrete Input Type:
LI1, LI2, LI3) logic, 5 mA 4.3 kOhm
Component Name:
ATS22
China Rohs Regulation:
X
Brochure:
View
Catalog:
View
Datasheet:
View
