Schneider Electric ATS22D17S6U Electronic Soft Starter Control 110V Pow

(No reviews yet) Write a Review

Write a Review

Schneider Electric

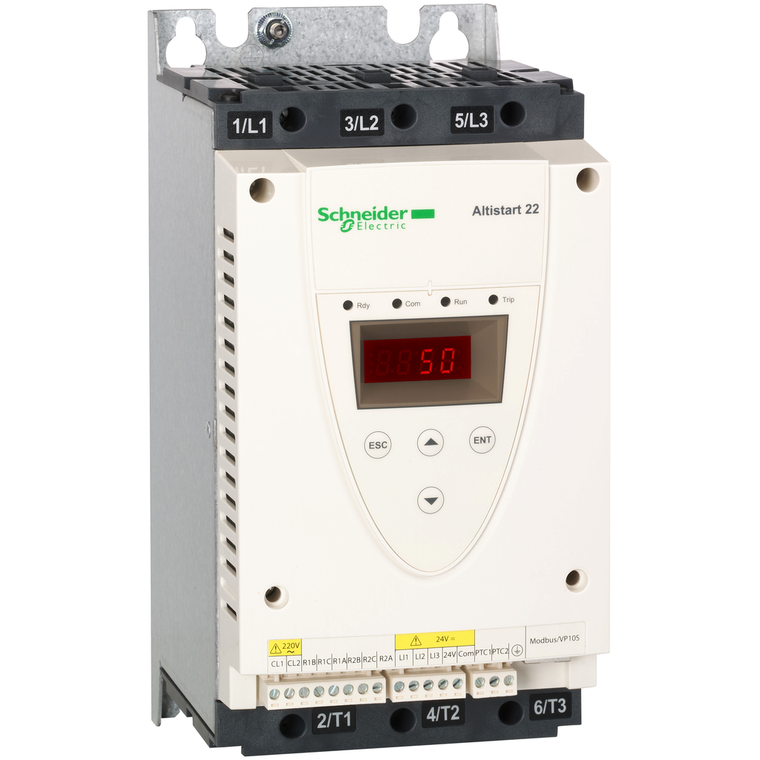

Schneider Electric ATS22D17S6U Electronic Soft Starter Control 110V Pow

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ATS22D17S6U

UPC:

3606480167379

MPN:

Condition:

New

Control Circuit Consumption:

20 W

[Us] Rated Supply Voltage:

208...600 V - 15...10 %

Physical Interface:

RS485 multidrop

Transmission Rate:

4800, 9600 or 19200 bps

Utilisation Category:

AC-53A

Communication Port Protocol:

Modbus

Pollution Degree:

level 2 IEC 60664-1

Depth:

169 mm

Discrete Output Number:

2

Installed Device:

31

[Uc] Control Circuit Voltage:

110 V - 15...10 % 50/60 Hz

Net Weight:

7 kg

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Product Specific Application:

pumps and fans

Communication Data Link:

serial

Rohs Exemption Information:

Yes

Marking:

CE

Width:

130 mm

Product Or Component Type:

soft starter

China Rohs Regulation:

X

Icl Starter Rating:

17 A connection in the motor supply line for standard applications

Ambient Air Temperature For Operation:

-10-40 °C without derating) || 40-60 °C with current derating 2.2 % per °C)

Component Name:

ATS22

Type Of Cooling:

forced convection

Ip Degree Of Protection:

IP20

Discrete Input Number:

3

Discrete Input Type:

LI1, LI2, LI3) logic, 5 mA 20 kOhm

Discrete Output Type:

relay outputs R1 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O || relay outputs R2 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O

Phase:

3 phase

Minimum Switching Current:

100 mA 12 V DC relay outputs)

Noise Level:

45 dB

Maximum Horse Power Rating:

10 hp 460 V || 15 hp 575 V || 3 hp 208 V || 5 hp 230 V

Discrete Input Logic:

positive logic LI1, LI2, LI3 < 20 V <= 15 mA > 79 V, <= 2 mA

Discrete Input Voltage:

110 V <= 121 V

Standards:

IEC 60947-4-2

Supply Voltage Limits:

177-660 V

Function Available:

internal bypass

Protection Type:

phase failure line || thermal protection motor || thermal protection starter

Electromagnetic Compatibility:

conducted and radiated emissions level A IEC 60947-4-2 || damped oscillating waves level 3 IEC 61000-4-12 || electrostatic discharge level 3 IEC 61000-4-2 || immunity to electrical transients level 4 IEC 61000-4-4 || immunity to radiated radio-electr

Operating Position:

vertical +/- 10 degree

Factory Setting Current:

14 A

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Operating Altitude:

<= 3280.84 ft (1000 m) without derating || > 3280.84...< 6561.68 ft (> 1000...< 2000 m) with current derating of 2.2 % per additional 100 m

Vibration Resistance:

1 gn 13-200 Hz)IEC 60068-2-6 || 1.5 mm 2-13 Hz)IEC 60068-2-6

Power Dissipation In W:

39 W for standard applications

Connector Type:

1 RJ45

Network Frequency:

45...66 Hz

Product Destination:

asynchronous motors

Range Of Product:

Altistart 22

Type Of Start:

start with torque control (current limited to 3.5 In)

Height:

265 mm

Maximum Switching Current:

5 A 250 V AC resistive 1 relay outputs || 5 A 30 V DC resistive 1 relay outputs || 2 A 250 V AC inductive 0.4 20 ms relay outputs || 2 A 30 V DC inductive 7 ms relay outputs

Device Connection:

in the motor supply line

Output Current:

0.4...1 Icl adjustable

Ptc Probe Input:

750 Ohm

Assembly Style:

with heat sink

Warranty:

18 months

Supply Frequency:

50...60 Hz - 10...10 %

Product Certifications:

UL || GOST || CCC || CSA || C-tick

Relative Humidity:

0-95 % without condensation or dripping water IEC 60068-2-3

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Shock Resistance:

15 gn 11 ms IEC 60068-2-27

Ambient Air Temperature For Storage:

-25-70 °C

Mercury Free:

Yes
