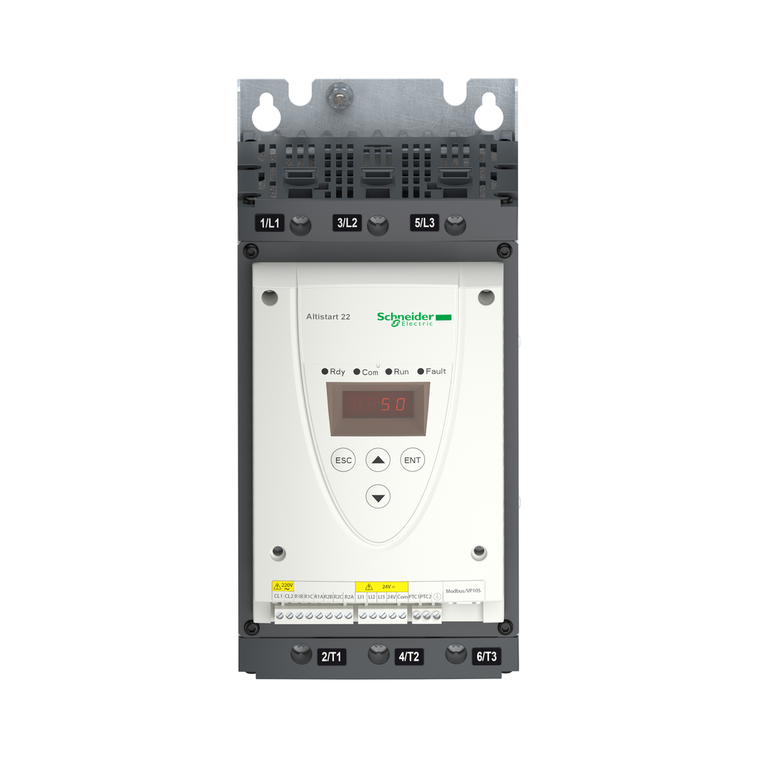

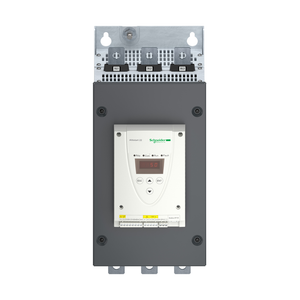

Schneider Electric ATS22D75S6U Electronic Soft Starter Control 110V Pow

(No reviews yet) Write a Review

Write a Review

Schneider Electric ATS22D75S6U Electronic Soft Starter Control 110V Pow

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ATS22D75S6U

UPC:

3606480167416

MPN:

Condition:

New

[Us] Rated Supply Voltage:

208...600 V - 15...10 %

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Ambient Air Temperature For Operation:

-10-40 °C without derating) || 40-60 °C with current derating 2.2 % per °C)

Ambient Air Temperature For Storage:

-25-70 °C

Width:

145 mm

Connector Type:

1 RJ45

Supply Voltage Limits:

177-660 V

Communication Data Link:

serial

Discrete Input Logic:

positive logic LI1, LI2, LI3 < 20 V <= 15 mA > 79 V, <= 2 mA

Installed Device:

31

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Rohs Exemption Information:

Yes

Height:

295 mm

Transmission Rate:

4800, 9600 or 19200 bps

China Rohs Regulation:

X

Discrete Input Type:

LI1, LI2, LI3) logic, 5 mA 20 kOhm

Device Connection:

in the motor supply line

Minimum Switching Current:

100 mA 12 V DC relay outputs)

Range Of Product:

Altistart 22

Supply Frequency:

50...60 Hz - 10...10 %

Type Of Start:

start with torque control (current limited to 3.5 In)

Discrete Input Number:

3

Protection Type:

phase failure line || thermal protection motor || thermal protection starter

Phase:

3 phase

Product Certifications:

C-tick || CCC || UL || CSA || GOST

Factory Setting Current:

65 A

Communication Port Protocol:

Modbus

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Power Dissipation In W:

63 W for standard applications

Assembly Style:

with heat sink

Function Available:

internal bypass

Relative Humidity:

0-95 % without condensation or dripping water IEC 60068-2-3

Discrete Output Type:

relay outputs R1 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O || relay outputs R2 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O

Standards:

IEC 60947-4-2

Maximum Switching Current:

5 A 250 V AC resistive 1 relay outputs || 5 A 30 V DC resistive 1 relay outputs || 2 A 250 V AC inductive 0.4 20 ms relay outputs || 2 A 30 V DC inductive 7 ms relay outputs

Discrete Output Number:

2

Control Circuit Consumption:

20 W

Electromagnetic Compatibility:

conducted and radiated emissions level A IEC 60947-4-2 || damped oscillating waves level 3 IEC 61000-4-12 || electrostatic discharge level 3 IEC 61000-4-2 || immunity to electrical transients level 4 IEC 61000-4-4 || immunity to radiated radio-electr

Component Name:

ATS22

Icl Starter Rating:

75 A connection in the motor supply line for standard applications

Shock Resistance:

15 gn 11 ms IEC 60068-2-27

Network Frequency:

45...66 Hz

[Uc] Control Circuit Voltage:

110 V - 15...10 % 50/60 Hz

Operating Altitude:

<= 3280.84 ft (1000 m) without derating || > 3280.84...< 6561.68 ft (> 1000...< 2000 m) with current derating of 2.2 % per additional 100 m

Pollution Degree:

level 2 IEC 60664-1

Depth:

207 mm

Vibration Resistance:

1 gn 13-200 Hz)IEC 60068-2-6 || 1.5 mm 2-13 Hz)IEC 60068-2-6

Marking:

CE

Net Weight:

12 kg

Product Destination:

asynchronous motors

Operating Position:

vertical +/- 10 degree

Physical Interface:

RS485 multidrop

Type Of Cooling:

forced convection

Warranty:

18 months

Product Specific Application:

pumps and fans

Noise Level:

45 dB

Ptc Probe Input:

750 Ohm

Ip Degree Of Protection:

IP20

Utilisation Category:

AC-53A

Product Or Component Type:

soft starter

Discrete Input Voltage:

110 V <= 121 V

Output Current:

0.4...1 Icl adjustable

Maximum Horse Power Rating:

20 hp 208 V || 25 hp 230 V || 50 hp 460 V || 60 hp 575 V

Mercury Free:

Yes
